Creative Cedar Designs Sky View 3101 - Phase 12: Tarp Supports Lunch Table Upright

Phase 12:
27

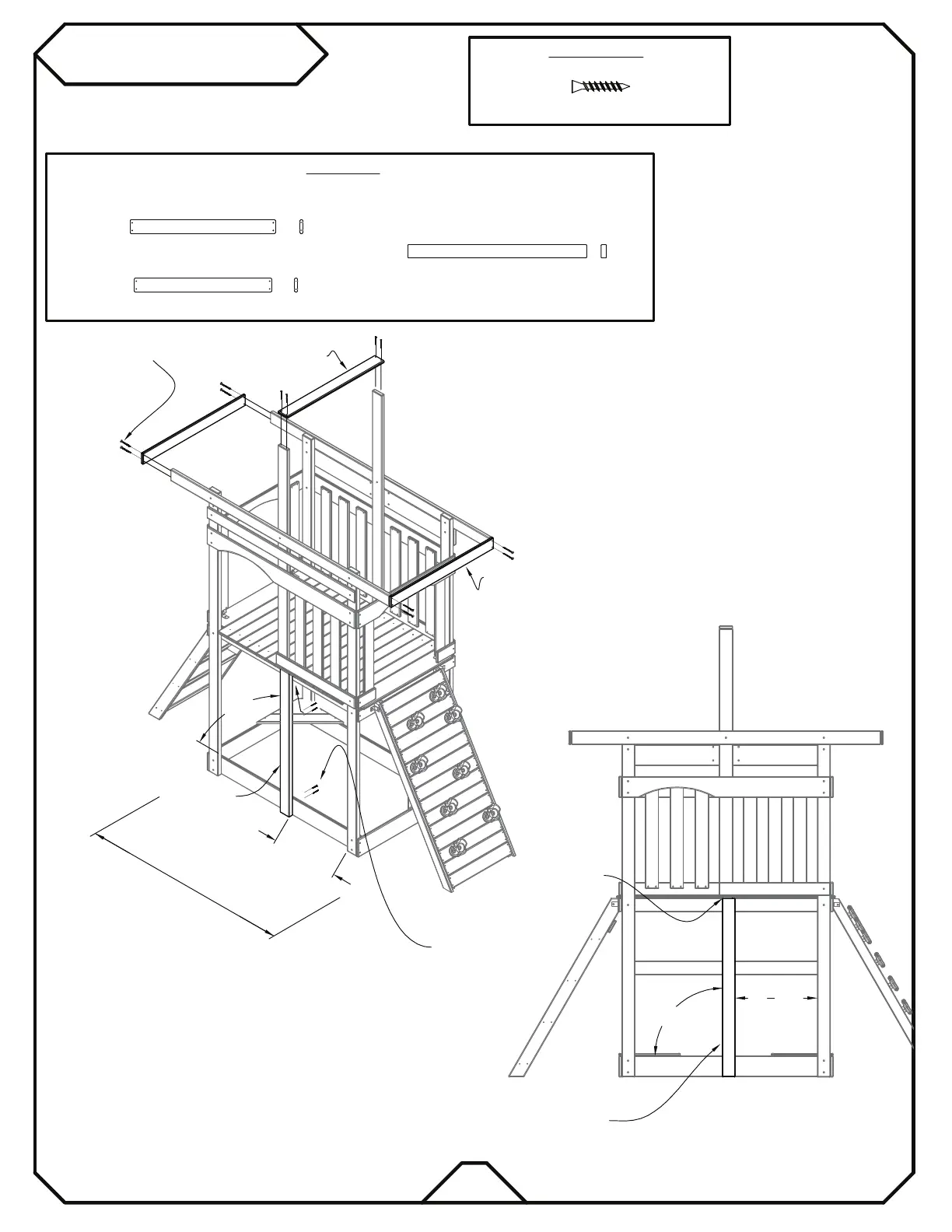

TARP SUPPORTS
LUNCH TABLE UPRIGHT
Phase Parts
Phase Hardware
WA004-10
WA003-10
WE002-10
21 1/4" I.D.
ATTACH THROUGH
GROUND BOARD
INTO 'WE002-10'
1 1/2" T-20 Deck Screws
(16)
(2) 11/16 X 3 1/2 X 37 1/2 TARP SUPPORT - WA003-10
(1) 11/16 X 3 1/2 X 35 1/2 TARP SUPPORT - WA004-10
(1) 1 3/8 X 3 3/8 X 46 1/4 TABLE UPRIGHT - WE002-10
90°
FIT
UNDER FLOOR
WE002-10
DECK SCREWS
21
1
4
I.D.
90°
S
I
D
E
3
