2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
permit the user to navigate through the menus and also to control the brightness of
the display backlight. Below the display are six menu function buttons. These
buttons offer extended features of the PRO2. For details, refer to "Programming the
LCD Screen (PRO2 only)" on page 34.
Main Menu
(Default LCD Display)

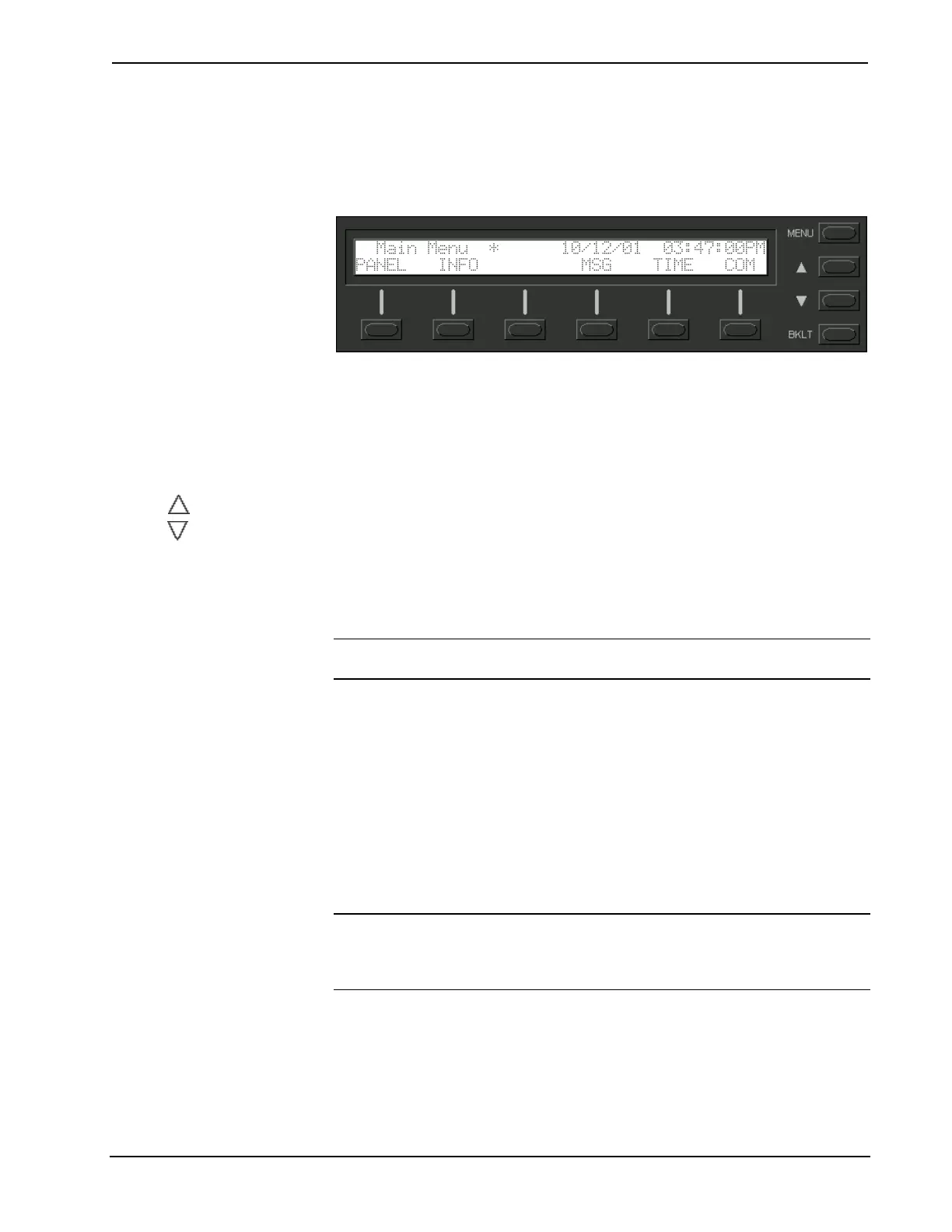

LCD Screen with Menu Selection and Menu Function Buttons
Menu Selection Buttons
MENU
This menu selection button functions as a return and will eventually bring the screen
display to the menu default state (Main Menu).
These buttons scroll the listed information UP and DOWN.
BKLT
This button adjusts the brightness of the LCD backlight and the front panel LEDs.
Menu Function Buttons
PANEL
NOTE: If the unit does not have a loaded program with front panel screens defined,
the PANEL menu function does not appear on the Main Menu.
This menu function button displays a programmable interface offering command
text, indirect text, and hierarchical screen structure. The menu contents are subject to
programming and an example of this display is provided in "Programming the LCD
Screen (PRO2 only)" on page 34.
INFO
This button displays the default Info Menu, shown after this paragraph. System
information, including the loaded SIMPL program version (Rems), hardware specs
such as types of expansion cards installed in the card slots (HWare), the Cresnet
devices detected (Net), the Ops version (Ops), and the communication settings
(Com), is displayed.
NOTE: The information within each of the commands displayed in the Info Menu
may exceed the 40 characters permitted per line. If this occurs, use the two right-
most menu function buttons to scroll left and right. Refer to the two arrows shown
beneath the Info Menu illustrated after this note for location and identification.
10 • Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide - DOC. 5957A
