Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System

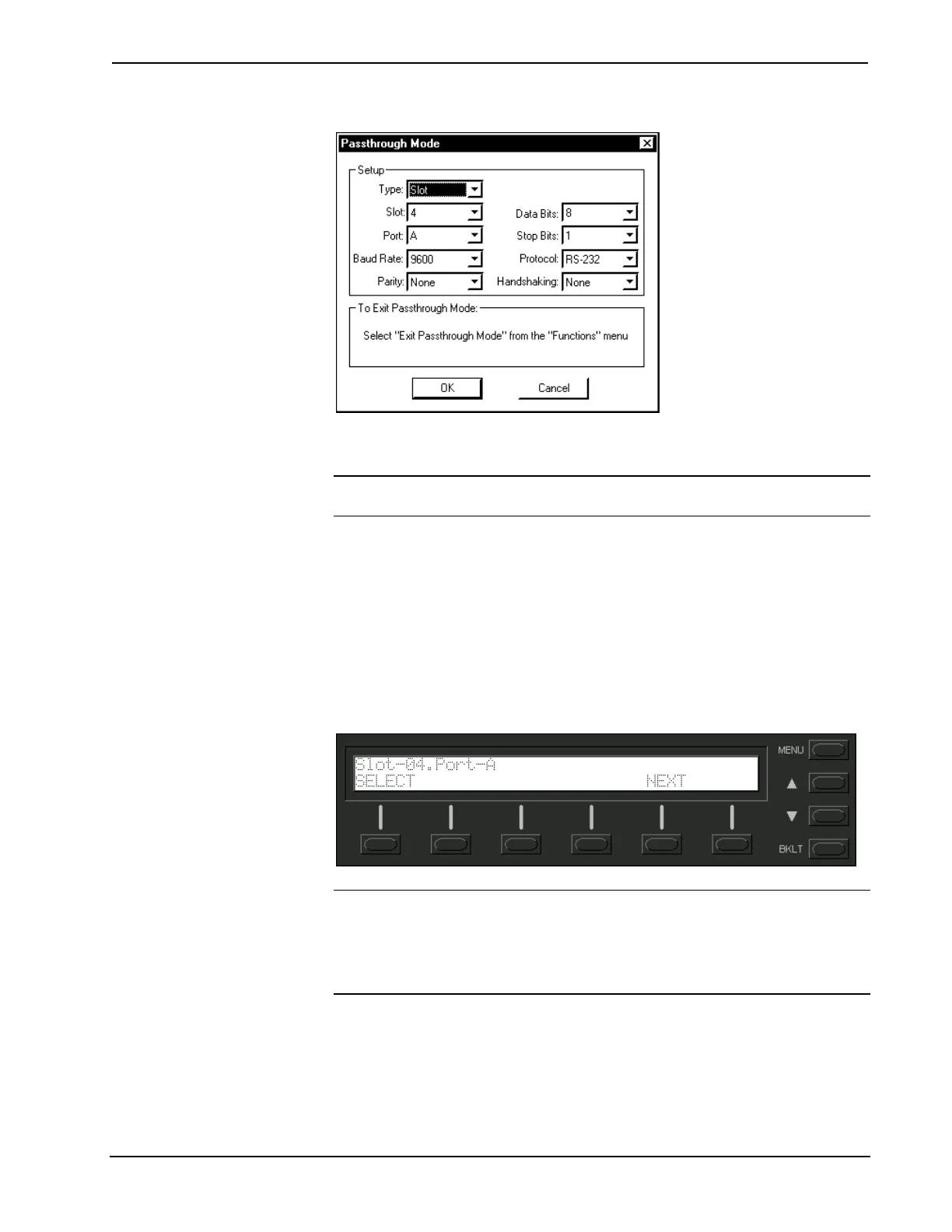

“Passthrough Mode” Window
COM Analyzer
NOTE: Only COM-type devices and cards in the SIMPL Windows program that are
active (not commented out) are monitored.
Depressing the COM menu function button from the front panel Main Menu (default
front panel page) displays a listing of all devices and cards that can be monitored.
The listing follows the same order as the system tree in Configuration Manager. The
top line of the LCD screen provides the COM-type device or card and its port. In the
sample shown below, the first active port in the system is the built-in card, port A.
The bottom line of the LCD screen provides commands. The user can SELECT the
COM port shown on the top line or use NEXT or PREV (appears after scrolling
down from the top of the list) to scroll through the entire list of all devices and cards
that can be monitored.
Sample of COM-Type Device or Card Listing
NOTE: The PREV command only appears after advancing past the first COM-type
device or card in the list.
NOTE: The up and down menu selection buttons to the right of the LCD screen
may be used in lieu of the NEXT and PREV menu function buttons.
The data transmitted and received when communicating with another device can be
monitored in three formats. Depressing the SELECT menu function button displays
the Format Type screen, shown after this paragraph. Select the BIN, ASCII, or HEX
menu function button to determine the appropriate format.
Operations Guide - DOC. 5957A Integrated Dual Bus Control System: AV2 & PRO2 • 41

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
