2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2

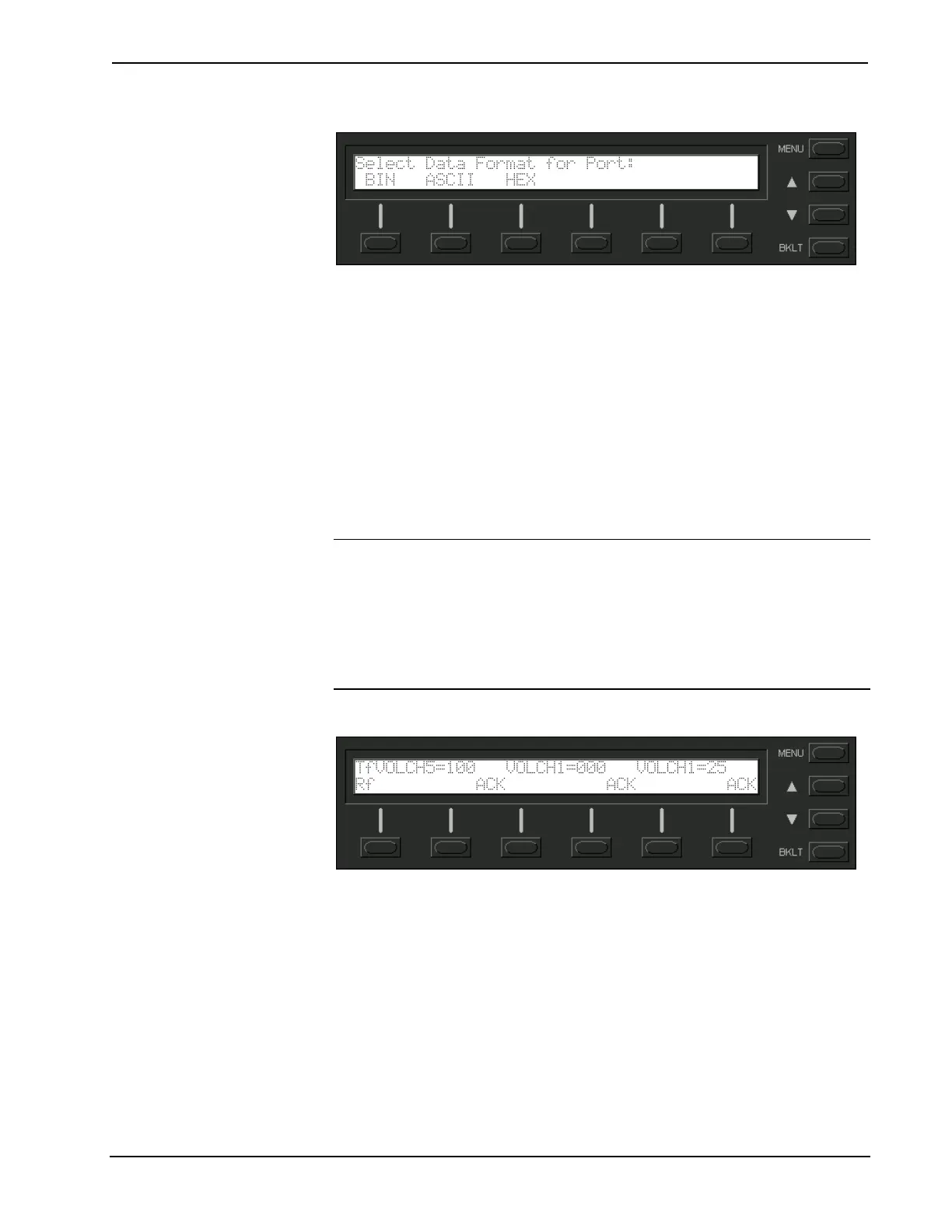

Select Format Type Screen
Once the BIN, ASCII, or HEX menu function button is selected, the display
provides the T/R Screen. The Data Menu in the CNX Series control system
contained a RESET and REFRESH menu function button. These buttons are not
necessary for the PRO2, because the data is always 'live'. A buffer constantly records
and recycles the data. The buffer is empty when the COM port is first selected and
remains empty until data is transmitted or received.
When the port is active, data information races across the T/R Screen; a sample is
shown after this paragraph. The transmission and reception traffic is displayed in
alternating sequence to facilitate diagnostics. Depressing any of the six-menu
function buttons 'freezes' the data information. The up and down menu selection
buttons to the right of the LCD screen may be used to advance or reverse the frozen
data. Compare the data to expected manufacturer's protocol for the communicating
device.
NOTE: Data in the 'freeze' state is denoted by a lower case letter (f) in front on the
T and R in the T/R/Screen.
NOTE: Any of the six-menu function buttons toggles the 'freeze' state.
NOTE: The buffer recycles data even when in the 'freeze' state. When the screen is
unfrozen, the display jumps to the end of the buffer.
T/R Screen with Frozen Sample
42 • Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide - DOC. 5957A
