Thermostats Crestron CHV-TSTAT and CHV-THSTAT

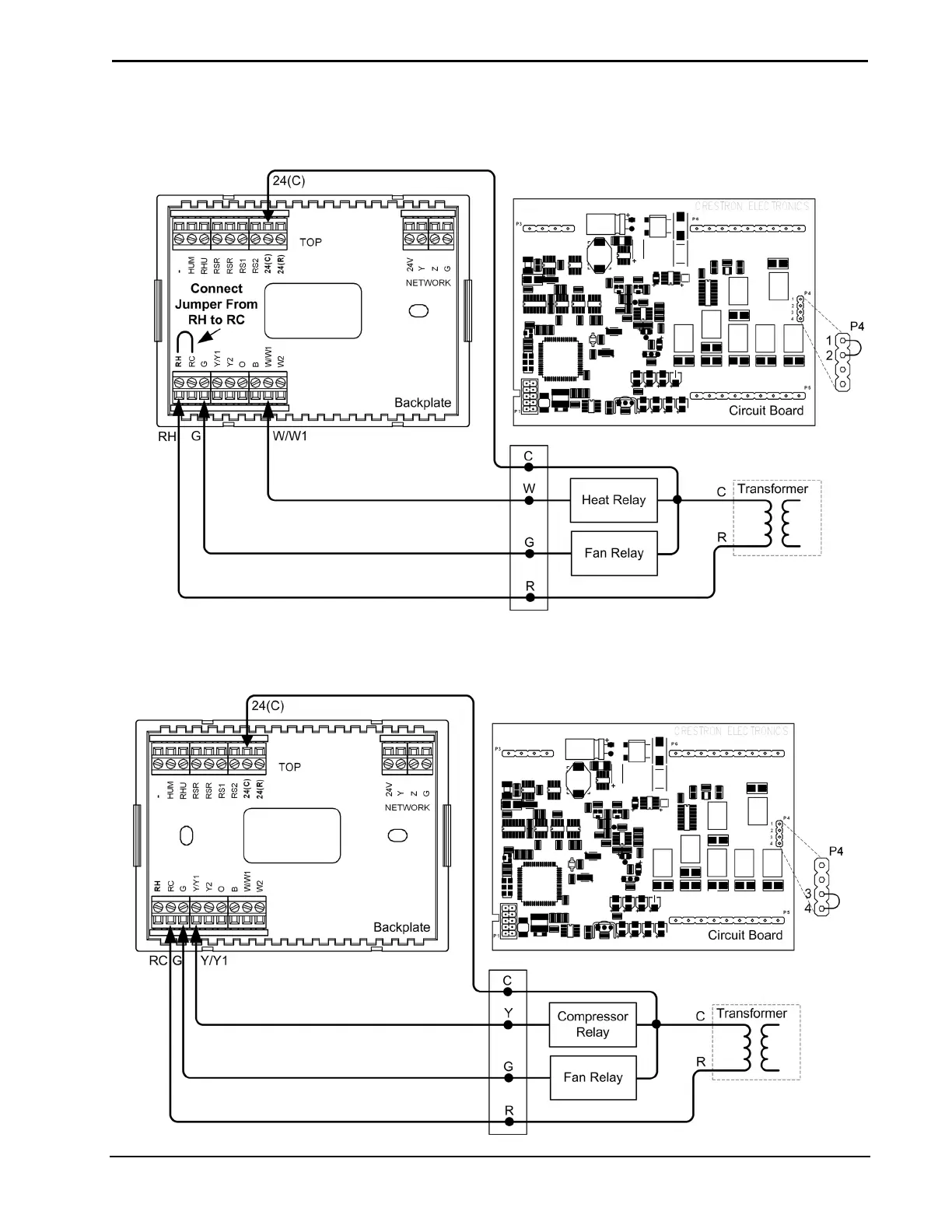

Single Stage Heat with Fan Control
Single Stage Heat with Fan Control – P4 Connects Pins 1 and 2 – Additional Jumper Connects RH to RC
Single Stage Cool Only
Single Stage Cool Only – P4 Jumper Connects Pins 3 and 4
14 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163C
