Thermostats Crestron CHV-TSTAT and CHV-THSTAT
Slab 5B – 1 Stage Heat/Cool with Floor Warming
(Heat Pump)

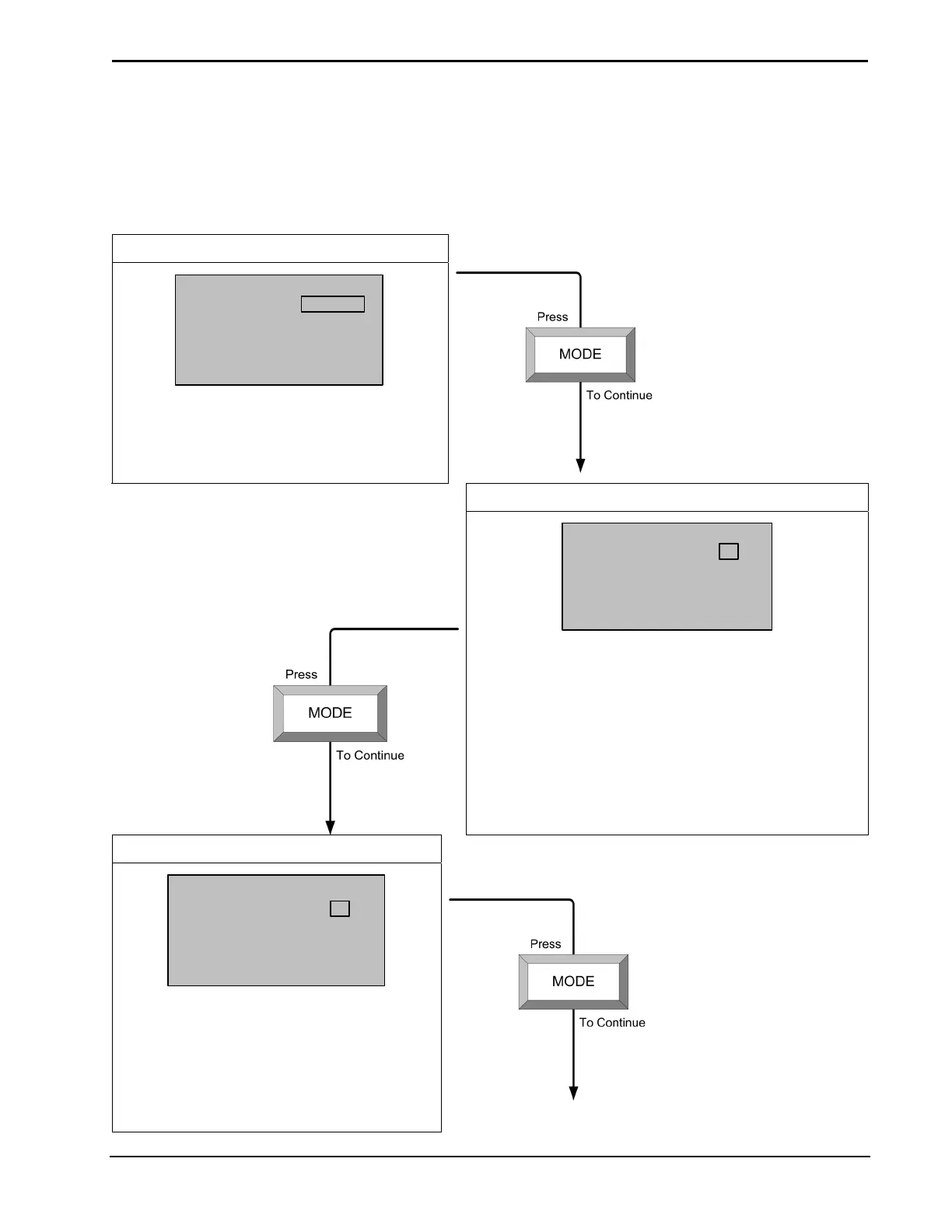

Press and hold the MODE and VIEW buttons simultaneously for five seconds to
enter setup mode. Slab mode 5B requires a slab remote sensor and an air temperature
sensor.
SYSTEM SETUP
SETUP: SYSTEM
Heat Sys Type:
Slab Reg:
HP/AUX or DF:
SLAB 5B
6
HP/Aux
1 STG SPACE HEAT - COOL W/
FLOOR WARMING (HEATPUMP)
SLAB=W1 HT/CL=Y1/O/G
Heat System Type: SLAB 5B
Slab Regulation: (1 – 6)
1 = Narrow temperature regulation
6 = Wide temperature regulation
Heat Pump/Aux or Dual Fuel
SYSTEM PERFORMANCE
SETUP: SYSTEM PERF
Heat Anticipator:
Cool Anticipator:
Intrstg Differential:
HP Balance Pt:
AUX Balance Pt:
5
6
0.5
0
Off
1
0
Anticipators: (valid selections are 1 through 6) Low
number = more frequent cycles and faster response
(tighter regulation). High number = less frequent cycles
and slower response (looser regulation).
Interstage Differential: 0.5 to 8.0ºF. The proportional
temperature error to trigger the second (Aux) stage.
HP Balance Point - Minimum outdoor temperature at
which the heat pump runs (requires outdoor sensor).
AUX Balance Point - Maximum outdoor temperature at
which Aux Heat System supplements the heat pump
(requires outdoor sensor).
HUMIDIFIER OPTIONS
SETUP: HUM OPTS
Show Hum Mode Pg:
Show Hum View Pg:
Cold Weather Comp:
Y
Y
N
SYSTEM ENABLE/DISABLE
PAGE
Show Hum Mode Pg and Show Hum View
Pg: Select Y to show humidity page in
normal operation. Cold Weather
Compensation: Modifies the humidifier
output to prevent condensation on the
windows. Requires an outdoor temperature
source (CHV-THSAT, or CHV-TSTAT with
CHV-RTHS, CHV-RTS, or CHV-RSS).
Continued on following page.
52 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163C
