Crestron CHV-THSTAT - Slab 5 A: 1 Stage Heat;Cool Configuration

Crestron CHV-TSTAT and CHV-THSTAT Thermostats
Slab 5A – 1 Stage Heat/Cool with Floor Warming

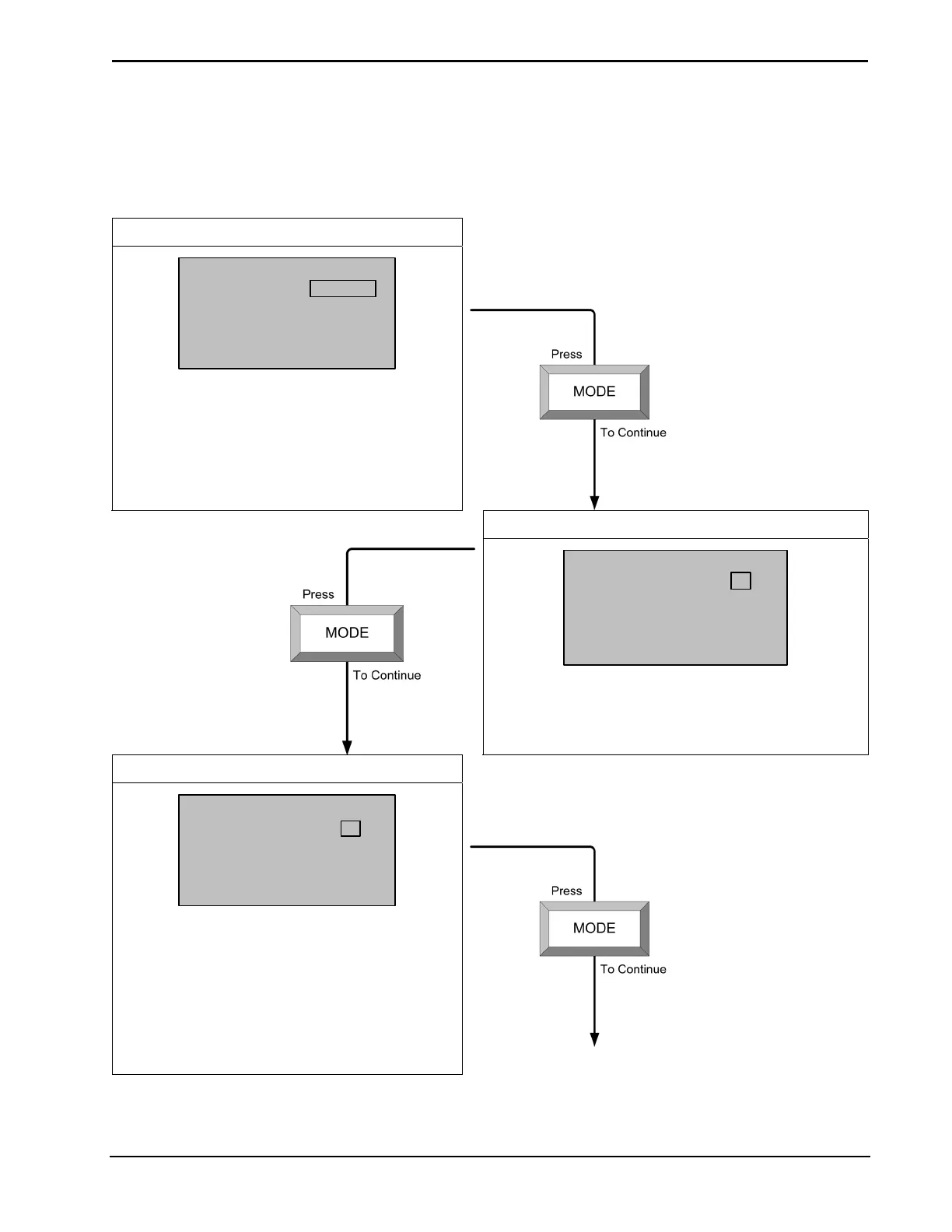

Press and hold the MODE and VIEW buttons simultaneously for five seconds to
enter setup mode.
SYSTEM SETUP
SETUP: SYSTEM
Heat Sys Type:
Slab Reg:
SLAB 5A
2
1 STG SPACE HEAT-COOL
WITH FLOOR WARMING
SLAB (W1) HT=W2 CL=Y1/G
Heat System Type: SLAB 5A
Slab Regulation: (1 – 6)
1 = Narrow temperature regulation
6 = Wide temperature regulation
NOTE: Slab mode 5A requires a slab remote
sensor and an air temperature sensor.
SYSTEM PERFORMANCE
SETUP: SYSTEM PERF
Heat Anticipator:
Cool Anticipator:
5
2
Anticipators: (valid selections are 1 through 6) Low
number = more frequent cycles and faster response
(tighter regulation). High number = less frequent
cycles and slower response (looser regulation).
HUMIDIFIER OPTIONS
SETUP: HUM OPTS
Show Hum Mode Pg:
Show Hum View Pg:
Cold Weather Comp:
Y
Y
N
SYSTEM ENABLE/DISABLE
PAGE
Show Hum Mode Pg and Show Hum View
Pg: Select Y to show humidity page in normal
operation.
Cold Weather Compensation: Modifies the
humidifier output to prevent condensation on the
windows. Requires an outdoor temperature
source (CHV-THSAT, or CHV-TSTAT with
CHV-RTHS, CHV-RTS, or CHV-RSS).
Continued on the following page.
Operations and Installation Guide – DOC. 8163C Thermostats: CHV-TSTAT and CHV-THSTAT • 49
