Slab 2 – Single Stage Space Heat with Slab
Maximum

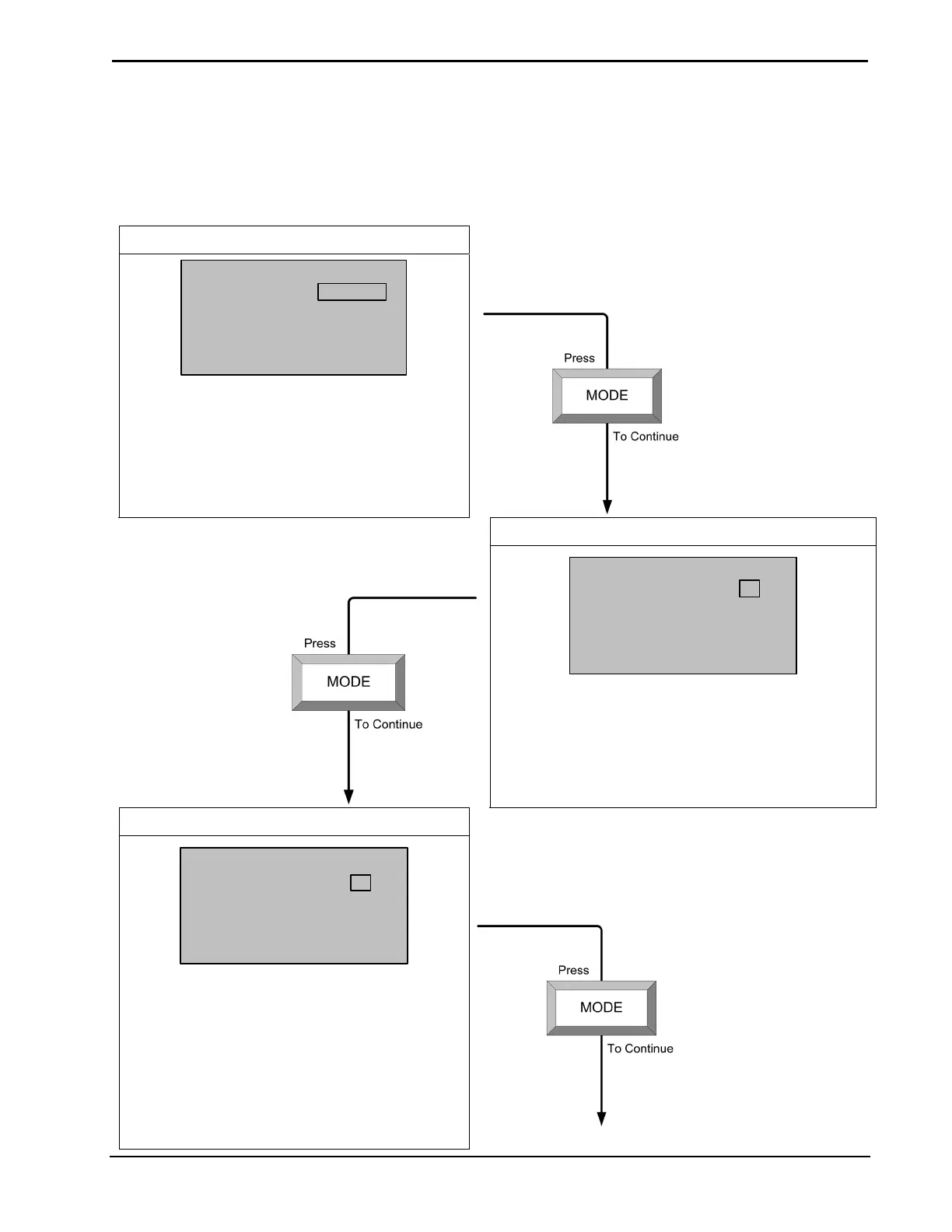

Press and hold the MODE and VIEW buttons simultaneously for five seconds to
enter the setup mode.
SYSTEM SETUP
SETUP: SYSTEM
Heat Sys Type:
Slab MAX T:
SLAB 2
122
o
1 STG SPACE HEAT BY SLAB
WITH SLAB MAX (W1)
Heat System Type: SLAB 2
Slab Maximum Temperature:
39 to 122° F (39 – 50° C). Used to prevent the
floor from becoming too hot on long heat calls.
NOTE: Slab mode 2 requires a slab remote
sensor and an air temperature sensor.
SYSTEM PERFORMANCE
SETUP: SYSTEM PERF
Heat Anticipator:
5
Heat Anticipator:
(valid selections are 1 through 6) Low number =
more frequent cycles and faster response (tighter
regulation).
High number = less frequent cycles and slower
response (looser regulation).
HUMIDIFIER OPTIONS
SETUP: HUM OPTS
Show Hum Mode Pg:
Show Hum View Pg:
Cold Weather Comp:
Y
Y
N
SYSTEM ENABLE/DISABLE
PAGE
Show Hum Mode Pg and Show Hum View
Pg: Select Y to show humidity page in normal
operation.
Cold Weather Compensation: Modifies the
humidifier output to prevent condensation on
the windows. Requires an outdoor
temperature source (CHV-THSAT, or CHV-
TSTAT with CHV-RTHS, CHV-RTS, or CHV-
RSS).
Continued on the following page.
