Crestron CHV-TSTAT and CHV-THSTAT Thermostats
Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel

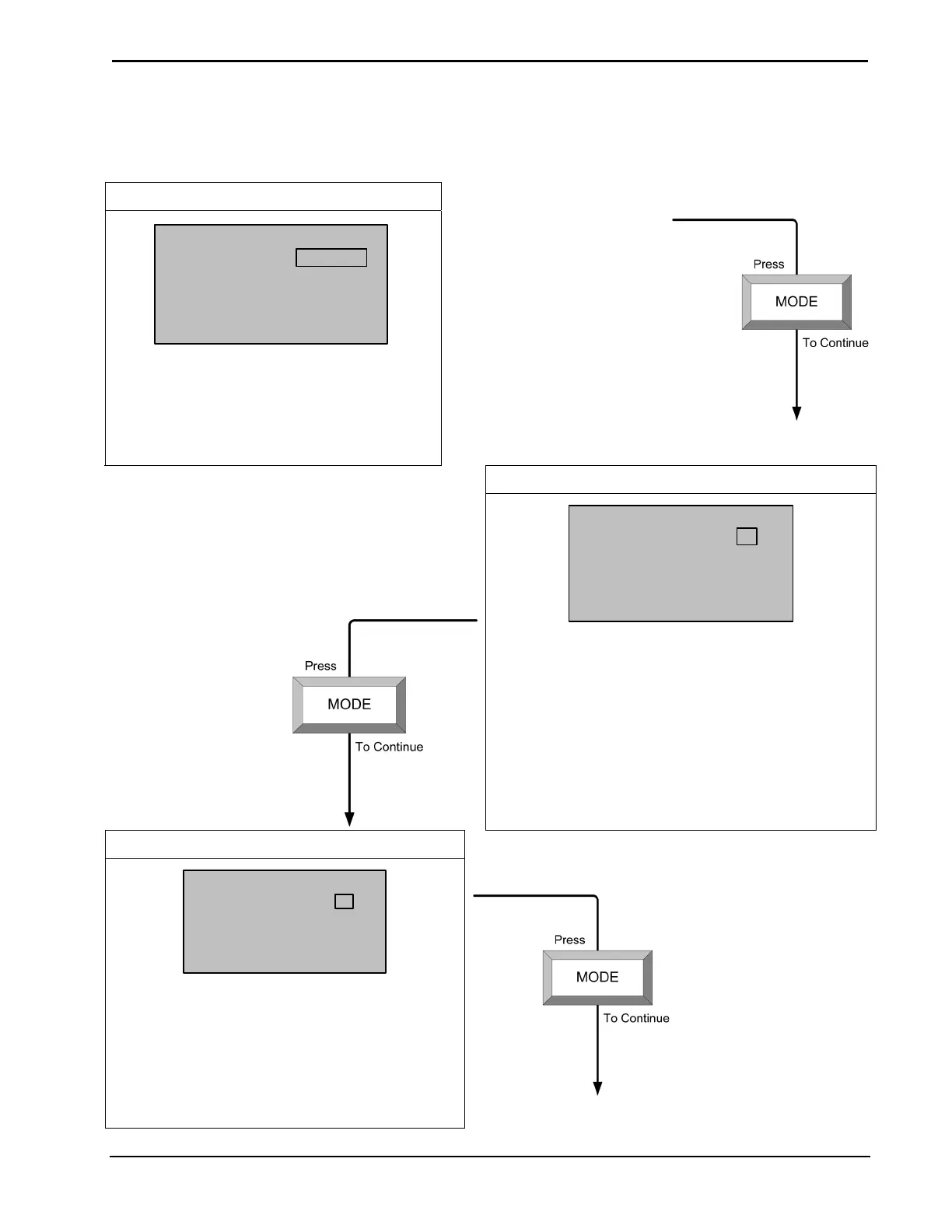

Press and hold the MODE and VIEW buttons simultaneously for five seconds to
enter the setup mode.
SYSTEM SETUP
SETUP: SYSTEM
Heat Sys Type:
# of Stages:
HP/AUX or DF:
HPump
2
HP/Aux
HEATPUMP SYSTEM
Heat System Type: Heatpump 1 or 2 Stages
HP/Aux or Dual Fuel – Dual fuel runs either
the heat pump or the aux output, depending
on outdoor temperature. The heat pump with
aux can stage the heat when required to
improve performance.
Dual Fuel: A dual fuel system
combines an energy-efficient
air-source heat pump with a
new or existing oil, gas or
propane furnace. The furnace
runs in place of the heat pump
in cold weather.
Aux (Auxiliary) Heat: When
the a heat pump can no longer
efficiently transfer heat from the
outside air, the thermostat
automatically turns on a
secondary heat source, such as
electric resistive heat.
SYSTEM PERFORMANCE
NOTE: You can set the HP or Aux Balance Point
from 0º to 90º, or select OFF to disable heat pump,
Aux lockouts.
SETUP: SYSTEM PERF
Heat Anticipator:
Cool Anticipator:
Intrstg Differential:
HP Balance Pt:
AUX Balance Pt:
5
2
2.0
0
Off
Off
Anticipators: (1 - 6) Low number = more frequent
cycles, faster response. High number = less frequent
cycles, slower response.
Interstage Differential: 0.5 to 8.0ºF. The proportional
temperature error to trigger the second stage.
HP Balance Point - Minimum outdoor temperature at
which the heat pump runs (requires an outdoor
temperature source).
AUX Balance Point - Maximum outdoor temperature
at which Aux heat system supplements the heat pump
(requires an outdoor temperature source)
HUMIDIFIER OPTIONS
SETUP: HUM OPTS
Show Hum Mode Pg:
Show Hum View Pg:
Cold Weather Comp:
Y
Y
N
SYSTEM ENABLE/DISABLE
PAGE
Show Hum Mode Pg and Show Hum View Pg:
Select Y to show humidity page in normal
operation.
Cold Weather Compensation: Modifies the
humidifier output to prevent condensation on the
windows. Requires an outdoor temperature
source (CHV-THSAT, or CHV-TSTAT with CHV-
RTHS, CHV-RTS, or CHV-RSS).
Continued on following page.
Operations and Installation Guide – DOC. 8163C Thermostats: CHV-TSTAT and CHV-THSTAT • 31
To Next Page
