Thermostats Crestron CHV-TSTAT and CHV-THSTAT
Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel (Continued)

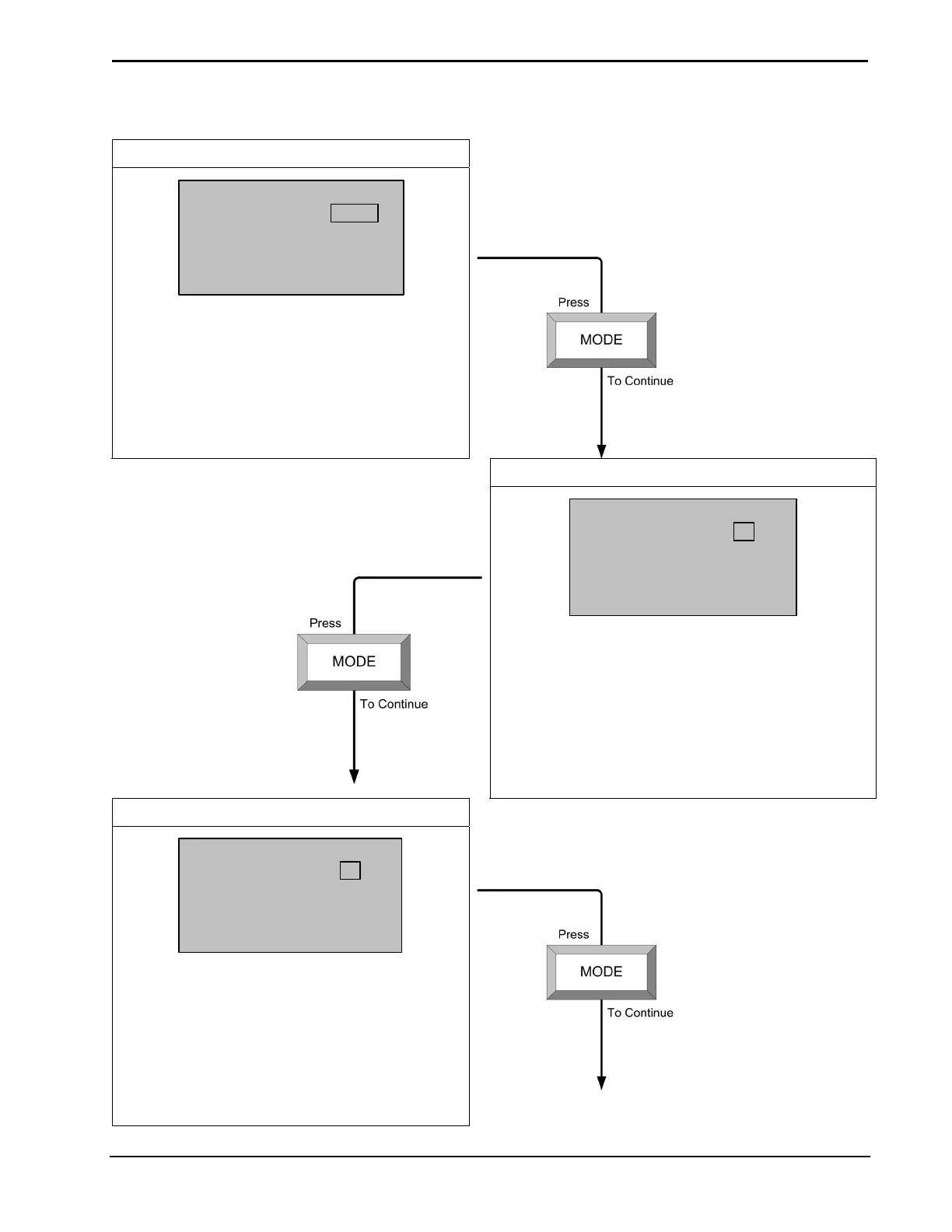

DEVICE OPTIONS
SETUP: DEVICE OPTS
Network ID:
LCD Contrast
CHV-THSTAT
[v2.0, #D8000000]
2A
5
Select Network ID: (03 to FE in Hex) match the
network ID set for the thermostat in SIMPL
Windows.
LCD Screen Contrast:
1 Lighter through 10 Darker
Displays Model number, Firmware version and
TSID.
SCREEN OPTIONS
SETUP: SCRN OPTIONS
Disp Global Page:
Disp Outdoor Page:
Disp Rem Func Pg1:
Disp Rem Func Pg2:
Reverse SMODE Dir
Y
Y
Y
Y
N
Options seen when VIEW is pressed:
Global Page – Temperature & humidity selection for
entire house (Cresnet system only).
Outdoor Page – Temperature & humidity of the
outside sensor.
Remote Function Page 1, 2 – Allows remote control
of other functions (for example: lights, alarms, etc.).
Reverse SMODE Dir – Allows arrow keys to select
mode functions in both directions.
DISPLAY OPTIONS
SETUP: DISP OPTIONS
Temperature Units:
Temp Disp Offset:
Dual Setpoint Auto:
Main Scn Lwr Obj:
Use 0.5 Deg C Step:
F
0
0
Y
HM
Y
°F or °C – Display in Fahrenheit or Celsius.
Offset (-6 to +6°F) Allows the user to adjust the
displayed and regulated temperature.
Dual Setpoint Auto – enables two-point auto
mode.
Main Screen Lower Object:
SB – Slab OD – Outdoor
HM – Humidity NA – None
°C may be displayed in 0.5 units.
Continued on the following page.
32 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163C
