Thermostats Crestron CHV-TSTAT and CHV-THSTAT

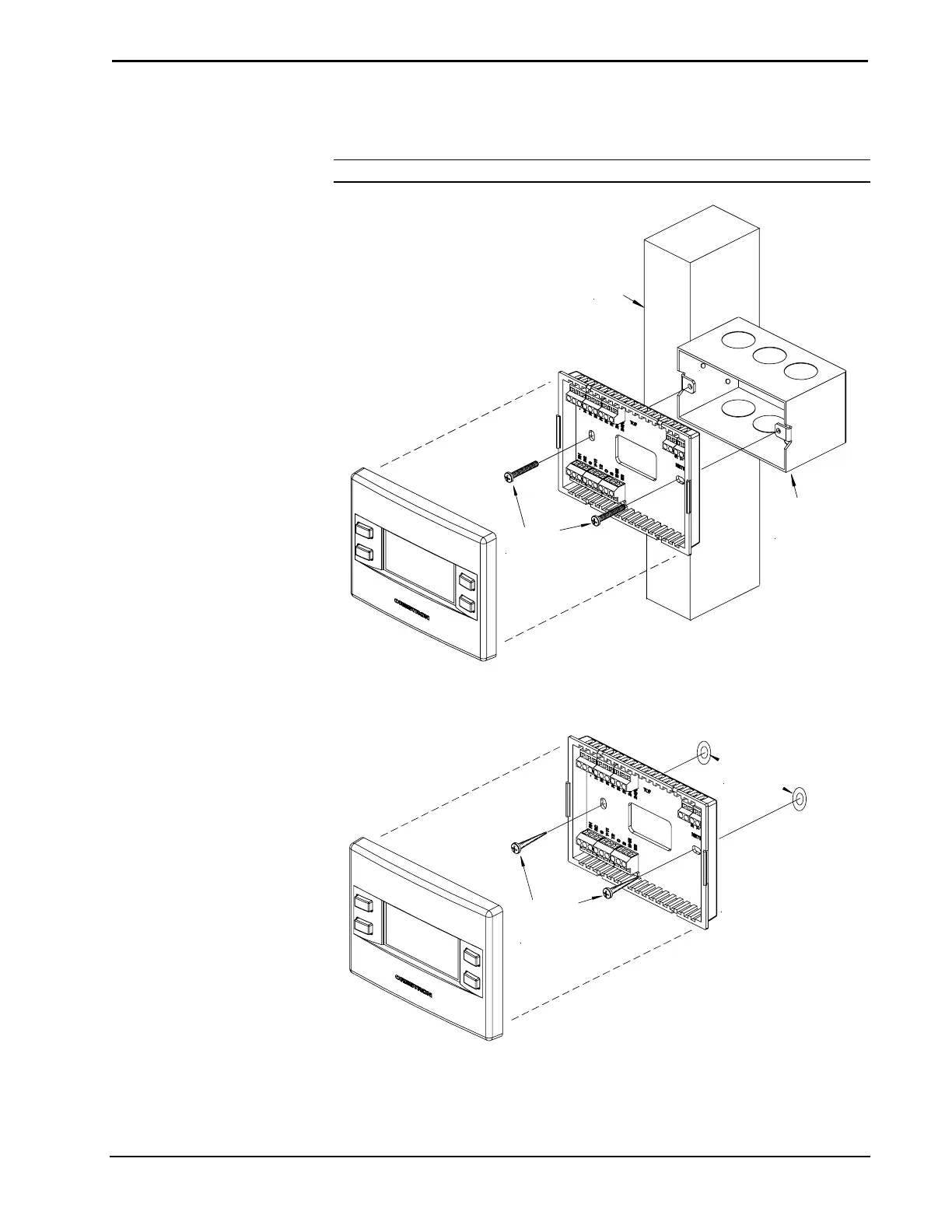

Installation View – Single gang electrical box – horizontal mounting
NOTE: Install insulation in the gang box to prevent inaccurate readings.
Panhead
6/32 x 1 in
Single-gang
electrical box
(not provided)
Stud
Installation view – Direct mount to wall
Mounting
Screws
(not provided)
Wall Anchors
(not provided)
Backplate
24 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163C
