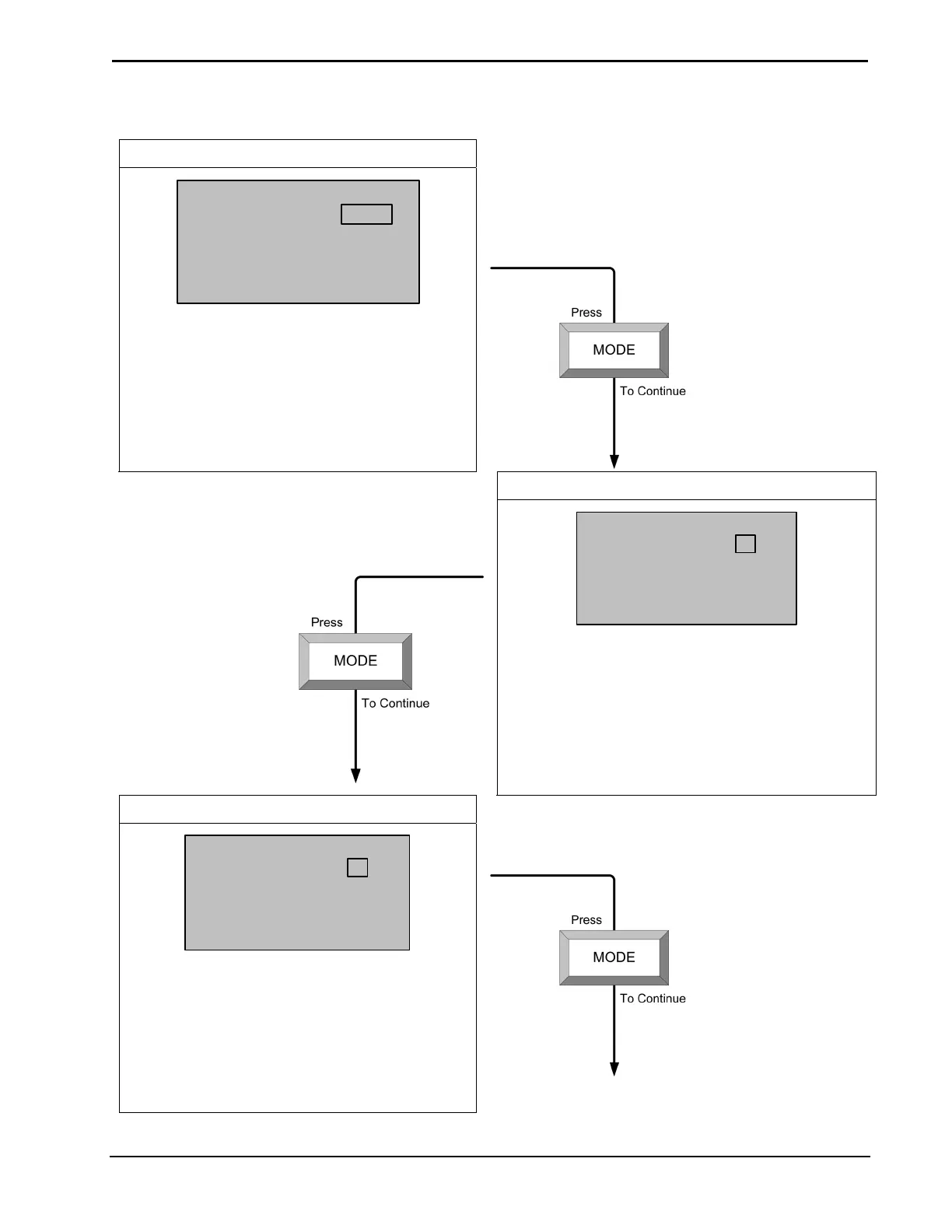

Slab 3 – Single Stage Heat with Minimum/Maximum (Continued)
DEVICE OPTIONS
SETUP: DEVICE OPTS
Network ID:
LCD Contrast
CHV-THSTAT
[v2.0, #D8000000]
2A
5
Select Network ID: Valid entries are 03 to FE in
Hex to match the network ID set for the
thermostat in SIMPL Windows.
LCD Screen Contrast:
1 Lighter through 10 Darker
Displays Model number, Firmware version and
TSID.
SCREEN OPTIONS
SETUP: SCRN OPTIONS
Disp Global Page:
Disp Outdoor Page:
Disp Rem Func Pg1:
Disp Rem Func Pg2:
Reverse SMODE Dir
Y
Y
Y
Y
N
Global Page – Temperature & humidity selection
for entire house if part of a Cresnet system.
Outdoor Page – Temperature & humidity of the
outside sensor.
Remote Function Page 1, 2 – Allows remote
control of other functions (for example: lights,
alarms, etc.).
Reverse SMODE Dir – Allows arrow keys to
select mode functions in both directions.
DISPLAY OPTIONS
SETUP: DISP OPTIONS
Temperature Units:
Temp Display Offset:
Main Scn Lwr Obj:
Use 0.5 Deg C Step:
F
0
0
SB
Y
°F or °C – Display in Fahrenheit or Celsius.
Offset (-6 to +6°F) Allows the user to adjust the
displayed/regulated temperature.
Main Screen Lower Object
SB – Slab OD – Outdoor
HM – Humidity NA – None
°C may be displayed in half units.
Continued on the following page.
Operations and Installation Guide – DOC. 8163C Thermostats: CHV-TSTAT and CHV-THSTAT • 41
