Crestron DigitalMedia DM-MD16X16-CPU3 - DMC-SDI Input Card

Product Manual – DOC. 8418A DigitalMedia Switchers
•
65
DMC-SDI Input Card
The DMC-SDI is an input card that supports SD-SDI, HD-HDI, and 3G-SDI formats,
handling high-definition video signals up to 1080p60 and 2 channels of 24-bit digital
audio through a single coaxial cable. An SDI loop-through output, HDMI output, and
unbalanced analog audio output are also provided.

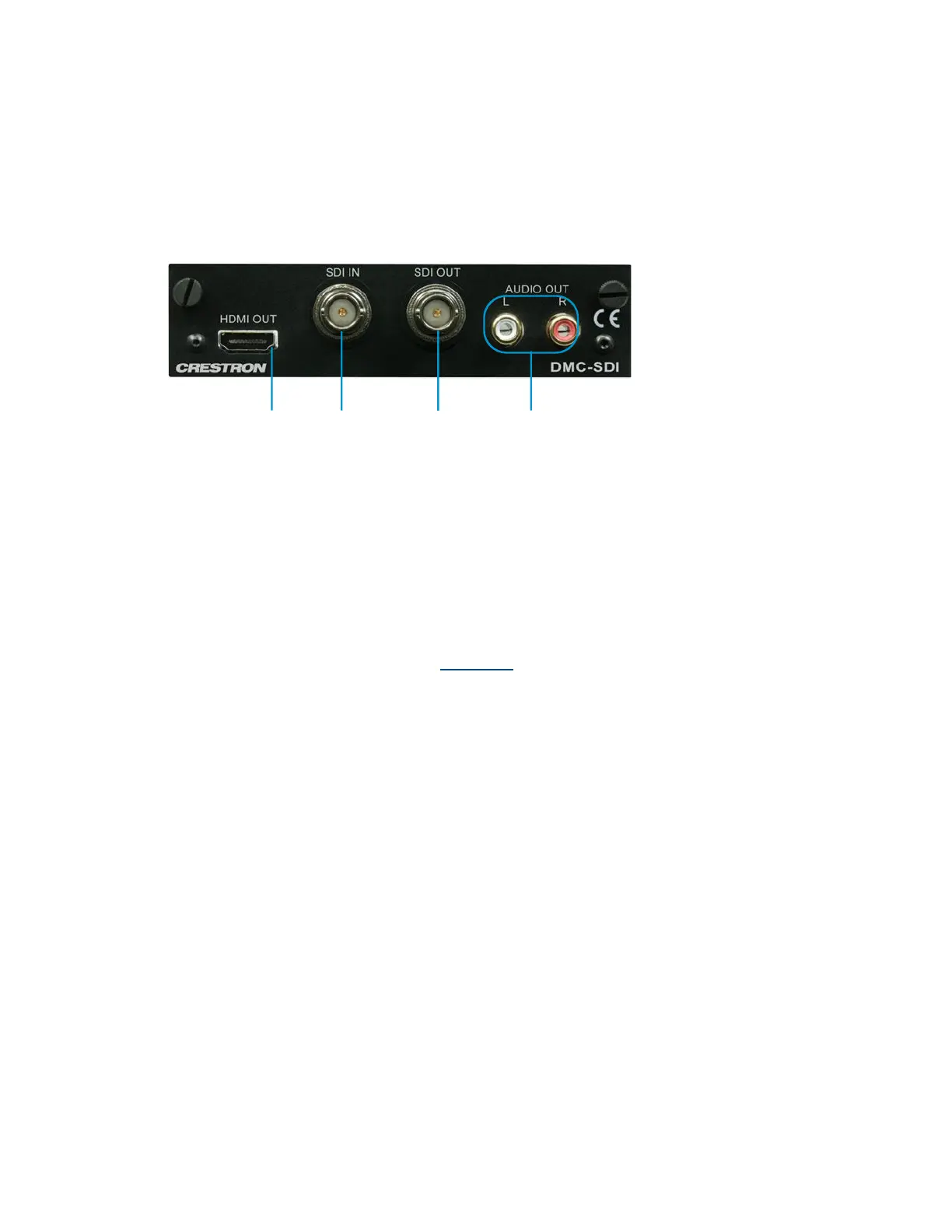

DMC-SDI Input Card
 HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
 SDI IN: BNC female;
SDI video input
 SDI OUT: BNC female;
SDI video/audio loop-through output
 AUDIO OUT L, R: RCA connectors, female;
Unbalanced stereo line level audio output
For additional information, visit the DMC-SDI product page on the Crestron website.


 
