Crestron DM-RMC-4K-SCALER-C User Manual

Supplemental Guide – DOC. 7728A DM-RMC-4K-SCALER-C/-DSP: 4K DigitalMedia 8G+ Receivers
•
7
Configuration Using DMTool
An overview of the steps necessary to adjust underscan and overscan settings using
DMTool follows.
NOTE:
For detailed information, refer to the Crestron Toolbox help file.
1. Connect to the DigitalMedia switcher.
2. Connect to the DM-RMC-4K-SCALER-C.
3. Open the Setup window of the HDMI output.
4. In the Video Settings dialog box, select the desired value in the
Underscan Mode
and
Overscan Mode
drop-down lists as necessary.

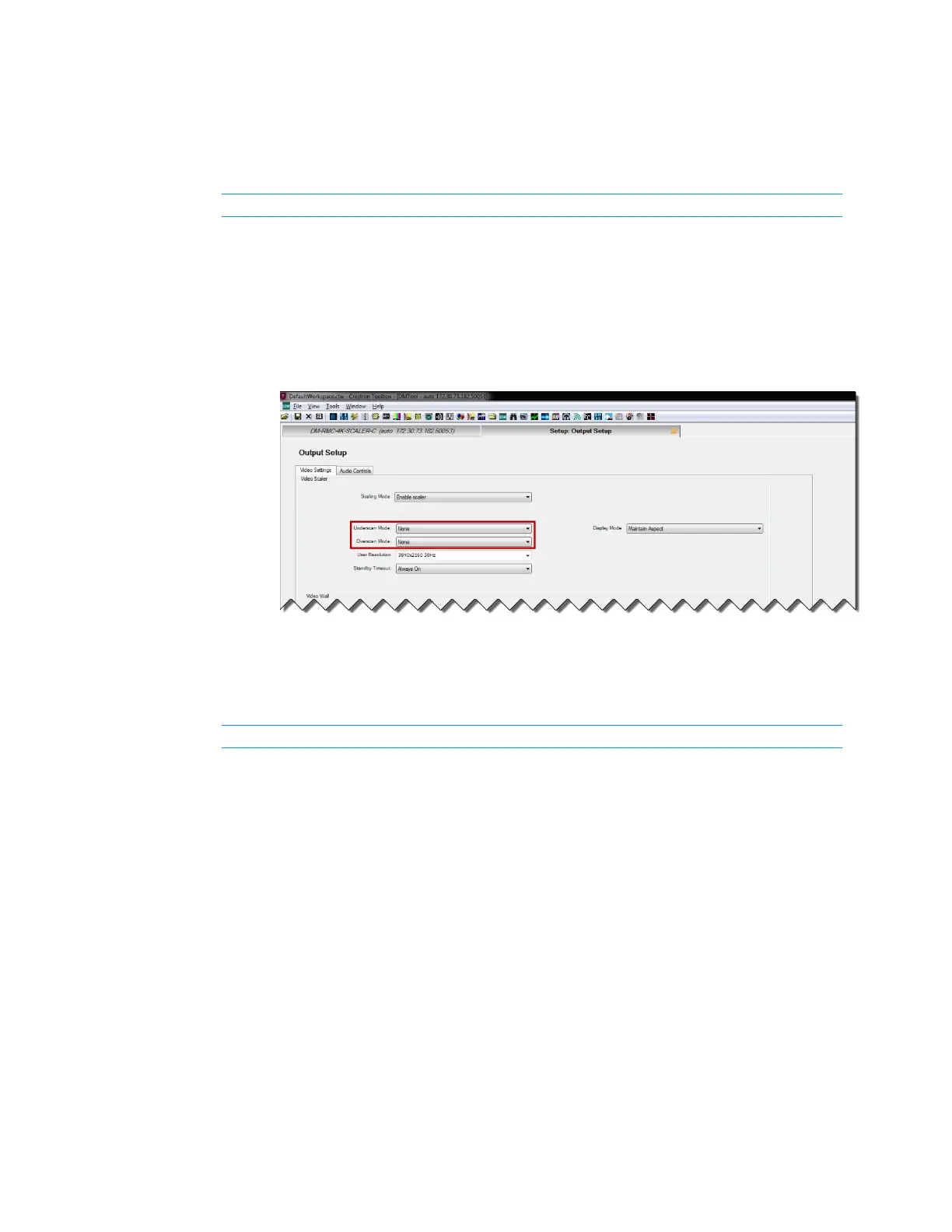

Video Settings Dialog Box—Underscan and Overscan Configuration
Configuration Using SIMPL Windows
An overview of the steps necessary to adjust underscan and overscan settings using SIMPL
Windows follows.
NOTE:
For detailed information, refer to the SIMPL Windows help file.
• Adjust underscan in slot 3 for the DM-RMC-4K-SCALER-C Scaler. Set the
<Scaler_Out_Underscan_Mode>
analog input join to the desired value.
• Adjust overscan in slot 4 for the DM-RMC-4K-SCALER-C DM Input. Set the
<Source_Overscan_Mode>
analog input join to the desired value.
User-Selectable Output Resolution
The output resolution of the scaler is user selectable. To select the output resolution, use
DMTool or SIMPL Windows as discussed in the following sections.
Configuration Using DMTool
An overview of the steps necessary to select the output resolution of the scaler follows.
1. Connect to the DigitalMedia switcher.
2. Connect to the DM-RMC-4K-SCALER-C.
3. Open the Setup window of the HDMI output.

Crestron DM-RMC-4K-SCALER-C Specifications

General

Baud rate	115200 Bd
Product color	Black
LED indicators	Yes
Heat dissipation	63 BTU/h
Housing material	Metal
Scaled resolutions	1920 x 1080, 2560 x 1600, 3840 x 2160, 4096 x 2160
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input voltage	100-240 V
Power consumption (typical)	18 W
RJ-45 ports quantity	2
Number of HDMI outputs	1
Maximum pixel clock	300 MHz
Channel separation (1 kHz)	90 dB
Signal-to-Noise Ratio (SNR)	95 dB

Weight and Dimensions

Depth	28 mm
Width	137 mm
Height	318 mm
Weight	625 g
