Crestron DM-RMC-4K-SCALER-C User Manual

Supplemental Guide – DOC. 7728A DM-RMC-4K-SCALER-C/-DSP: 4K DigitalMedia 8G+ Receivers
•
3
Side View, Left

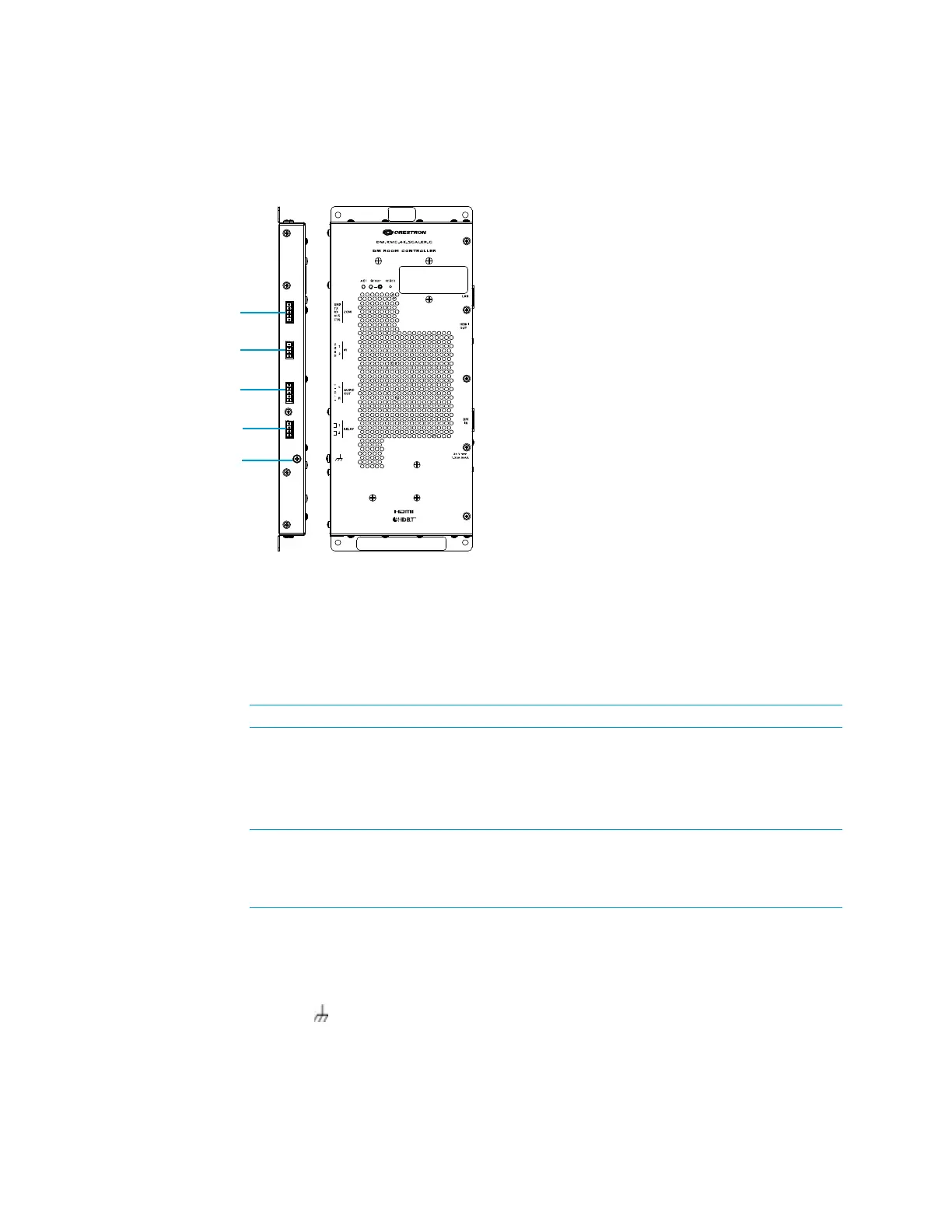

The following illustration shows the left side of the DM-RMC-4K-SCALER-C.
Side View, Left

COM:
5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support

IR 1-2:
4-pin 3.5 mm detachable terminal block comprising 2 IR/serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 volts) up to 19200 baud
NOTE:
The IR 1 and IR 2 commands can be sent in parallel but are processed serially.

AUDIO OUT L, R:
5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line level audio output;
Output impedance: 200 ohm balanced or 100 ohm unbalanced;
Maximum output level: 4 Vrms balanced or 2 Vrms unbalanced
NOTE:
The analog stereo audio output is active only when the
DM-RMC-4K-SCALER-C is receiving a 2-channel stereo signal. For applications using a
multichannel surround sound source, use the DM-RMC-4K-SCALER-C-DSP, which
provides a stereo downmix of the multichannel signal.

RELAY 1-2:
4-pin 3.5 mm detachable terminal block comprising 2 normally open,
isolated relays;
Rated 1 amp, 30 Vac/Vdc;
MOV arc suppression across contacts

Ground ( ):
6-32 screw, chassis ground lug






Crestron DM-RMC-4K-SCALER-C Specifications

General

Baud rate	115200 Bd
Product color	Black
LED indicators	Yes
Heat dissipation	63 BTU/h
Housing material	Metal
Scaled resolutions	1920 x 1080, 2560 x 1600, 3840 x 2160, 4096 x 2160
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input voltage	100-240 V
Power consumption (typical)	18 W
RJ-45 ports quantity	2
Number of HDMI outputs	1
Maximum pixel clock	300 MHz
Channel separation (1 kHz)	90 dB
Signal-to-Noise Ratio (SNR)	95 dB

Weight and Dimensions

Depth	28 mm
Width	137 mm
Height	318 mm
Weight	625 g
