28 • DigitalMedia Presentation Systems: DMPS-100/200/300-C/300-C-AEC Operations Guide – DOC. 7219D
5. The RGB inputs can accept component, composite, and S-video signals via direct interface to Crestron
MPS Series products, or through an appropriate adapter (not included). Input sync detection is not
provided for composite or S-video signal types through the RGB connection.

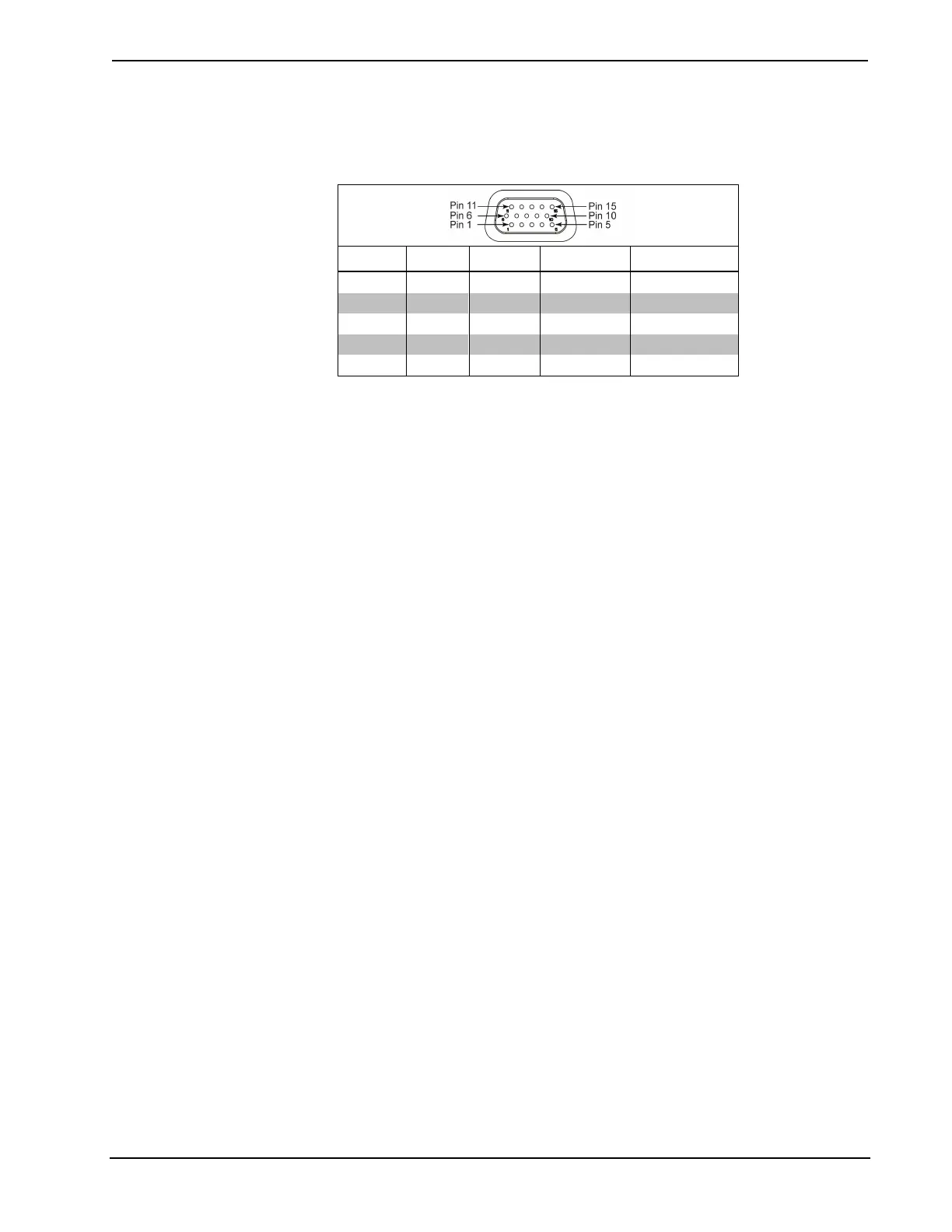

6. Refer to the following table for the RGB IN connector pinouts.
PIN # RGB YPbPr S-VIDEO COMPOSITE
1 R Pr C
2 G Y Y
3 B Pb Comp
13 H
14 V
7. Supplying Power over DM (PoDM) requires external power pack, sold separately.
8. For DM 8G+ wiring up to 330 ft (100 m) between devices, use Crestron DM-CBL-8G DigitalMedia
8G cable, Crestron DM-CBL DigitalMedia cable, Crestron DM-CBL-D DigitalMedia D cable, or
generic CAT5e (or better) UTP or STP. Shielded cable and connectors are recommended to safeguard
against unpredictable environmental electrical noise which may impact performance at resolutions
above 1080p. Refer to the Crestron DigitalMedia Design Guide (Doc. 4546) for complete system
design guidelines. All cable sold separately.
