Crypto AirData 150 S2 USB - Page 46

AirData 150 S2 USB User Manual
45

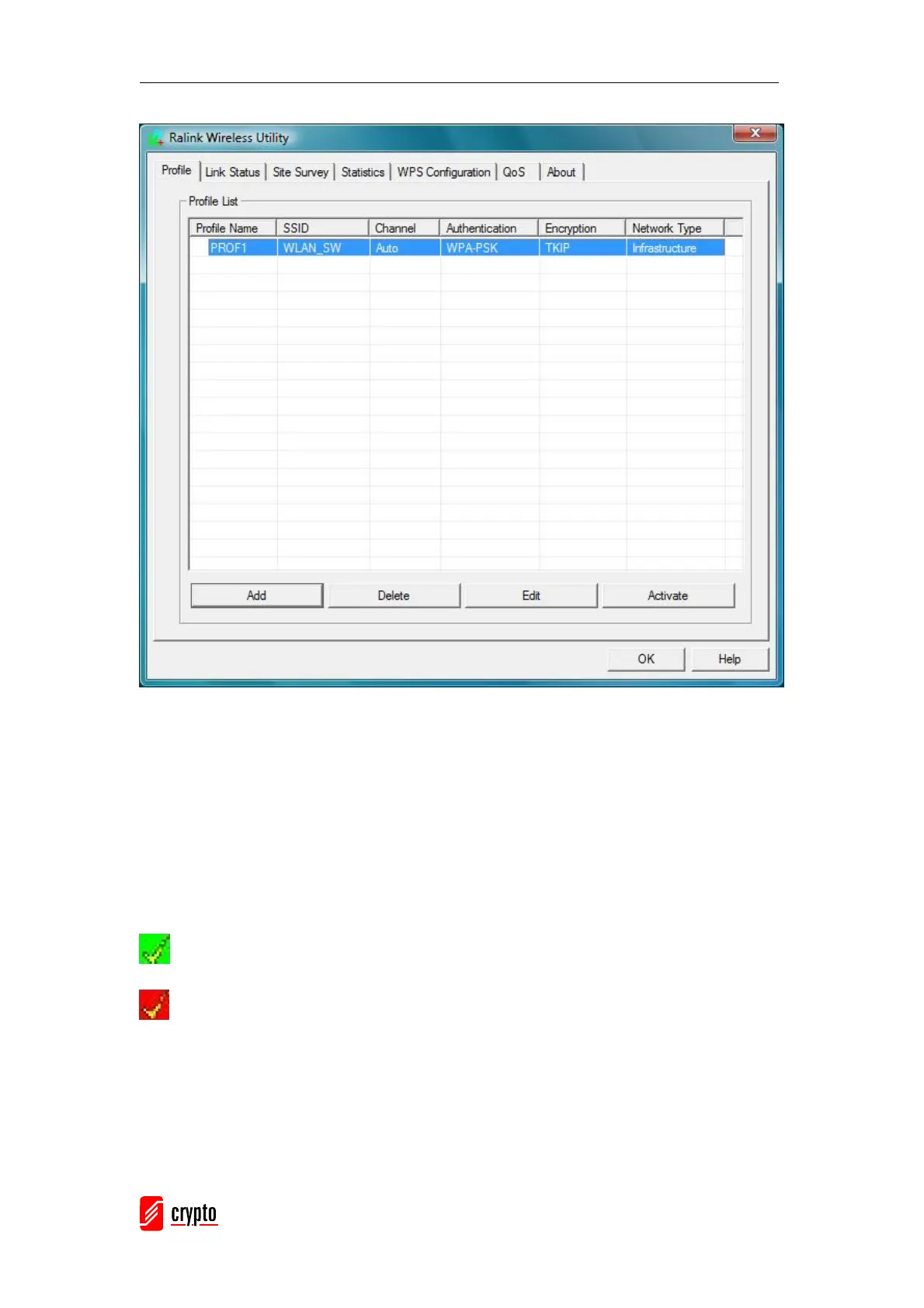

Profile Name: The Profile List displays all the profiles and the relative settings of the
profiles including Profile Name, SSID, and Channel…etc; preset to PROF* (* indicate
1,2,3,…)
SSID: AP to Ad-hoc name.
Channel: Channel in use for Ad-Hoc mode.
Authentication: Authentication mode.
Encryption: Security algorithm in use.
Network Type: Network’s type, including Infrastructure and Ad-hoc.
Indicates a successful connection on the currently activated profile.
Indicates a failed connection on the currently activated profile.
Add/Delete/Edit Button: Click these buttons to add/delete/edit the selected profiles.
Activate Button: Click”Activate” to connect the selected profile. When a profile is
activated, the adapter will be initially connected to the profile.
