• The platforms of the lift need to be lowered on to an adequate support, so that the cylinder is
unloaded. Be careful not to damage the safety ledge!
• Remove the split-pin from the bolt.
• Slide the bolt only so far until the bearing surface of the bushing
can be examined.
• Both scissors need to be examined.
• Repair or re-install back to original condition. Grease/oil as described in the lubrication
instructions.

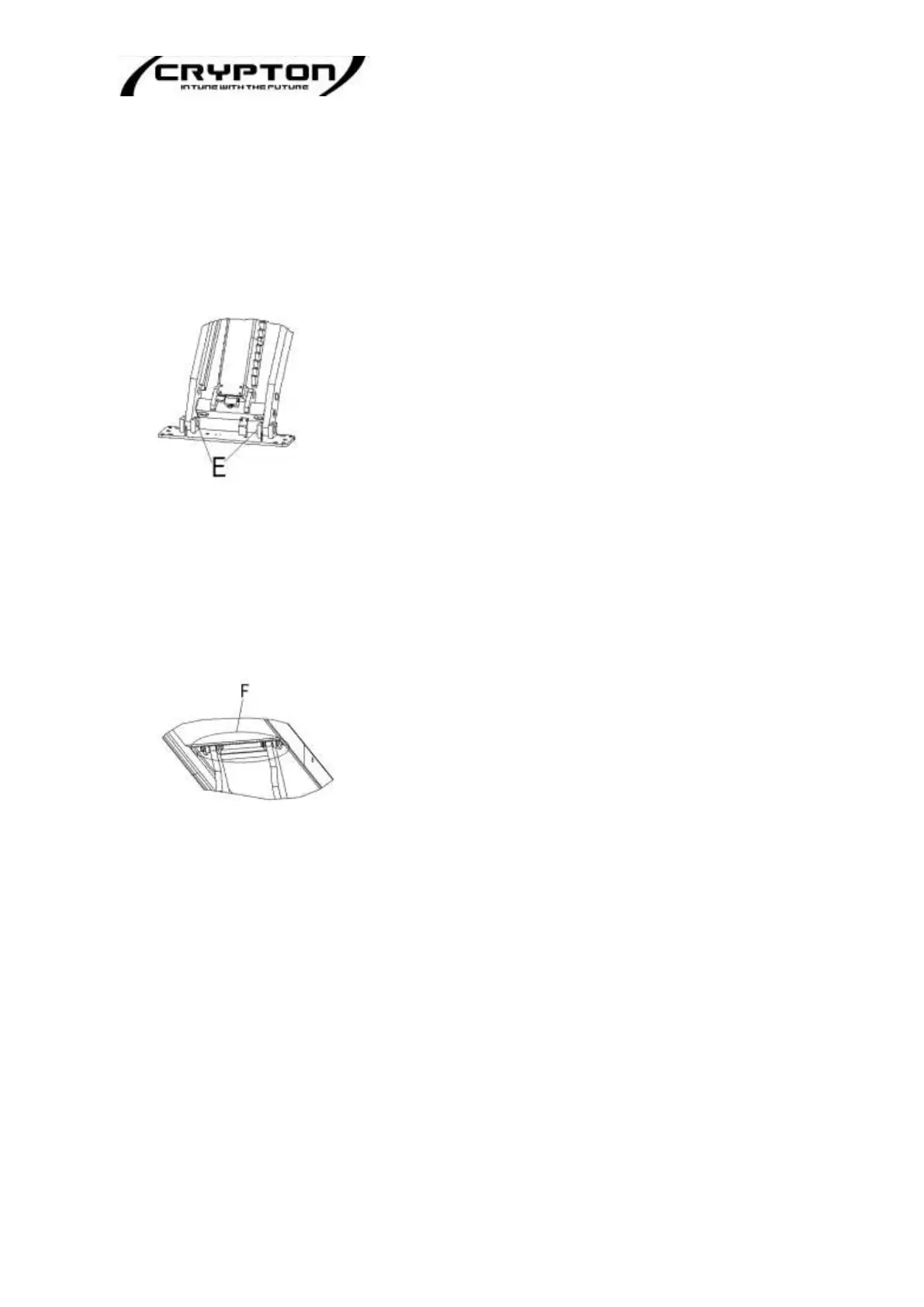

Pos. E - Lower fixed-bearing bolts and bearing bushings
• The condition of the bolts and bushings need to be visually inspected for wear and
abrasion.
• Remove the split-pin from the bolt.
• Slide the bolt only so far until the bearing surface of the bushing can be examined
• Both scissors need to be examined.
• Repair or re-install back to original condition. Grease/oil as described in the lubrication
instructions.
Pos. F - Upper fixed-bearing bolts and bearing bushings
• The condition of the bolts and bushings need to be visually inspected for wear and abrasion.
• Remove the split-pin from the bolt.
• Slide the bolt only so far until the bearing surface of the bushing can be examined.
• Both scissors need to be examined.
• Repair or re-install back to original condition. Grease/oil as described in the lubrication
instructions.
Lubrication Instructions for bearing points
The bushings used on our lifts are self-lubricating. No maintenance is necessary under normal
operating conditions. In extreme cases, for instance in aggressive environments with heavy dust
and dirt, paint mist and chemicals there is a risk of corrosion through the penetration of foreign
objects at the bearing points. Lubrication can improve the protection of these areas. This
practice is recommended as a preventative measure. The lubrication should be carried out as
follows:
• With a grease gun, whenever the bearing has a grease nipple.
• For bearings without grease nipples, use a lubricating spray with good viscous properties. Be
sure to thoroughly clean all surfaces before applying the grease.
There should be no load on the bearing during the greasing operation. Please observe the
safety instructions.
