Chapter 2 Installation
9
4. Grounding - Rack-mounted equipment should be properly and well grounded. Particular attention should be given to
supply connections other than direct connections to the mains.

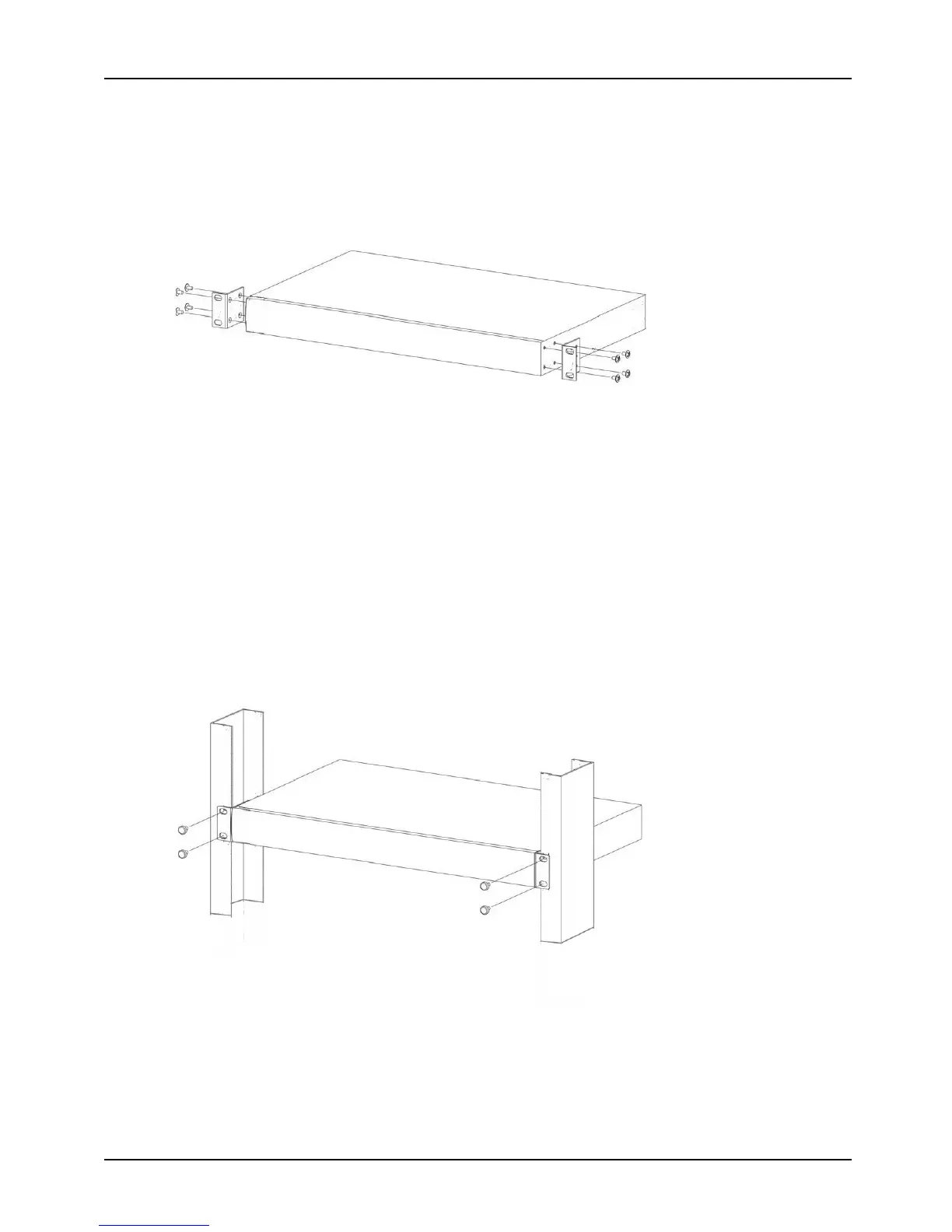

[Attach Rack-Mount Brackets to the Switch]
1. Position a Rack-Mount Bracket on one side of the Switch.
2. Line up the screw holes on the bracket with the screw holes on the side of the switch.
3. Use a screwdriver to install the M3 flat head screws through the mounting bracket holes into the switch. (There could
have two or four screws for one bracket. That depends on the model that installed.)
4. Repeat Step 1~3 to install another bracket to the switch.
5. Now it is ready to mount to a rack.
[Mount the Switch on a Rack]
1. Position a bracket that is already attached to the switch on one side of the rack.
2. Line up the screw holes on the bracket with the screw holes on the side of the rack.
3. Use a screwdriver to install the rack screws through the mounting bracket holes into the rack.
4. Repeat Step 1~3 to attach another bracket that is already attached to the switch on another side of the rack.
