Chapter 6. Manage / Configure the Switch
95
b). Set time manually
This switch can count time internal. You can select Get Time by “Manually”, and input current time manually. Then
click [Apply].

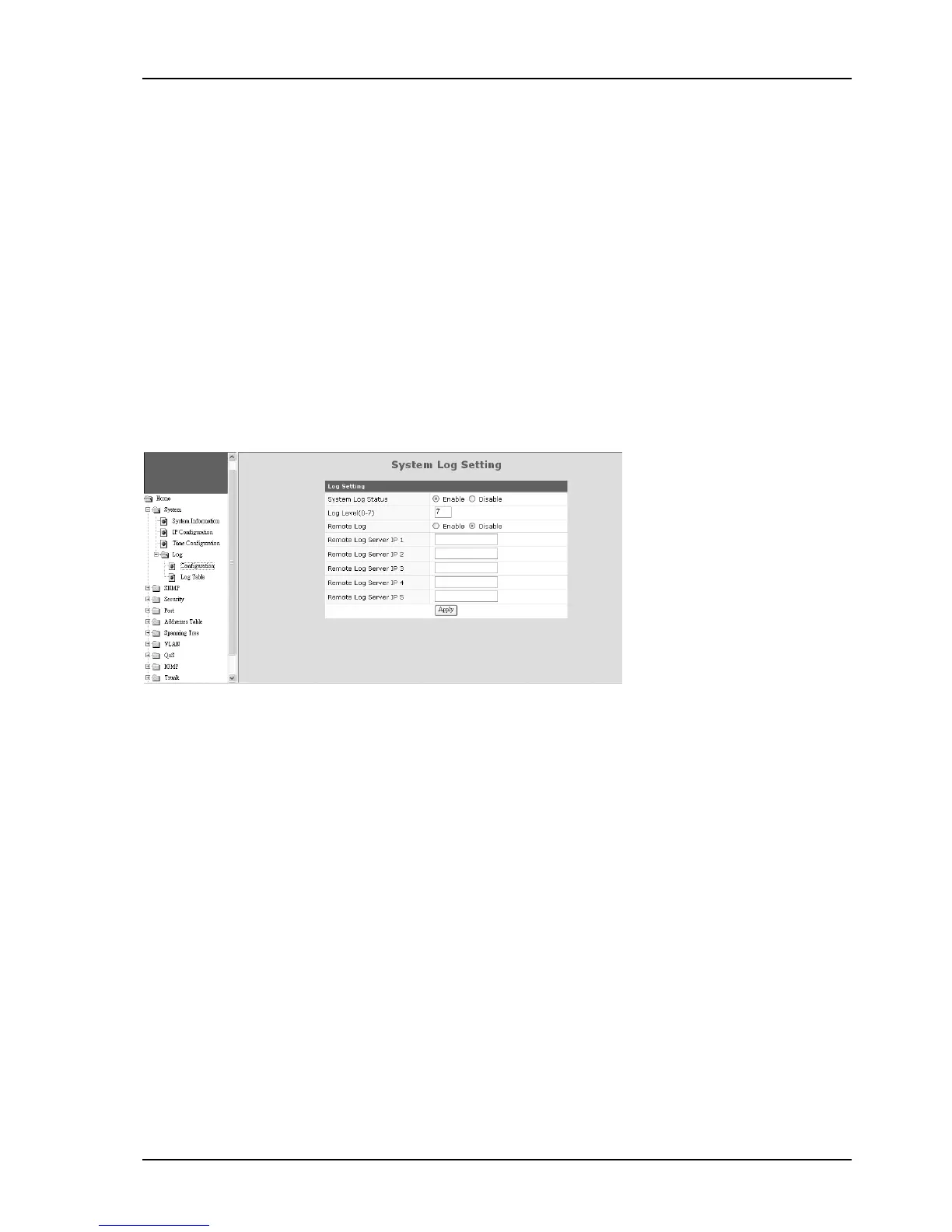

4). Log
[Configuration]
Users can configure System Log function and view log records here. If this function is enabled, the switch will record
events to a log file and put the log file to flash.
Up to 512 records are allowed for local logging. If more than 512 events happen, the records will be overwritten from
beginning. And if remote syslog server is applied, the switch will also send event record to the syslog server.
About log function configuration ...
System Log Status : This can enable/disable system logging function.
Log Level (0~7) : Log levels 0~7 are defined as below. And events with lower log level than this number will be
recorded.
