Port Setting : It is for modifying the setting of port. Follow the steps to do it.
1. Select the port that you want to modify in “Port#” first.
2. Fill the name of the port.
3. Select Enable/Disable state in “Admin”. If Disable is selected, this port will be
disabled for any network access.
4. Select the Enable/Disable state of Auto function of port. The auto mode
could be auto-negotiation or auto-detect operation when auto is set to
disable.
5. If Auto is disabled, select the operation speed and duplex mode of the port in
“Speed/Duplex”.
6. Select the Enable/Disable state of Flow Control function of port.
7. Select the Enable/Disable state of Power Saving function of port. If it is
enabled, port will go to low power state when link down.
8. Select MDI/MDI-X operation mode. It could be “Auto”, “MDI”, or “MDI-X”.
“Auto” can auto-detect and get the correct connection mode. “MDI” will set
the port to MDI mode for switch-to-switch connection. “MDI-X” will set the
port to MDI-X mode for user PC connection.
9. Click [Apply] after any modification.
2). Port Information

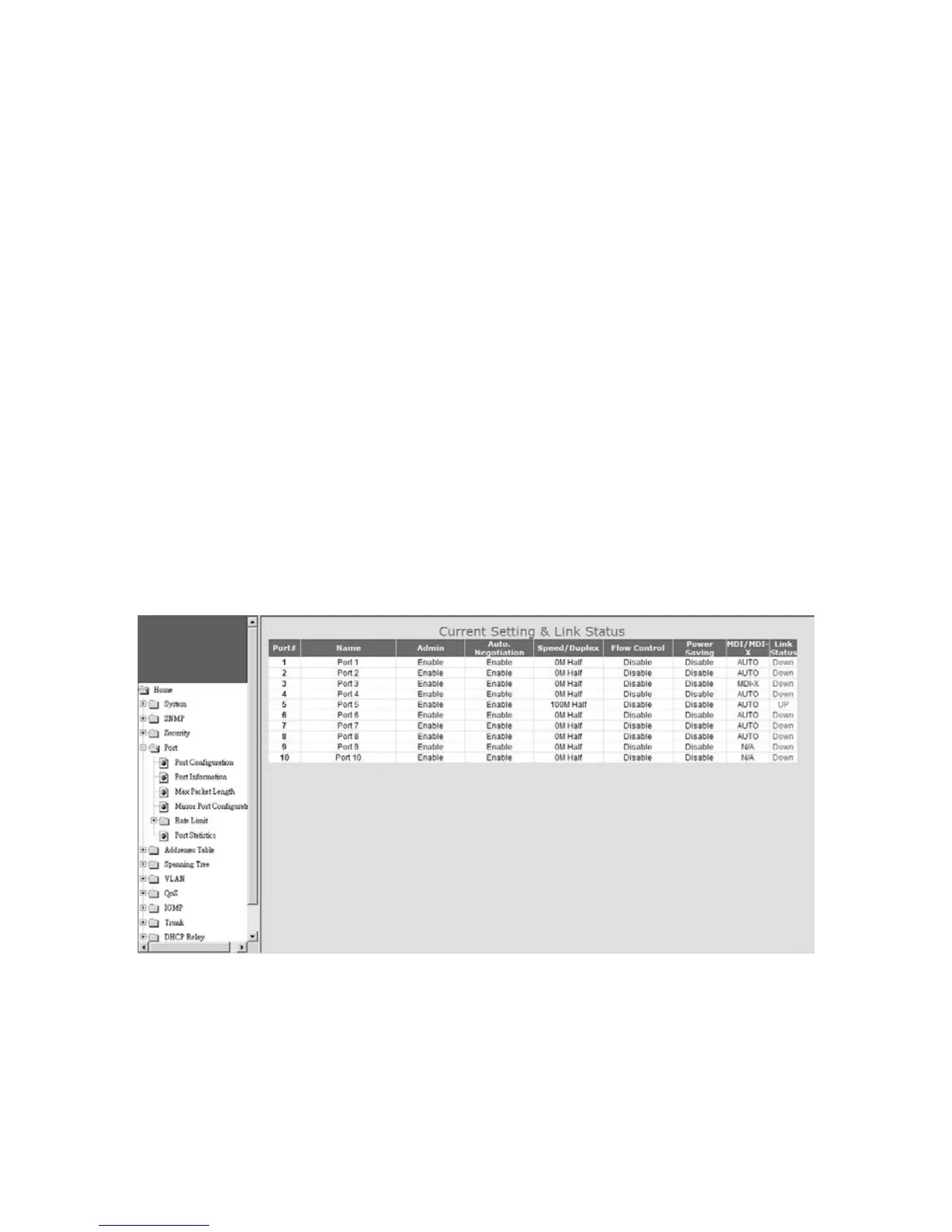

Current Setting & Link Status : It is current status of ports.
Name: The name of the port.
Admin: It shows current port enable/disable status.
Auto: It shows current Auto enable/disable status of ports.
Speed/Duplex: It shows current working speed and duplex mode if ports are link
up. Or the setting of speed/duplex when auto is disable.
