94
Flow Control: It shows current Flow Control function status of ports.
Power Saving: It shows current Power Saving enable/disable status of ports.
MDI/MDI-X: It shows current MDI/MDI-X setting of ports.
Link: It shows the link status of each port.

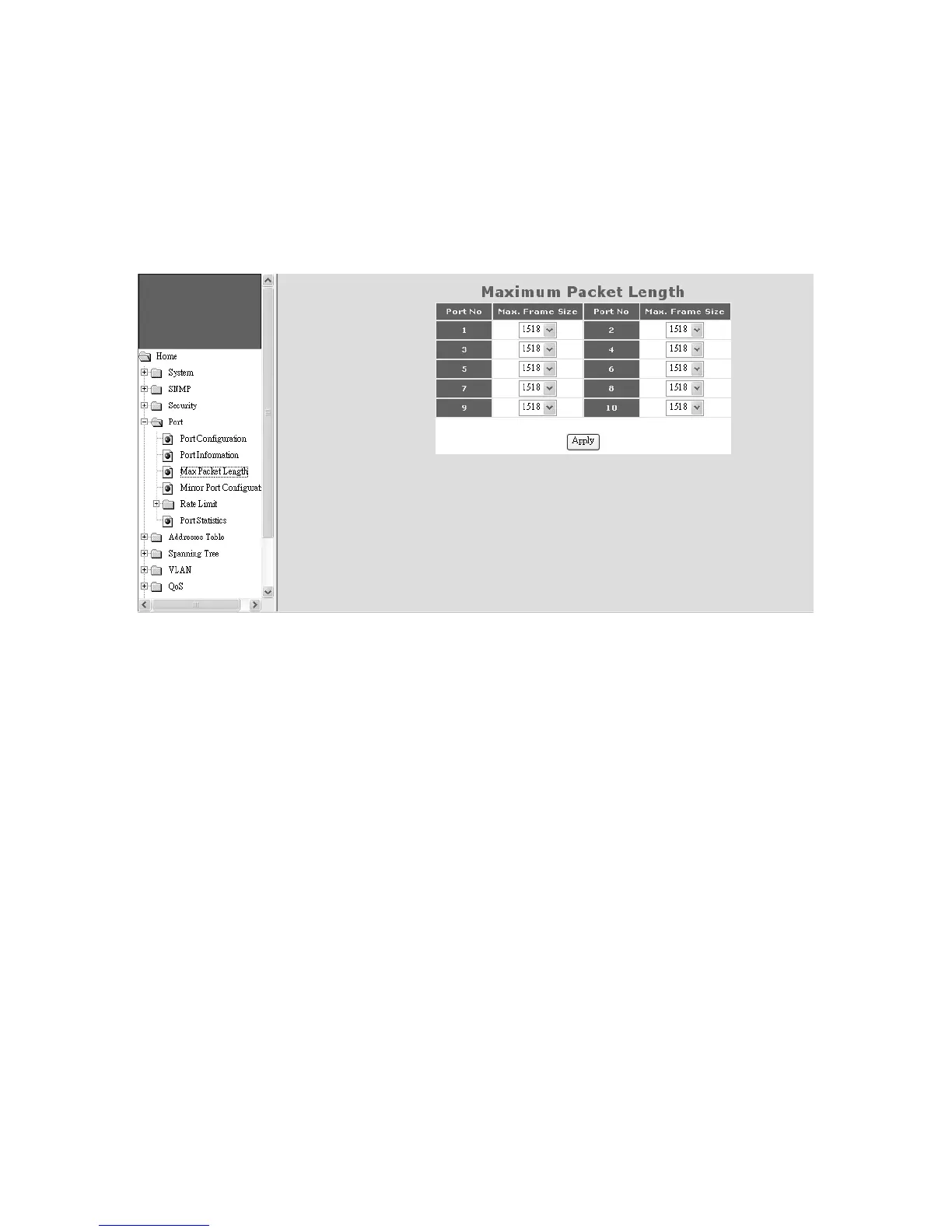

3). Max Packet Length
This switch supports Jumbo Frame function. And the maximum packet size could
be up to 9600 byte/packet. You can select the maximum packet size for each
port here.
4). Mirror Port Configuration
This switch operates in store-and-forward algorithm so it is not possible to monitor
network traffic from another connection port. But the port mirror function can copy
packets from some monitored port to another port for network monitor.
