95

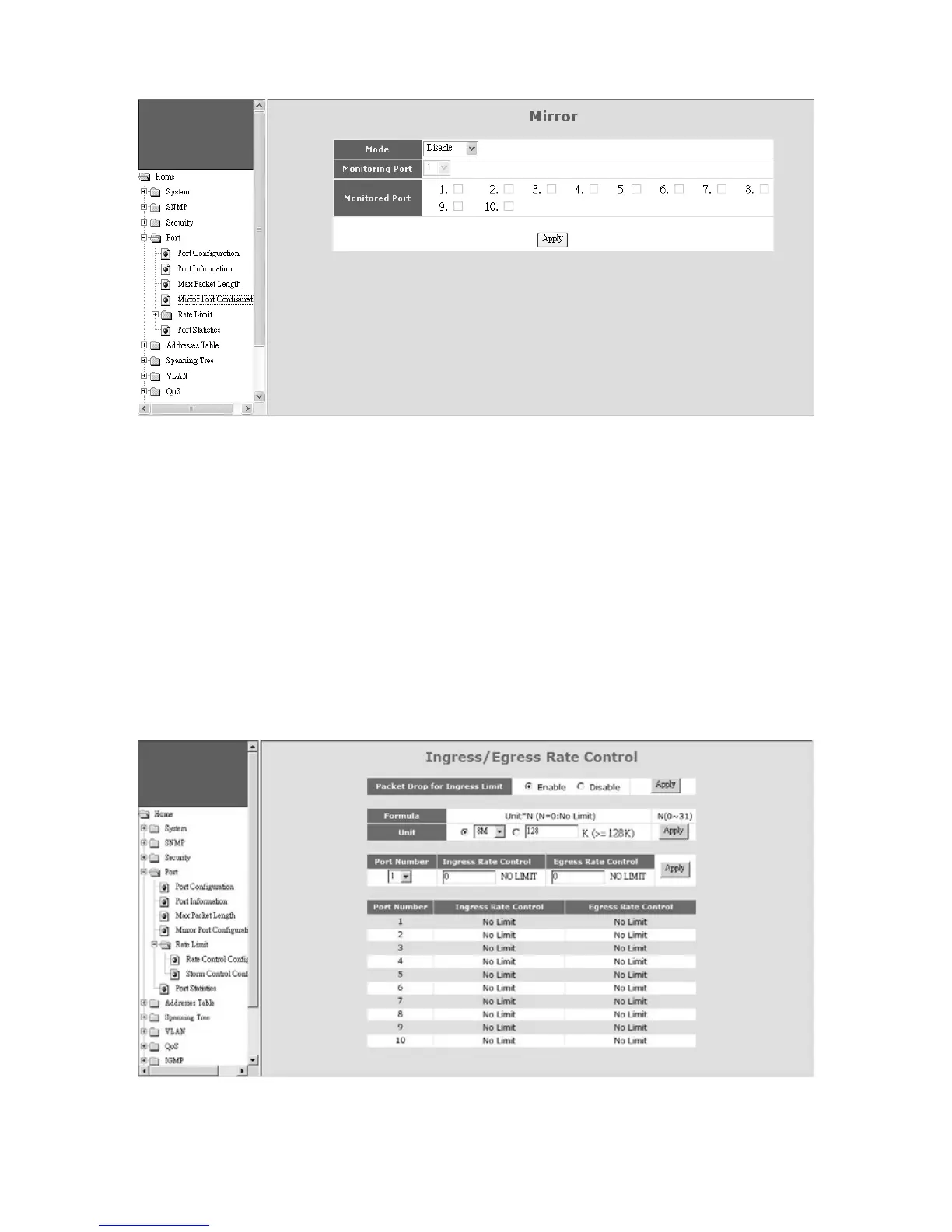

Mode: This is used to enable/disable Mirror function.
Monitering Port: This is used to set the capture port. The switch will copy the
traffic from Monitored Port to this port if Mirror function is enabled.
Monitored Port: This is the monitored port. The switch will copy the traffic from
this port to Monitoring Port.
5). Rate Control
Two traffic rates could be controlled by the switch. One is the ingress/egress
traffic of each port. Another is Broadcast/Multicast/Unicast Storm Control.
5-1) Rate Control Configuration
This function can setup the ingress and egress rate limit of ports.
Follow the steps to configure ...
a. Set “Unit” first. It could be selected from pre-defined units, or define by user.
