7 Front Axle
104

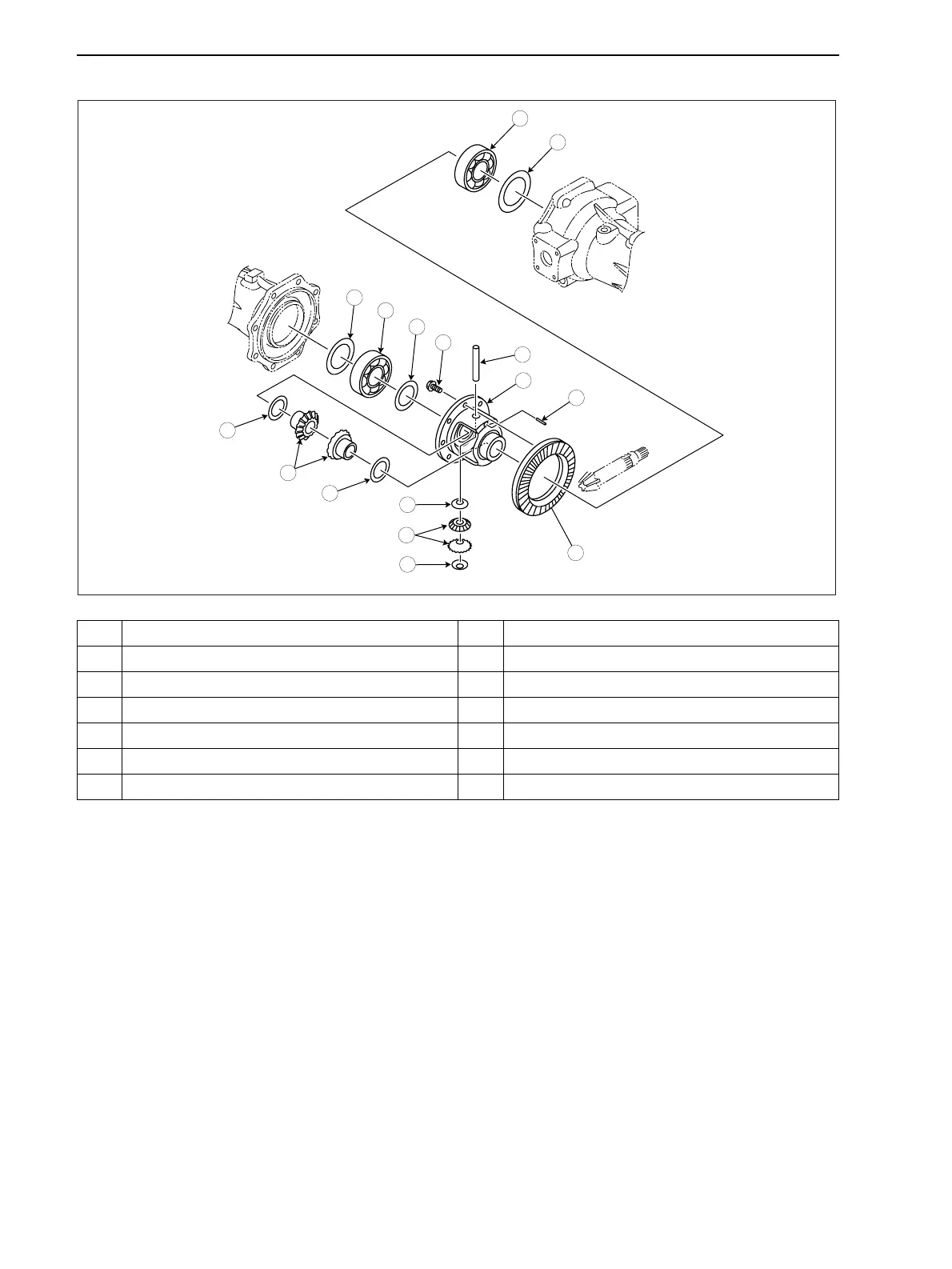

6. Disassemble the deferential assembly.
1 Liner A 2 Bearing
3Liner 4Liner B
5 Bolt 6 Ring Gear
7 Spring Pin 8 Shaft
9 Washer 10 Pinion
11 Side Gear 12 Washer
13 Deferential Case
9
9
8
7
5
4
3
10
13
11
12
12
6
1
2
2
Adjustment
Adjustment
GZ3W26-018
