Cub Cadet 8354 - Creeper Speed (if Applicable ); Front Wheel Drive

CHAPTER 4 8354/8404
4-10
D615-W02 May-2003
615W412A
615W411A
2.7 FRONT WHEEL DRIVE
• Employs a gear engagement type and disengage/
engage in a simple style.

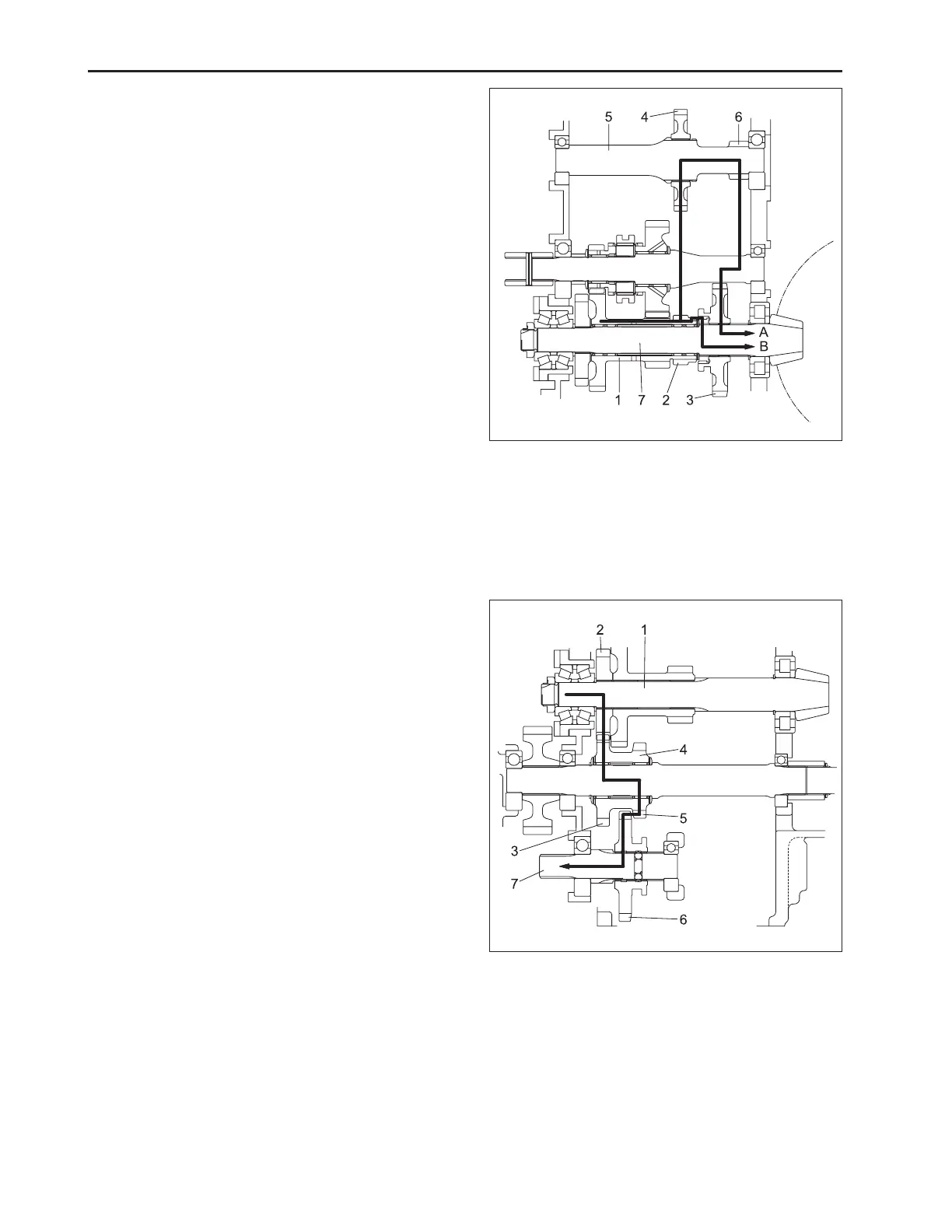

Power Transmission Flow
• Spiral bevel pinion (1) → 25 Gear (2) → 26 Gear (3)
→ 26-20 Gear (4) → 20 Gear (5) → 31 Gear (6) →
Front wheel drive shaft (7)
2.6 CREEPER SPEED
(IF APPLICABLE )
• The High/Low stage, employs a gear engagement
method and when setting the Hi-Lo shift lever and
creep speed lever to the transmission position, the
power will then be transmitted.
A. Power Transmission Flow
Low Speed
• 42-17-18 Gear (1) → 18 Gear (2) → 41 Gear (4) →
13 Gear shaft (5) → 13 Gear (6) → 46 Gear (3) →
Spiral bevel pinion gear (7)
High Speed
• 42-17-18 Gear (1) → 18 Gear (2) → 46 Gear (3) →
Spiral bevel pinion gear (7)
(1) 42-17-18 Gear (5) 13 Gear Shaft
(2) 18 Gear (6) 13 Gear
(3) 46 Gear (7) Spiral Bevel Pinion Gear
(4) 41 Gear
[A] Low [B] High
(1) Spiral Bevel Pinion (5) 20 Gear
(2) 25 Gear (6) 31 Gear
(3) 26 Gear (7) Front Wheel Drive Shaft
(4) 26-20 Gear
