CHAPTER 4 8354/8404
4-46
D615-W03 May-2003

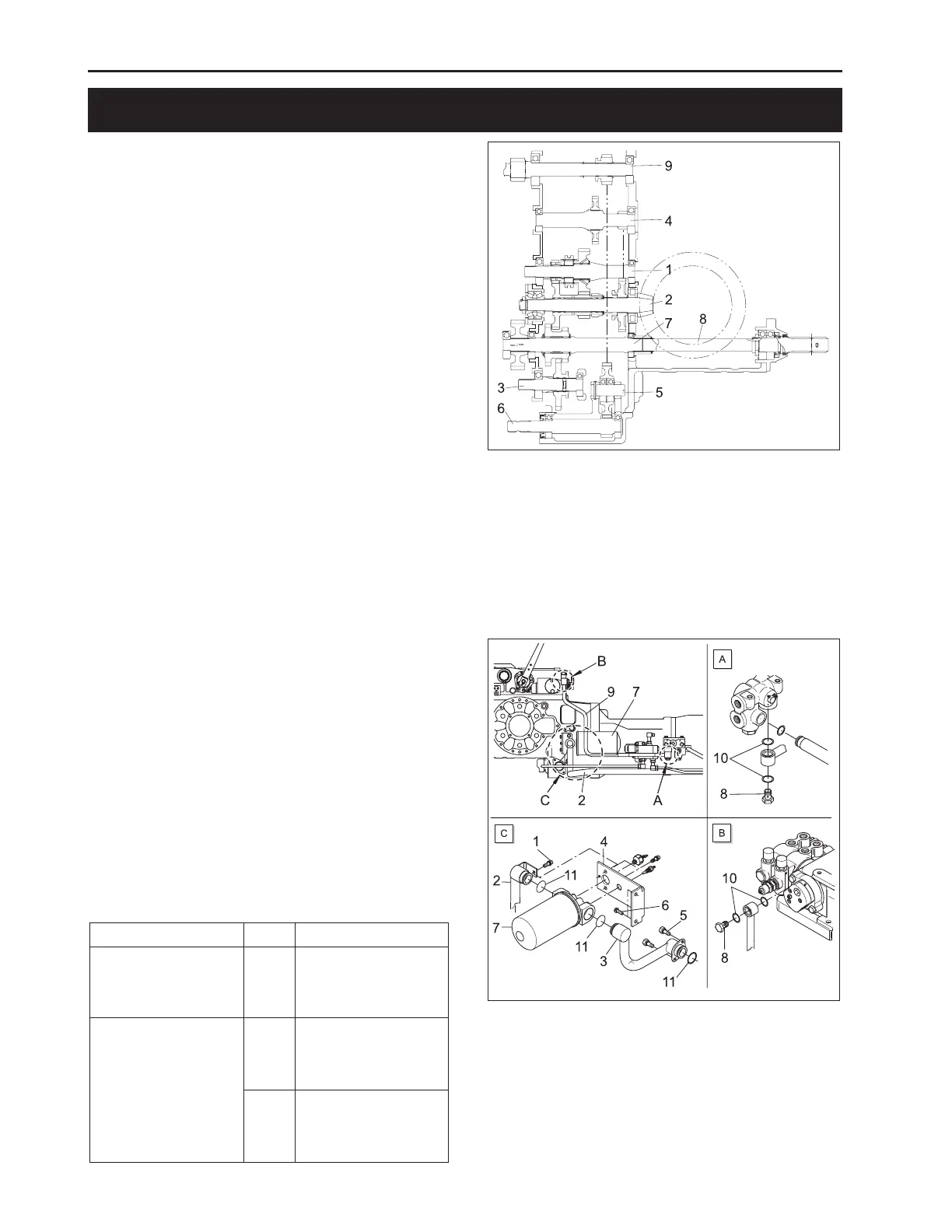

615W478A
(1) Aux. Shift Shaft
(2) Spiral Bevel Pinion
(3) Front Drive Shaft
(4) 13 Gear Shaft
(CR option)
(5) Idle Shaft
(6) Mid PTO Shaft
(7) PTO Drive Shaft
(8) PTO Shaft
(9) PTO Drive Shaft
615W480A
(1) Bolt
(2) Intake Pipe 2
(3) Intake Pipe 1
(4) Filter Support
(5) Bolt
(6) Bolt
12.1 DISASSEMBLY, ASSEMBLY
A. Disconnection of Transmission Group
a. First Stage (Disconnection of Hydraulic Pipe)
1. Loosen bolt (1) and disconnect intake pipe2 (2).
2. Loosen intake pipe 1 (3), filter support (4) and at-
taching bolt (5), (6) and disconnect intake pipe 1,
filter support and hydraulic filter assembly (7) in as-
sembly.
3. Loosen joint bolt (8) and disconnect hydraulic pipe
2 (9).
(When reassembling)
• Apply Hydraulic pipe connection O-ring (10), (11)
with grease and take care of not damaged.
Sect. Spec. Tightening Torque
Joint bolt
Tightening bolt
M18
M8
M0
49.0 ~ 58.8 N·m
5.0 ~ 6.0 kgf·m
36.2 ~ 43.4 lbf·ft
23.5 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.4 ~ 20.2 lbf·ft
48.1 ~ 55.8 N·m
4.9 ~ 5.7 kgf·m
35.5 ~ 41.2 lbf·ft
(7) Hydraulic Filter Assembly
(8) Joint Bolt
(9) Hydraulic Pipe2
(10) O-ring
(11) O-ring
