TRANSMISSION
4-47
D615-W02 May-2003
615W482A

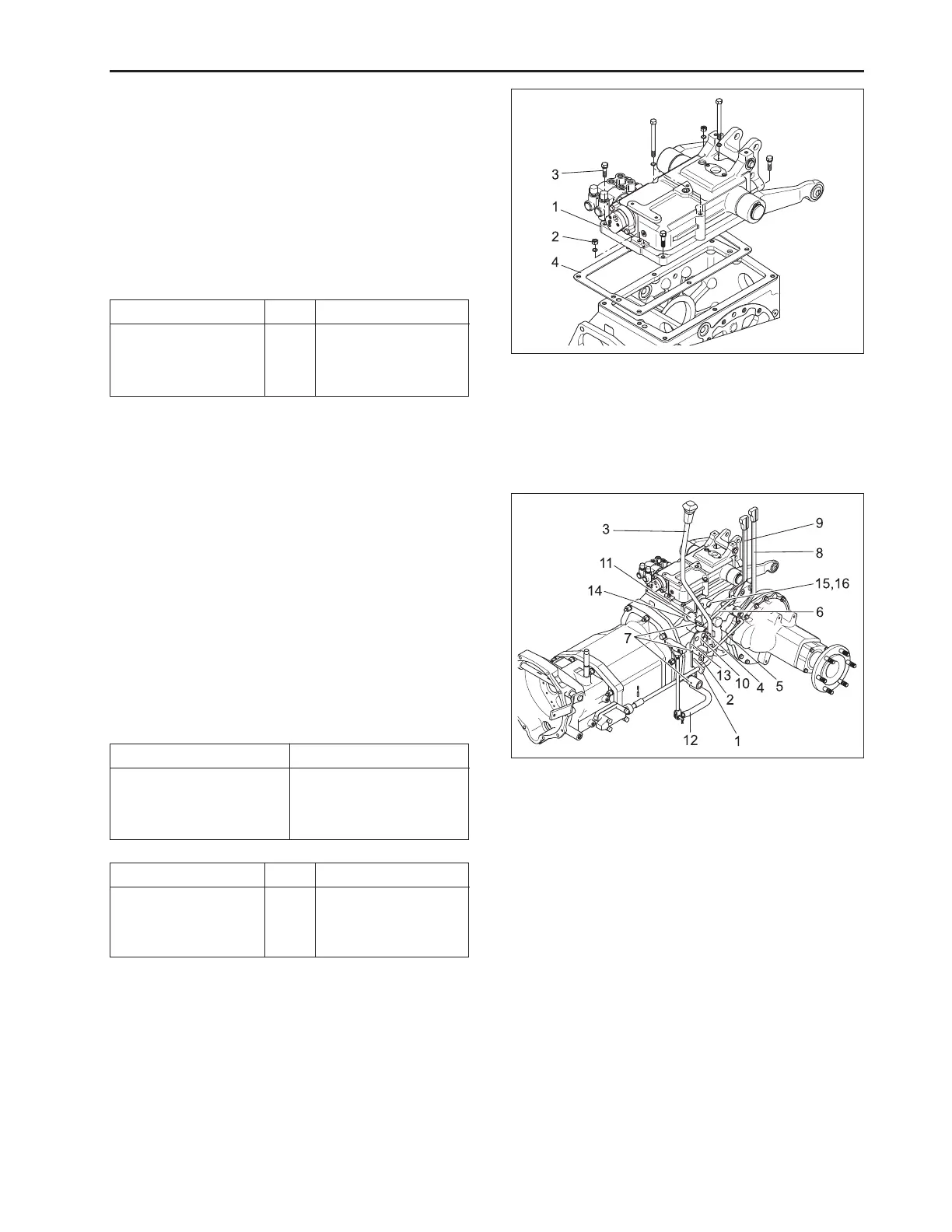

1. Remove the main transmission bracket (1) attach-
ing bolt (2) and disconnect bracket and main trans-
mission lever (3) in assembly.
2. Pull out snap pin (4) and disconnect aux. transmis-
sion rod (5), creep rod (6).
3. Remove spring pin (7) and disconnect aux. trans-
mission lever (8), creep speed lever (9), aux. trans-
mission lever 1 (10), creep speed lever 1 (11) and
front wheel driving lever (12).
(When reassembling)
Sect. Tightening Torque
Tightening bolt, nut M8 23.5 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.4 ~ 20.2 lbf·ft
Spec.
Sect. Specified Value
Clearance between Aux.
transmission lever 1,
creep speed lever and
safety switch
00 mm
00 in.
(1) Main Transmission Bracket
(2) Bolt
(3) Main Transmission Lever
(4) Snap Pin
(5) Aux. Transmission Rod
(6) Creep Speed Rod
(7) Spring Pin
(8) Aux. Transmission Lever
(9) Creep Speed Lever
(10) Aux. Transmission Lever 1
(11) Creep Speed Lever 1
(12) Front Wheel Driving Lever
(13) Stopper
(14) Stopper
(15) Safety Switch
(16) Shim
c. Third Stage (Disconnection of Transmission
Lever)
IMPORTANT:
• After assembling aux. transmission lever (8) and
creep speed lever (9), check the safety switch (15)
(quick speed ON/OFF switch) operation.
• When it does not operate properly, check the safety
switch (15) or adjust shim (16).
615W481A
1. Disengage hydraulic cylinder assembly (1) attach-
ing bolt (3) and nut (2) and disconnect hydraulic
cylinder assembly (1).
(When reassembling)
• Replace packing.
Sect. Spec. Tightening Torque
Tightening bolt M10 48.1 ~ 55.8 N·m
4.9 ~ 5.7 kgf·m
35.5 ~ 41.2 lbf·ft
b. Second Stage (Disconnection of Hydraulic
Cylinder Assembly)
(1) Hydraulic Cylinder Assembly
(2) Nut
(3) Bolt
(4) Packing
