BRAKE
6-7
D615-W02 May-2003
615W605A
6.1 DISASSEMBLY, MAINTENANCE
[CHECK AND ADJUSTMENT]

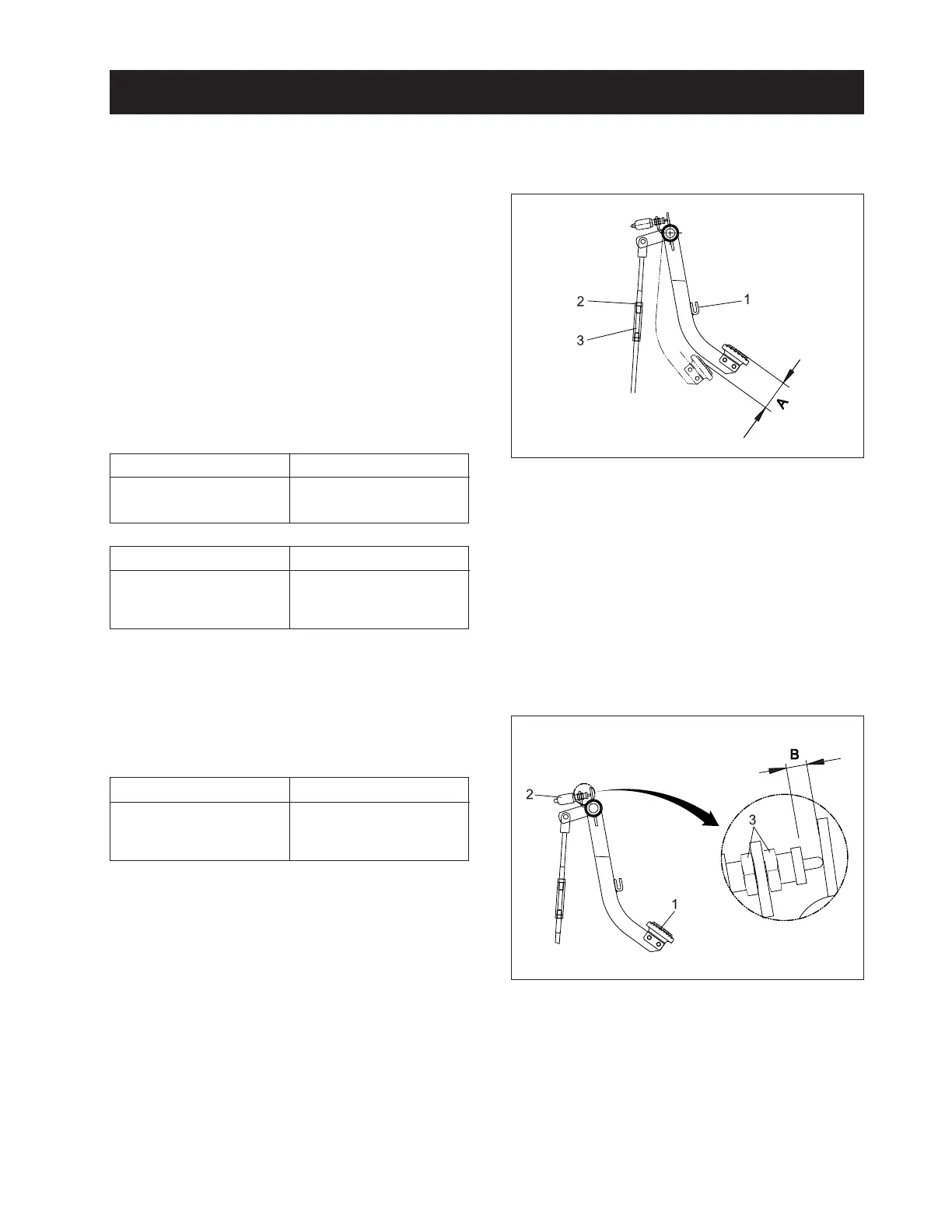

A. First Stage (Clearance Adjustment of Brake
Pedal)
1. Disengage the brake pedal connection hook (1) and
measure the clearance of left and right pedals.
2. If the clearance of left and right pedals exceeds the
specified limit, loosen lock nut (2) and adjust clear-
ance using a turn buckle (3).
3. If setting clearance of pedal, tighten firmly with lock
nut.
IMPORTANT:
• Clearance of pedal should be equal in left and right.
Sect. Specified
Clearance of brake pedal
(A)
25 ~ 35 mm
0.98 ~ 1.38 in.
Sect. Specified
Gap between left and
right when depressing
brake pedal
Within 5 mm
Within 0.197 in.
(1) Connection Hook (3) Turn Buckle
(2) Lock Nut
6. BRAKE PEDAL
615W606A
1. Check the clearance between brake pedal (1) and
stop switch (2) and if it exceeds the specified limit,
loosen the lock nut (3) and readjust.
Sect. Specified
Clearance between
brake pedal and stop
switch (B)
0 ~ 1 mm
0 ~ 0.039 in.
(1) Brake Pedal (3) Lock Nut
(2) Stop Switch
B. Second Stage (Gap Adjustment of Stop
Switch)
