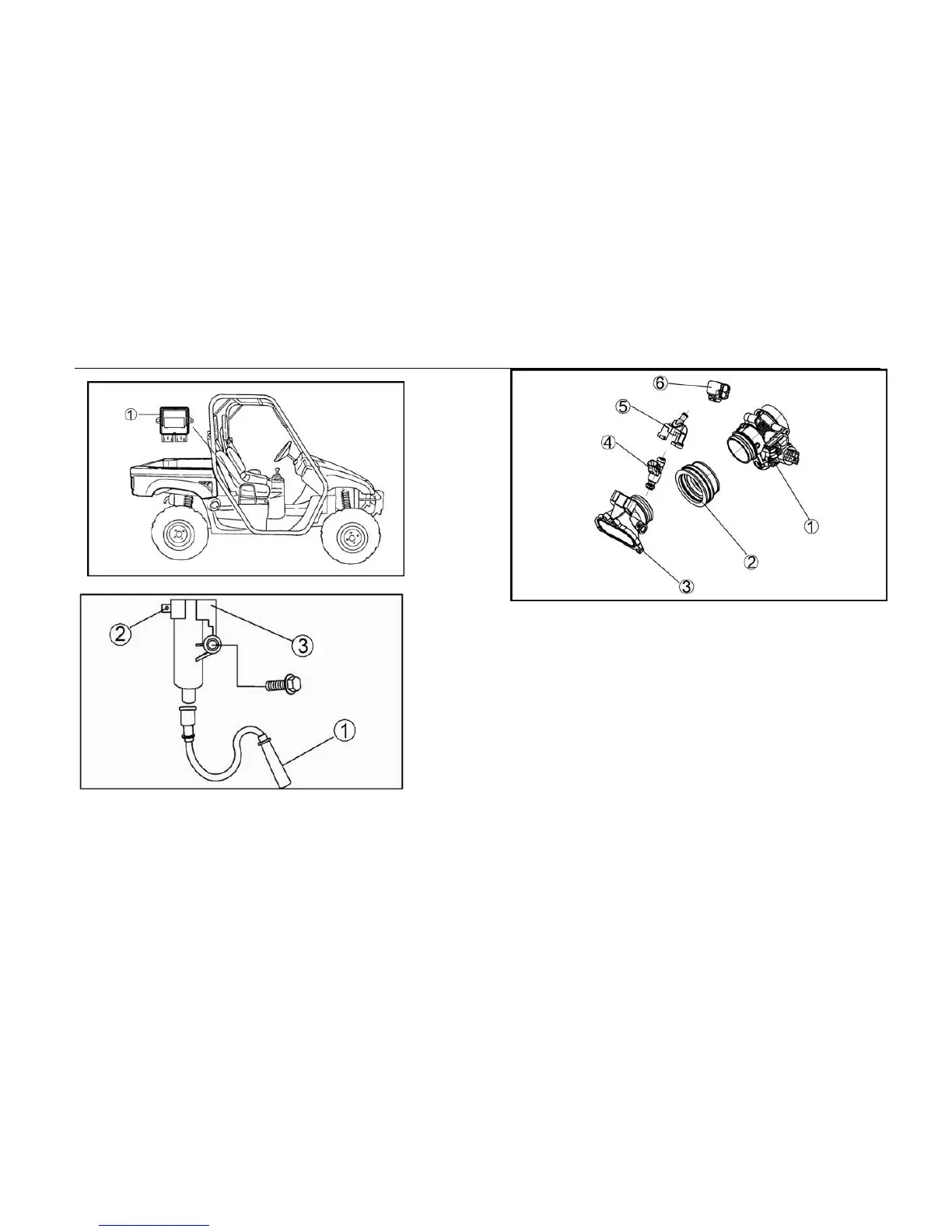

1. ECU
8-10 Periodic Maintenance and Adjustment
1. High voltage wire 2.Ignition signal plug
3. Ignition coil
1. Throttle 2. Intake Pipe Joint
3. Intake Pipe 4. Fuel injector
5. Fuel injector seat
6. Intake temperature sensor/pressure sensor
