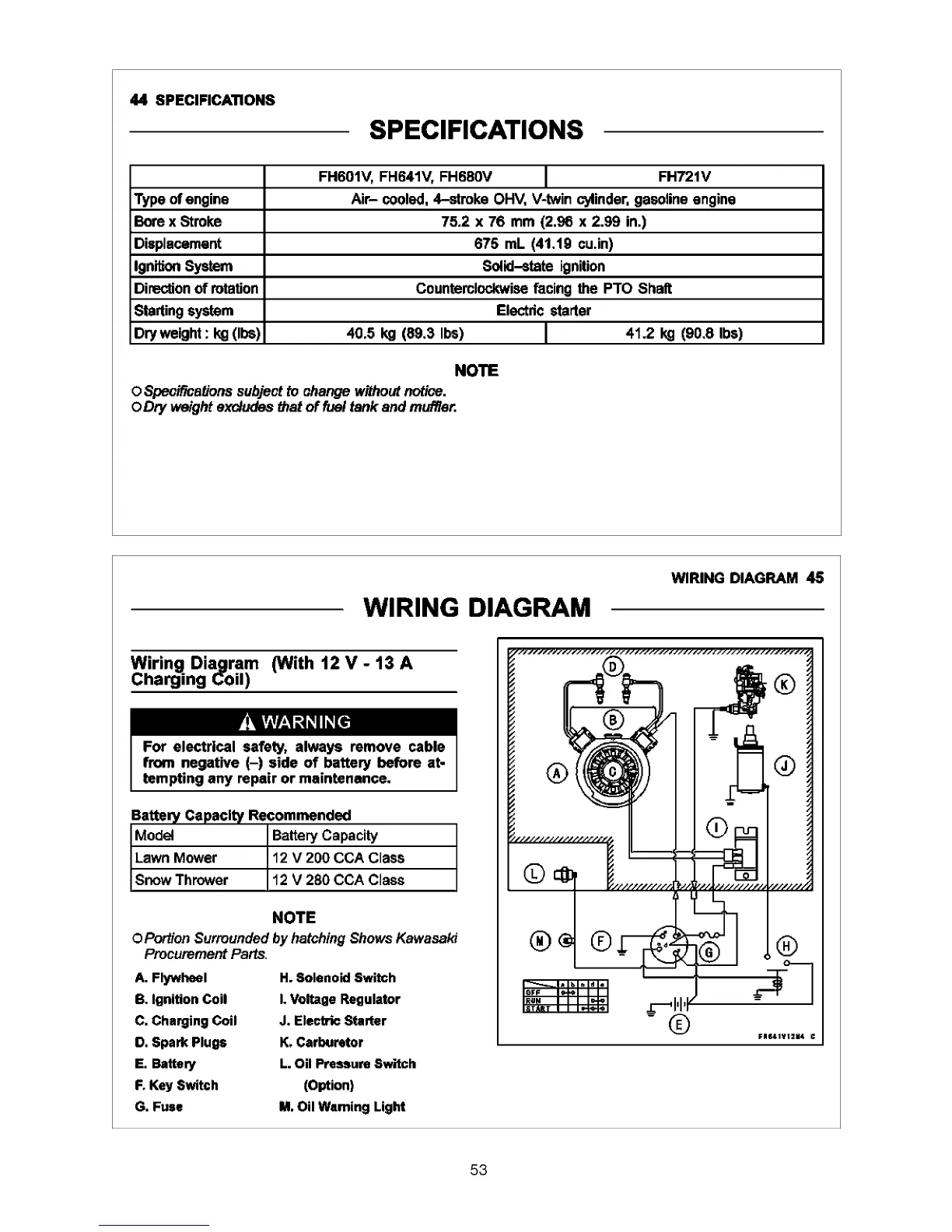

44 SPECIFICATIONS
SPECIFICATIONS
FH601V, FH641V, FH680V FH721V
Type of engine Air- cooled, 4-stroke OHV, V-twin cylinder,gasolineengine
Bornx Stroke 75.2 x 76 mm (2.96 x 2.99 in.)
Displacement 675 mL (41.19 cu.in)
IgnitionSystem Selid-state ignition
Directionof rotation Counterclockwisefacing the PTO Shalt
Startingsystem Electdc starter
Dryweight: kg (Ibs) 40.5 kg (89.3 Ibs) 41.2 kg (90.8 Ibs)
NOTE
0 Specificationssubjectto change withoutnotice.
0 Dry weightex_udes thatof fueltank and muffler.
WIRING DIAGRAM
WIRING DIAGRAM 45
Wiring Diagram (With 12 V - 13 A
Charging Coil)
Batten,/Capacit7 Recommended
Model BatteryCapacity
Lawn Mower 12 V 200 CCA Class
Snow Thrower 12 V 280 CCA Class
NOTE
0 PortionSurroundedbyhatchingShowsKawasaki
Procurement Parts.
A. Flywheel
B. Ignition Coil
C. Charging Coil
D. Spark Plugs
E. Battery
F, Key Switch
G. Fuse
H. Solenoid Switch
I. Voltage Regulator
J. Electric Starter
K, Carburetor
L. Oil Pressure Switch
(Option)
M, Oil Warning Light
©
®
53
