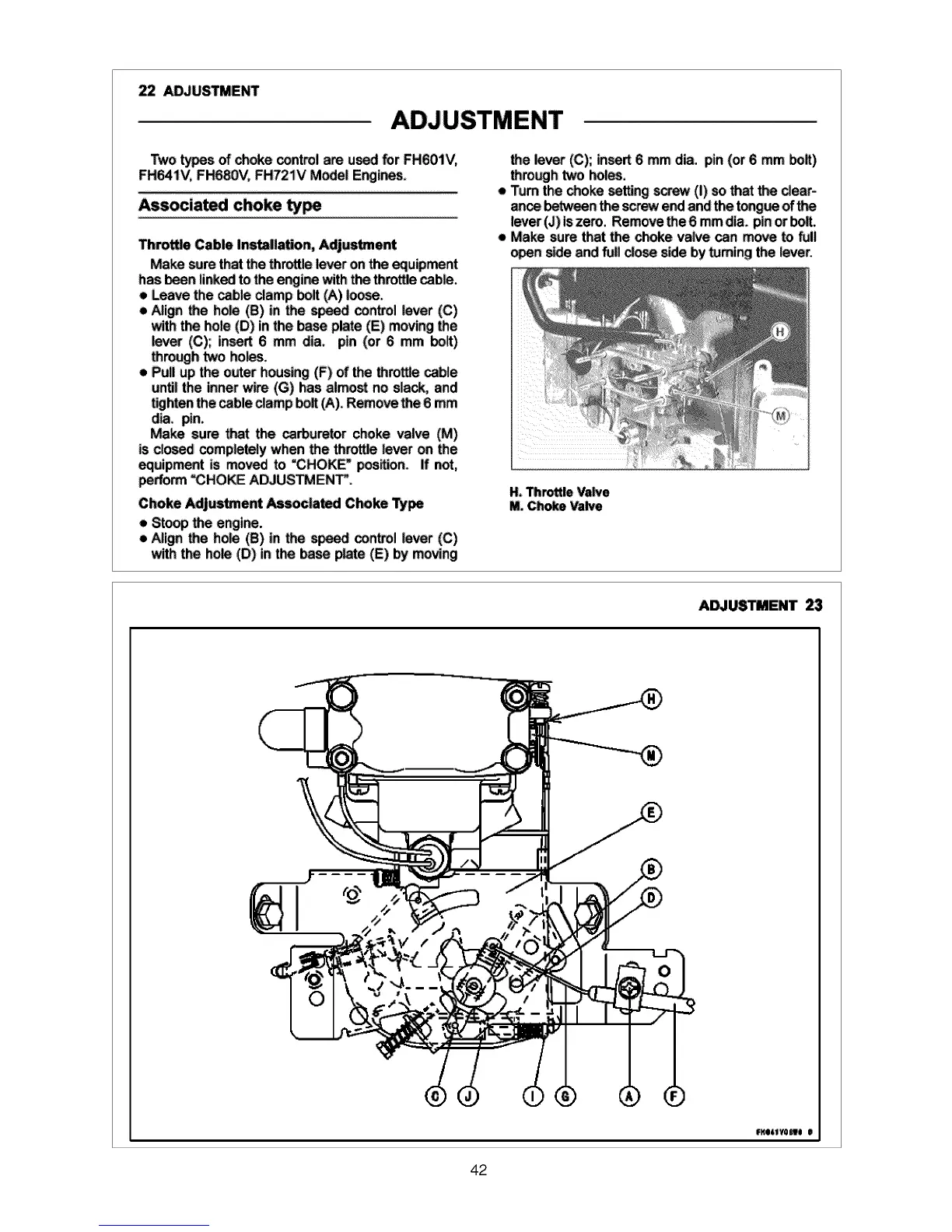

22 ADJUSTMENT
Twotypesof ct-_e controlare used_r FH601V,
FH_IV, F_0V, FH721V ModelEngine.
Associated choke type
Throttle Cable Installation, Adjustment
Make_re thatthethroffieleveronthe equipment
hasbeenlinkedtothe enginewiththethrottle _ble.
• Leavethe_ble damp bolt (A) loose.
• _ign the hole(B) in the wed contro_lever (C)
withthe hole(D)in thebase plate (E) movingthe
lever (C); in_ 6 mm diao pin (or 6 mm bolt)
throughtwo holes,
• Pullupthe outerhousing(F)of the throttle cable
untilthe innerwire (G) hasalrr'_ostno slack, and
tightenthe_ble damp bok (A),Removethe6 mm
dia, pin.
Make sure _ the carburetor choke valve (M)
isclosedcompletely_en the throttle lever on the
equipmentis movedto _HOKE" position. If not,
perform=CHOKEADJUSTMENT.
Choke Adju_ent Assoc|ated Choke _pe
• Stoop the engine.
• _ign the hole (B) in the wed contro] lever (C)
with the hole (D) in the base plate (E) by m_ng
the lever(C); inse_ 6 mm dia. pin (or 6 mm bolt)
throughtwoho_,
• Turnthe _oke settingscrew(I) sothat_ clear-
ante betweenthescrewendand the tongueofthe
lever(J)iszero, Removethe 6 mmd_, pinorboR.
• Make surethat the choke valve can moveto full
opensideand_il closesideby turningthe lever.
H. Throttle Valve
M. Choke Valve
ADJUSTMENT 23
