4. COUPLING

Click for CRUISE MASTER Coupling User Manual

Click for CRUISE MASTER D035 Coupling Hitching Youtube Video

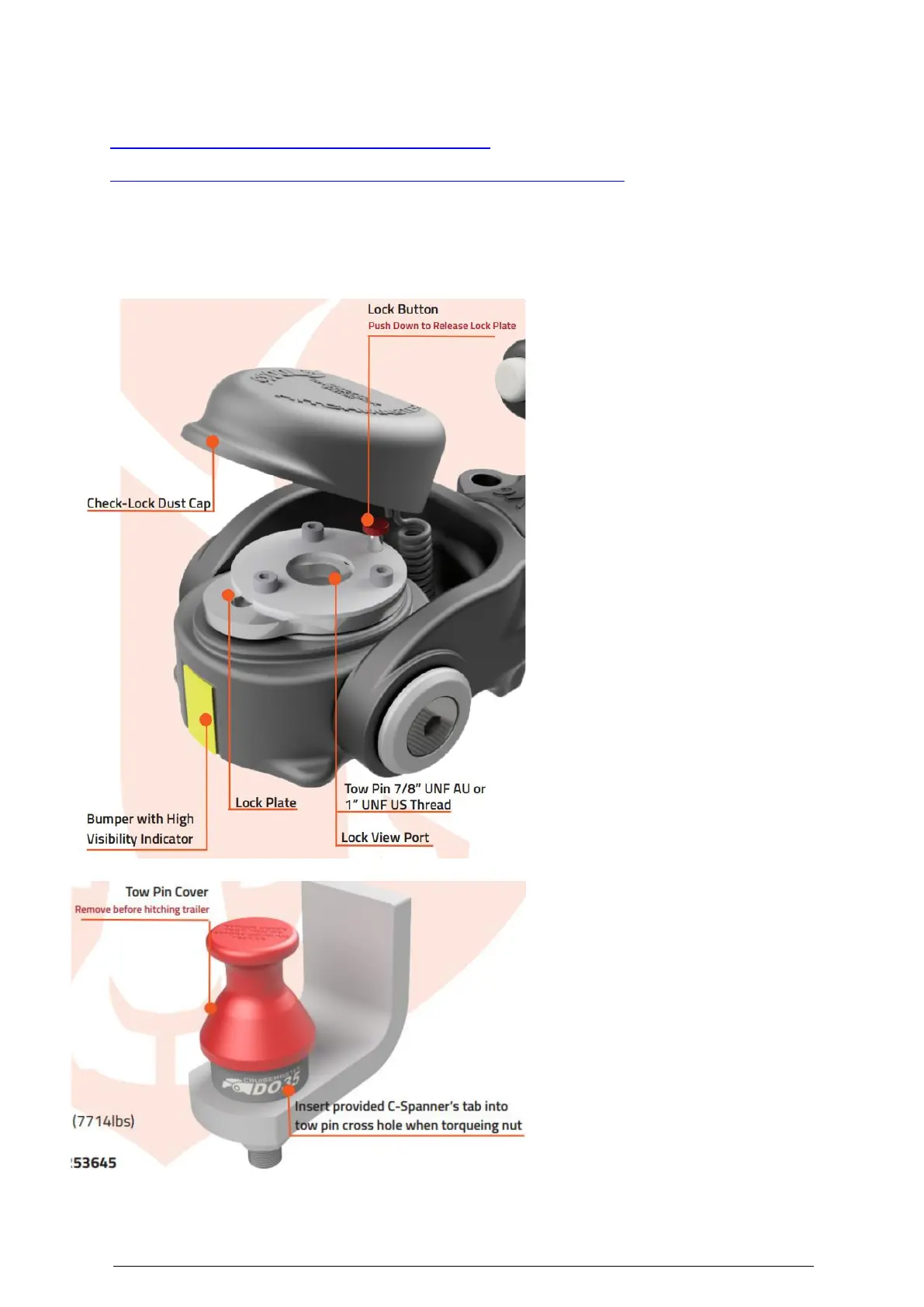

The C16 is fitted with a Cruise Master DO35 Off-Road Coupling. It is ADR Rated to 3500 kg. For

more information and maintenance instructions, refer to the Cruise Master D035 Coupling

User Manual.

1. Remove Tow Pin Cover.

2. Check Tow Pin and Universal

surfaces are clean and lightly

greased to avoid premature wear.

3. Set the coupling to unlock by

pushing down the Red Lock Button

and pushing back the Lock Plate

towards the Red Lock Button.

4. Raise the height of the trailer so

the coupling is above the vehicle tow

pin using the jockey wheel.

5. Align the coupling and tow pin by

moving the vehicle or trailer and

then lower the coupling onto the

tow pin using the Jockey Wheel.

Make sure it is fully seated on the

tow pin, you will see the tow pin

through the locking plate via the

Lock View Port.

6. Once in position, push the Red

Lock Button to set the lock plate

back into locked position and you

will hear an audible click.

7. Secure the Check-Lock Dust Cap

by the back edge first and then

pushing down the front of the cap.

You will hear a snap when it is

secured correctly.

NOTE: Keep hands and fingers clear when attaching and ensure trailer safety chains are

attached whilst coupling and uncoupling.
