20. TOILET
Click for THETFORD Toilet User Manual
The C16 ensuite includes a Thetford Cassette Toilet. For more information around the
maintenance and operation of the toilet please refer to the Thetford Toilet user manual
provided. The toilet is made up of two parts: a permanently fixed part and a waste tank that
is accessible from the outside. The removable waste tank is located under the toilet bowl and
can be removed via a door on the outside of the caravan.

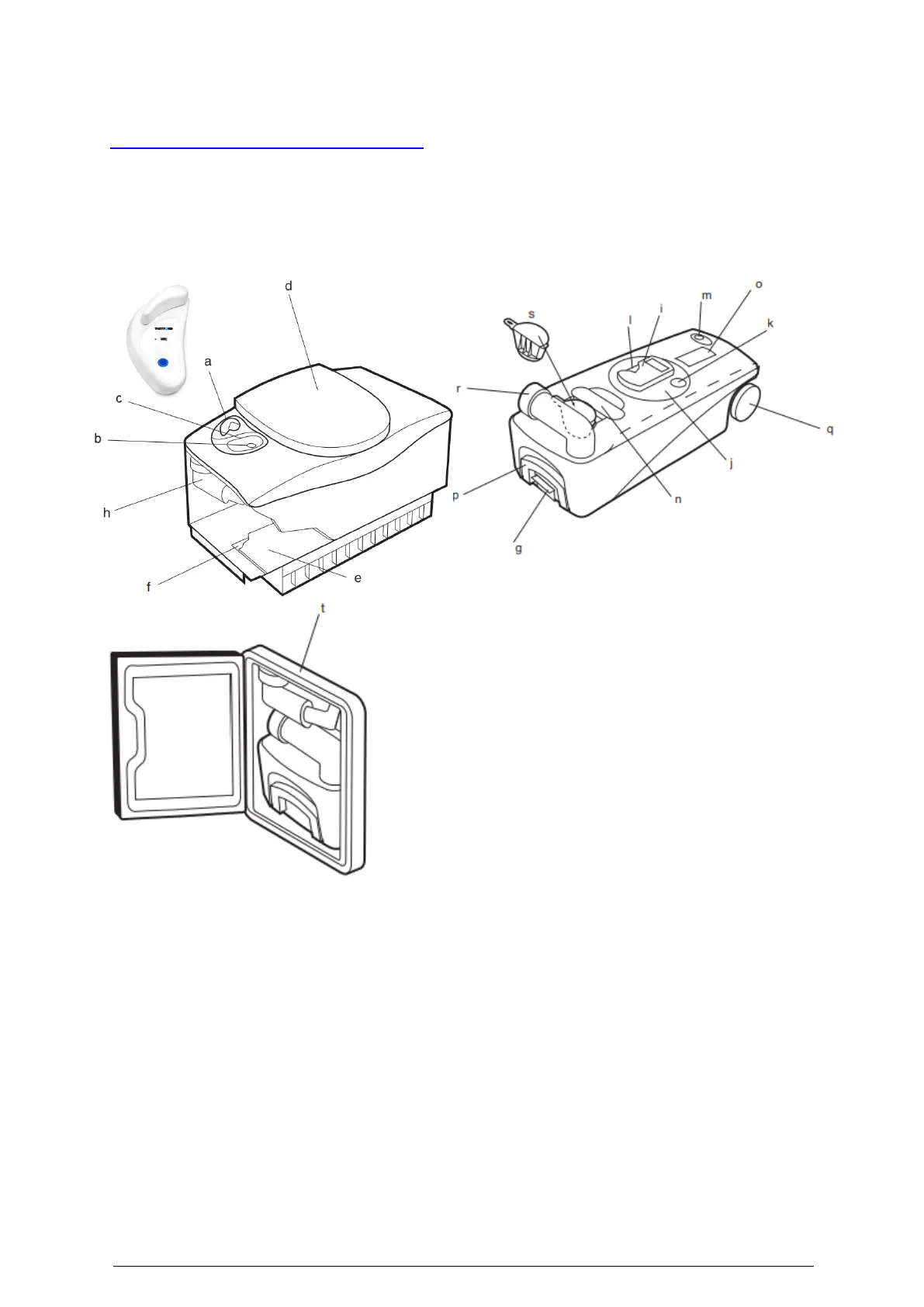

a. Handle to open and shut the valve blade.
b. Flush knob: when this is pressed, an electric
pump fills the bowl with water.
c. Level indicator display: the red LED on the display
lights up when the waste tank is full. When the flush
knob is pressed briefly, the display shows the level in the
waste tank and the level in the water tank (C-402X).
d. Removable seat and cover.
e. Cover plates.
f. Storage compartment for toilet fluids (only the
tall model).
g. Safety catch: holds the waste tank in place.
h. Water filling funnel for easy filling of the flush water tank.
i. Cover: guarantees optimal hygiene. Opens when the waste tank is in the toilet and
closes when the waste tank is removed.
j. Removable mechanism.
k. Valve blade opener.
l. Valve blade / valve seal.
m. Vent plunger: for emptying without splashing.
n. Upper handle.
o. Automatic pressure release vent that ventilates the waste tank when it is in the
cassette toilet. Avoids excessive pressure in the waste tank.
p. Pull-out handle for easy transport of the waste tank.
q. Wheels.
r. Rotating emptying spout allows waste tank to be easily and hygienically emptied.
s. Water filling extension.
t. Access hatch to waste tank and water filling funnel: lockable from the outside.
