© CUB CAMPERS • C16 OWNER’S MANUAL • REVISION 1 - 6/02/2023 PAGE 20 of 59

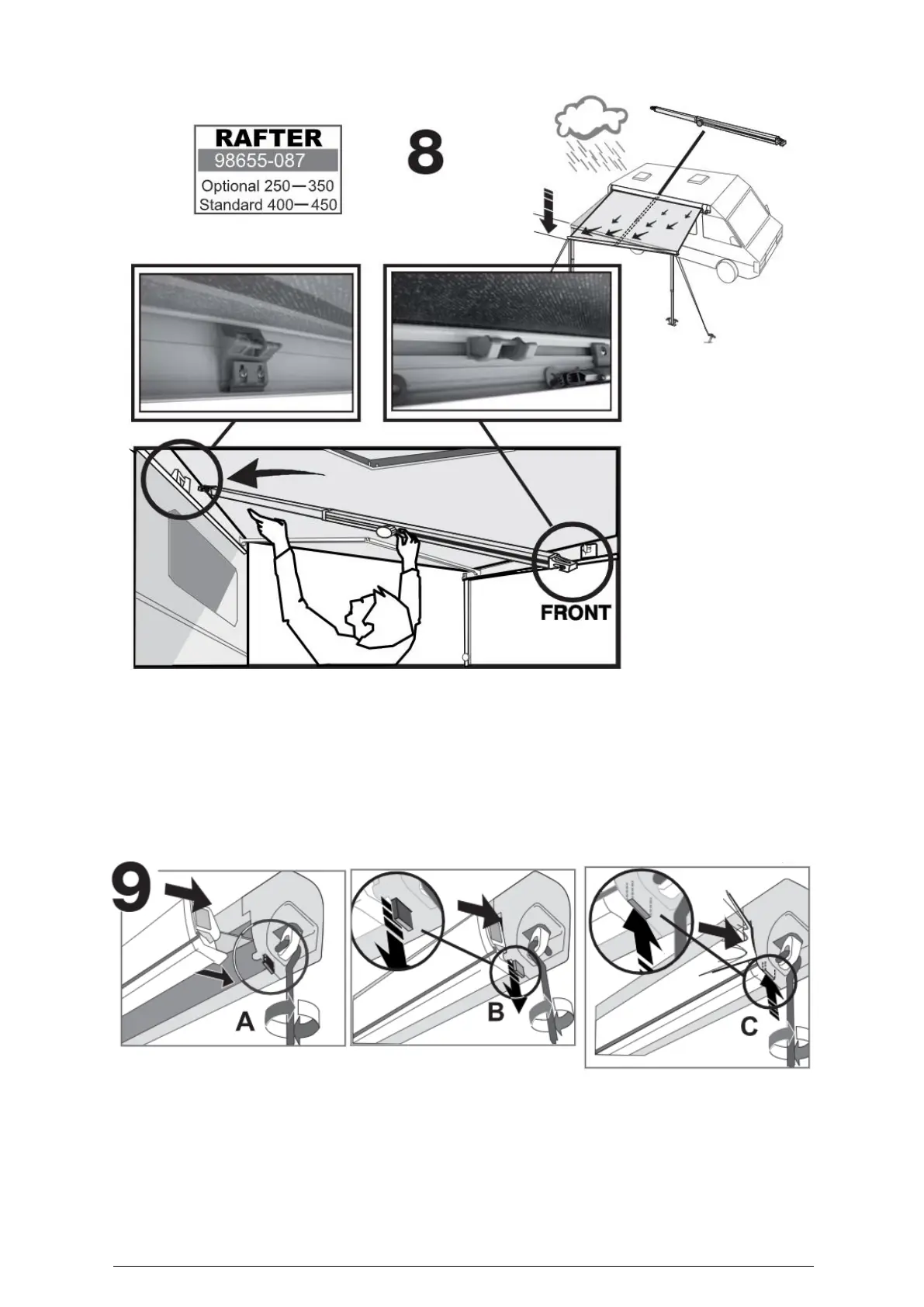

8. Install the tension rafter using the anchors shown in the figure. We remind you that
the awning is a sun protection, so please roll up your awning in case of rain, wind, or
snow. Otherwise, please take the following precautions: lower one side of your
awning, so that water can flow away and place the tension rafter as shown in the
figure.
To put away the awning, use the awning handle to wind up the awning.
9. A. The awning is open. B. The awning is about to close. The red flag is visible. C. When
the awning is completely closed, the red flag is no longer visible. The awning is now
properly closed.
