© CUB CAMPERS • C16 OWNER’S MANUAL • REVISION 1 - 6/02/2023 PAGE 34 of 59
EMPTYING TOILET WASTE TANK

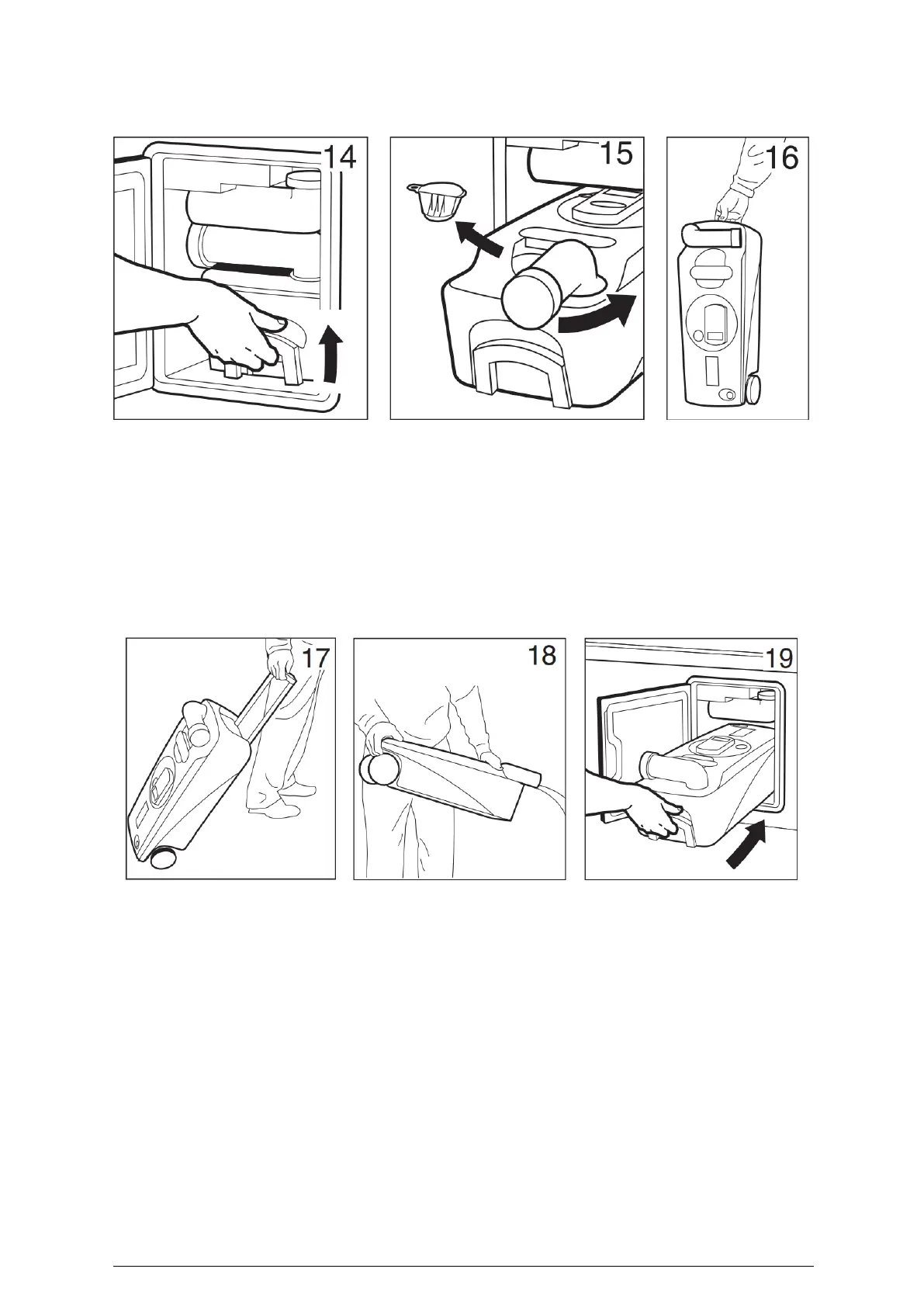

14. Make sure that the valve blade is closed. Open the access door located outside the
vehicle. Pull the safety catch upwards and remove the waste tank.
15. Remove the water filling extension first to avoid it getting lost during the emptying of
the waste tank and place it back in the hatch.
16. Stand the waste tank upright (Pull out handle at the top, wheels at the bottom). Press
the handle down and move it away from the waste tank until it snaps out of its locked
position.
17. Pull the handle up and wheel the waste tank to an authorised waste dump.
18. Push the handle back. Turn the emptying spout upwards and remove the cap from the
spout. Hold the waste tank by the upper handle with one hand, while placing your
other hand by the rear handle so that during emptying you can operate the vent
plunger with your thumb. To empty the tank without splashing, depress the vent
plunger while emptying the tank. After emptying, flush the tank thoroughly with water.
Also clean the valve blade with water.
NOTE: The vent plunger should only be pressed once the emptying spout is pointing
downwards.
19. If required, make the toilet ready for use once again (steps 8 and 9). Return the water
filling extension to its original position on the waste tank. Slide the waste tank into the
toilet and close the access door.
