Cube AERIUM Series User Manual

| 13 12 |
AERIUMAERIUM
Part No. Bezeichnung Part Name
1 Armauflage armrest pad
2 Befestigungsschraube für
Armschale
armrest fixing screw
3 Armschale armrest
4 Lenkerendstopfen barend plug
5 Klemmschraube clamp screw
6 Unterlegscheibe für
Extension-Klemmung
clamp washer
7 Klemmkeil Teil 1 clamp wedge, part 1
8 Klemmkeil Teil 2 clamp wedge, part 2
9 Befestigungsbracket bracket
10 Extension extension
11 Zylindermuttern cylindrical nut
12 5mm Sicherheitsbrücke (ab
40mm Spacerhöhe)
5mm safety-bridge (for spacer
heights > 40mm)
13 5mm Spacer 5mm spacer
14 10mm Spacer 10mm spacer
15 20mm Spacer 20mm spacer
16 40mm Spacer 40mm spacer
17 Unterlegscheiben für
Bracket-Klemmung
washer for bracket screws
18 Befestigungsschraube für
Brackets
bracket screws
19 Vorbauklemmung stem clamp
Part
No.
Part Name
1 armrest pad
2 armrest xing screw
3 armrest
4 barend plug
5 clamp screw
6 clamp washer
7 clamp wedge, part 1
8 clamp wedge, part 2
9 bracket
10 extension
11 cylindrical nut
12
5mm safetey-brige (for spacer
heights 40 mm)
13 5mm spacer
14 10mm spacer
15 20mm spacer
16 40mm spacer
17 washer for bracket screws
18 bracket screws
19 tem clamp

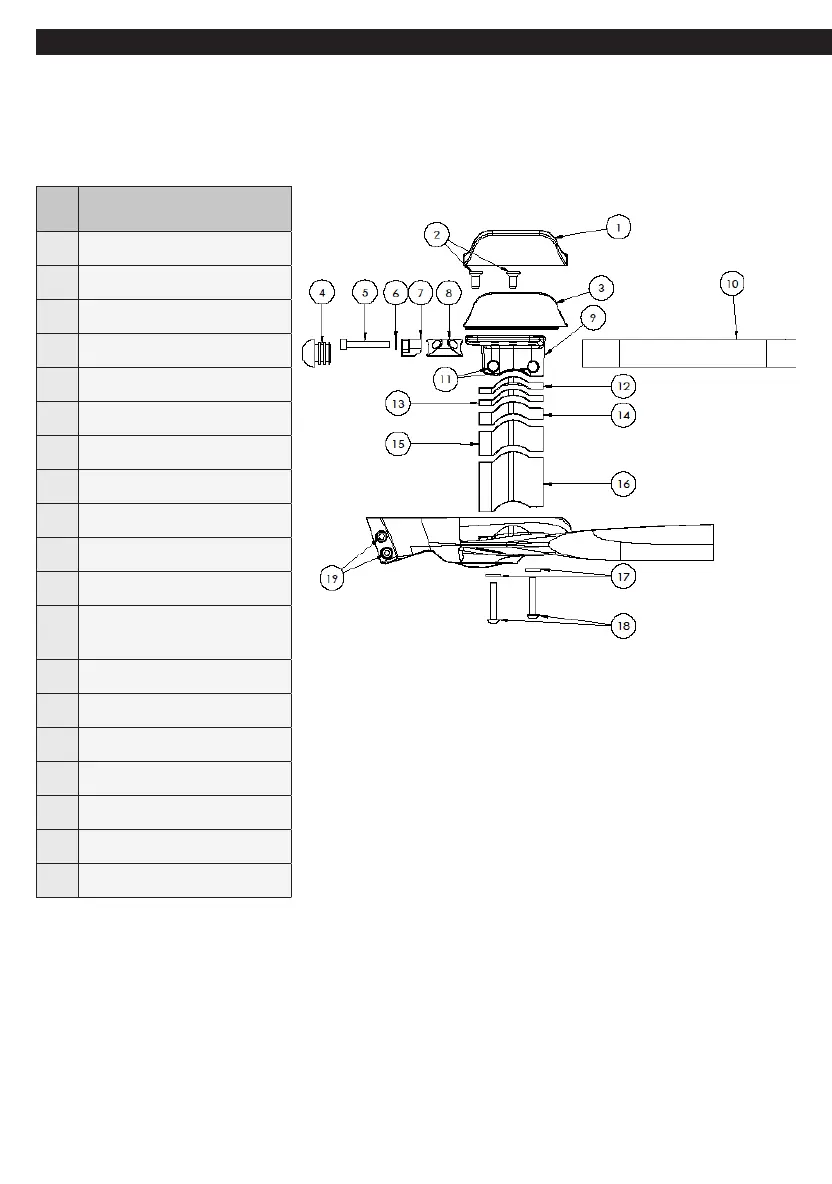

9 Cockpit
9.1 Overview of mounted parts

Cube AERIUM Series Specifications

General

Frame Material	Carbon
Fork Material	Carbon
Fork	CUBE AERIUM C:62
Headset	FSA Orbit 1.5E
Stem	Cube Aerium C:68 Integrated
Handlebar	Cube Aerium C:68 Integrated
Seatpost	Cube Aerium C:68 Aero
Brakes	Shimano 105
Shifters	Shimano 105
Front Derailleur	Shimano 105
Rear Derailleur	Shimano 105
Chain	Shimano 105
Crankset	Shimano 105
Bottom Bracket	Shimano PressFit
Tires	Schwalbe One
