Installing the storage system
The mounting bolts must project out at
least 7mm in order to a x the storage
system.

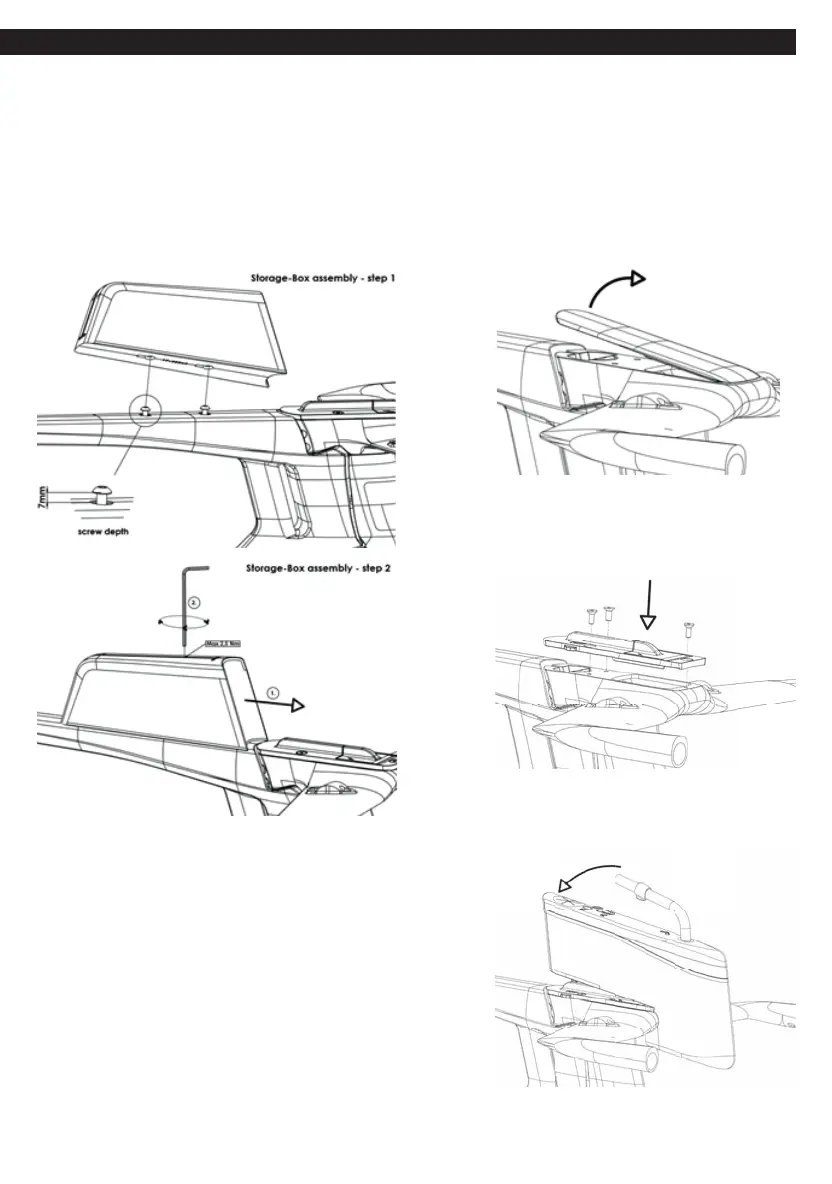

After screwing, position the storage system
on the top tube using the holes for the
screw heads, as shown.
Slide the storage system as shown towards
the front, (in the direction of the cockpit)
(1), until the screw heads engage into the
intended slot. A x the screws (2), taking
into account the speci ed torque (maxi-
mum of 2.5 - 3 Nm).
12.2.2
Cleaning the storage system
The storage system must be removed from
the top tube for cleaning purposes. Pressure
from the inside will remove the cap, so as to
be able to better reach the interior. Please
use warm water and washing-up liquid for
washing. Alternatively, wash at a maximum
of 45 degrees in the dishwasher.
13
Hydration system instruc-
tions
13.1 Installation of hydration box
Remove the front cover by lifting as shown,
until the magnetic connection has been
disengaged. Then pull the cover backwards
and o .
Attach the magnetic adapter plate to the
handlebars, as shown, using three screws,
taking into account the speci ed torque
(max 2.5 Nm).
Introduce the bottle to the handlebar from
the front. The magnetic click-system pulls
the bottle into the correct position and
holds it rmly in place.
