AUTOMATIC PARTS WASHER Maintenance Guide
SECTION 5: MAINTENANCE AND REPAIR
MAINTAINING THE MACHINE
To ensure optimum performance and trouble-free op-
eration, observe the following maintenance schedule
consistently.
Daily Maintenance
 •Checkthewaterlevel;addwaterifnecessary.
 •Cleanthedebrisscreen.
Weekly Maintenance
 • Detergent Concentration Level: Check detergent
level weekly to maintain concentration level, which
decreases when water is added. The pH level of this
detergent must be in accordance with the detergent
manufacturer's recommendation.
 •Removeoilandgreasefromthewashsolutionby
using the oil skimmer.
 • Foroilyorextremelysoiledparts,itisrecommended
the oil skimmer be operated on a more frequent
basis.
 •Examinespraynozzles;cleanandalignifneces-
sary (See Cleaning and Aligning the Spray
Nozzles).
 •Wipedowntheexteriorofthemachineusingspray
degreaser and a soft, damp cloth. TO PREVENT
ELECTRICAL COMPONENT FAILURE, DO NOT
SPRAY THE MACHINE WITH WATER.
NOTE: Degreaser spray and a damp cloth will usu-
ally remove all dirt and grime from the machine. For
particularly stubborn soap deposits, use a soft cloth
dampened with warm solution from the wash chamber.
Monthly Maintenance
 •Drain and clean out the sump chamber
(See Cleaning out the Sump).
Cleaning and Aligning the Spray Nozzles
To ensure optimum cleaning performance, it is important
that you examine the spray nozzles periodically and
clean and align them if necessary.
To clean a plugged nozzle, remove it from the spray pipe
and use a small wire brush to free the nozzle of any
obstructions. When you replace the nozzle on the spray
pipe, make sure you align it according to figure on the
following page to maintain a proper spray pattern.
NOTE: The spray nozzles are sized and positioned to
optimize the distribution of cleaning solution in the wash
chamber. If you remove the nozzles make sure you
replace them in the correct position on the appropriate
pipe. Spray nozzle specifications are stamped on the
face of each nozzle, as shown.

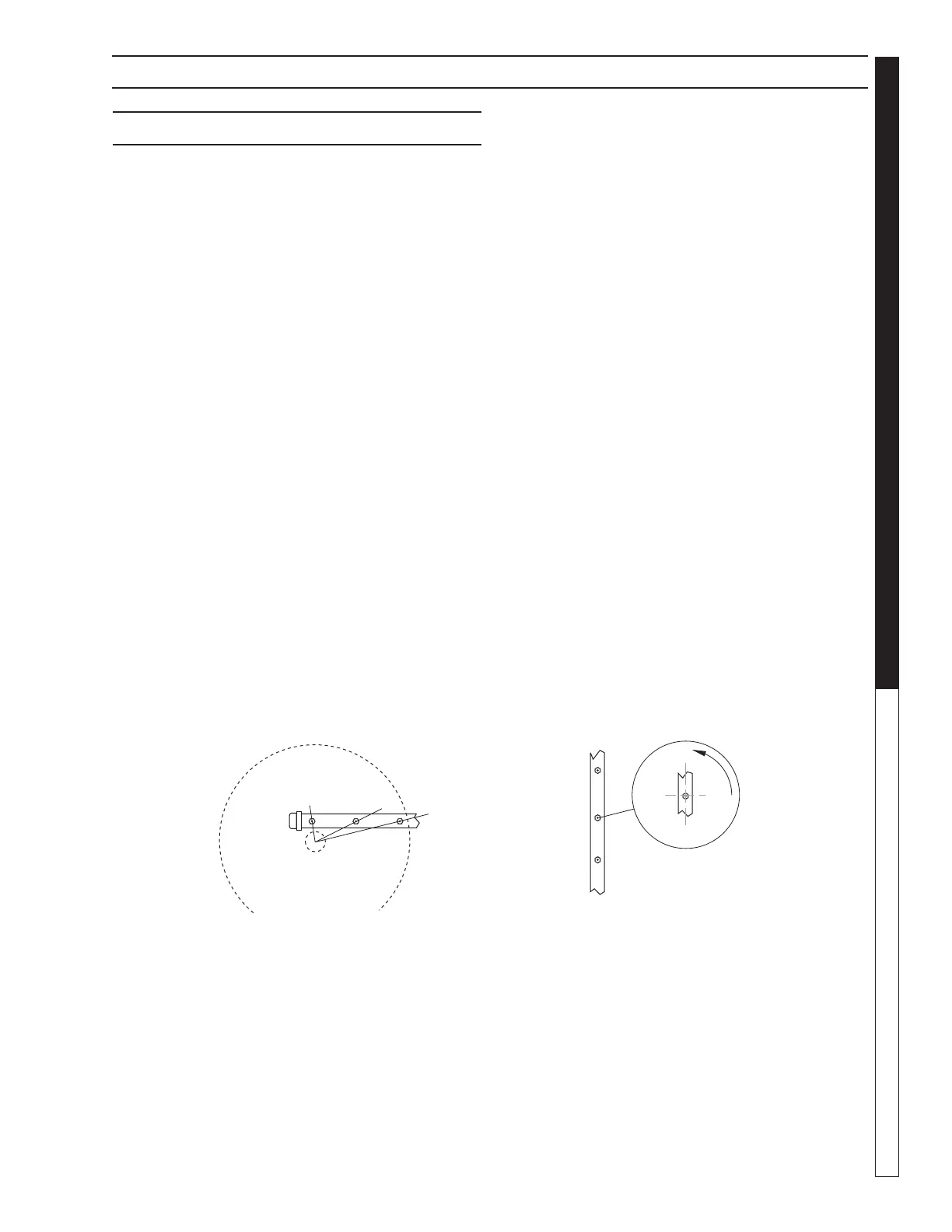

Align The Notch In
Each Spray Nozzle
With The Center Of
The Turntable
TOP & BOTTOM NOZZLES SIDE NOZZLES
Rotate Each Nozzle
Approximately 3°
From The Center Line
Of The Pipe
3°
Turntable
C
L
