Page 12 - Revision:EU-2020-10-13

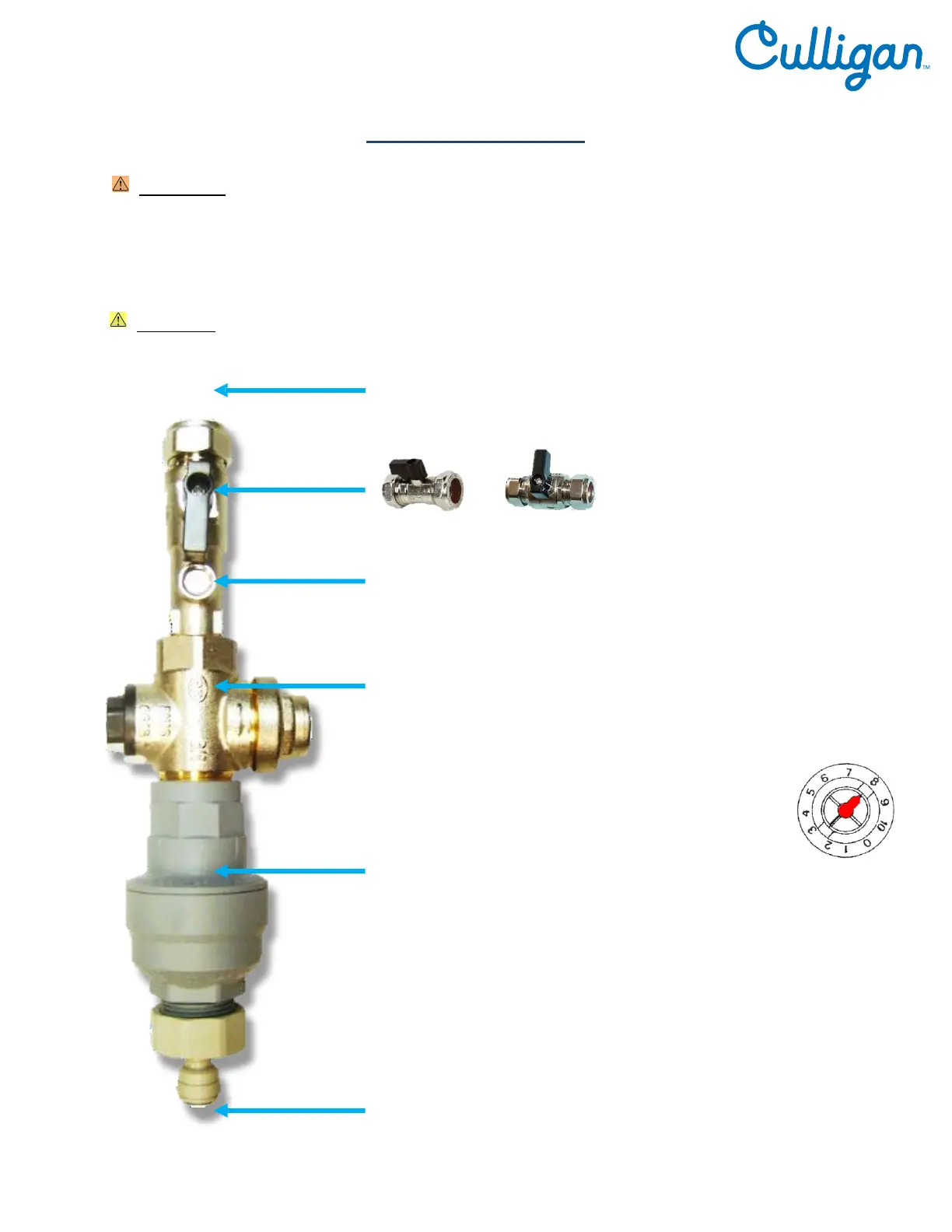

INSTALLATION RAIL
WARNING! ALWAYS USE INSTALL RAIL. It is required to use an installation rail for the
installation of any Culligan Water Treatment System. Failure to use an installation rail can
result in damage due to excessive pressures over a prolonged period of time and no additional
leak protection. Please check local water bylaws, in some countries an installation rail is a
legal requirement. Parts required may vary due to local regulations. Always refer to local
installation guidelines and regulations
CAUTION! ALWAYS INSTALL VERTICALLY. Do not install installation rail horizontally as this will
affect the performance of the water block.
Water inlet – 15mm compression fitting
Isolation valve – Quarter turn to isolate.
Open
Double check valve – only allows water to flow one way, no
adjustment needed.
Pressure Reducing Valve – Reduces the pressure from any high
pressure down to 3bar +/- 0.5bar. The pressure reducing valve is an
essential part of the installation rail and ensures that the Culligan
Water Treatment System is not exposed to high pressures over a
prolonged period of time.
Water block – The water block will shut the flow of
water in the event that a leak has taken place. This
works by measuring the velocity of water and shutting
off water flow. Adjustment and reset can be made by
pressing or turning the red dial located on the front
face of the water block.
Adjustment Settings: 1.3 to 13.2 gallons(6-60Litres)
*Note Every notch increases the set volume by 1.5 +/- gallons
(5 +/- litres)
Pressure Requirements: 10 - 125 PSI (0.7 - 8.6 bar)
Ambient Temperature: 35 - 140°F (2 - 60°C)
Fluid Temperature: 35 - 158°F (2 - 70°C)
Flow Rate: 0.53 - 7.9 GPM (2 - 30 Lpm)
Resistance to Bursting: 725.19 PSI at 77˚F (>50 bar at 25˚C)
¾” to ¼” John Guest adaptor – Allows the connection of ¼” John Guest
PE pipework from the install rail to the bulkhead of the machine.
