Culligan D1021870 - Electrical Wiring Diagram

24 Culligan® All Purpose Cooler
24 Cat. No. 01023621
Hot and Cold
Mark Description
0V Thermostat for overheat
1V Thermostat for overheat
H Hot water heater
LED1 Ambient water display
LED2 Hot water display
LED3 Cold water display
MC Motor for compressor
PF Power fuse
PS1 Heater/Compressor switch

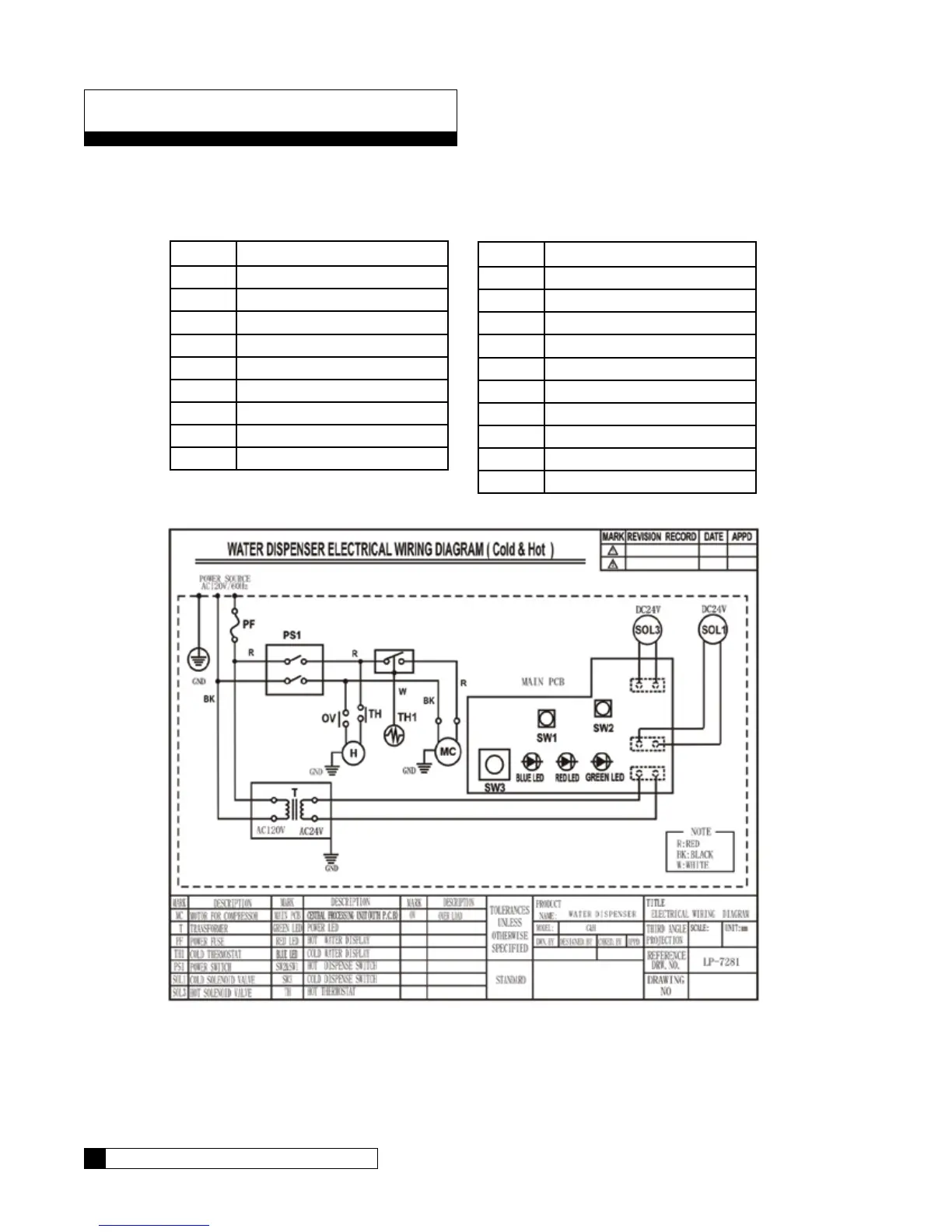

Electrical Wiring Diagram
Mark Description
SOL 1 Cold solenoid valve
SOL 2 Hot solenoid valve
SOL 3 Ambient solenoid valve
SW1 Ambient mode switch
SW2 Hot mode switch
SW3 Water out switch
T Transformer
TH1 Cold thermostat
HR Hot thermostat
SW4 Filter timer reset switch
