Brine Valve “A” Dimension
The brine valve contains a brine float which can serve as a backup refill shutoff in the event of a failure,
such as a power outage when in the refill position. The float level should be set based on the salt dosage
setting. Refer to Figure 18.
1. Remove nut retaining brine valve to brine chamber.
2. Lift the brine valve from the brine chamber.
3. Find the correct “A” dimension from Appendix A in the HE Softener Installation/Operation
manual (PN 01021606).
4. Set the distance from the top of the filter screen to the base of the float accordingly. The slight
difference in height when the float is pulled up or down is negligible.
5. Re-install into brine chamber and replace nut.
“A” Dimension

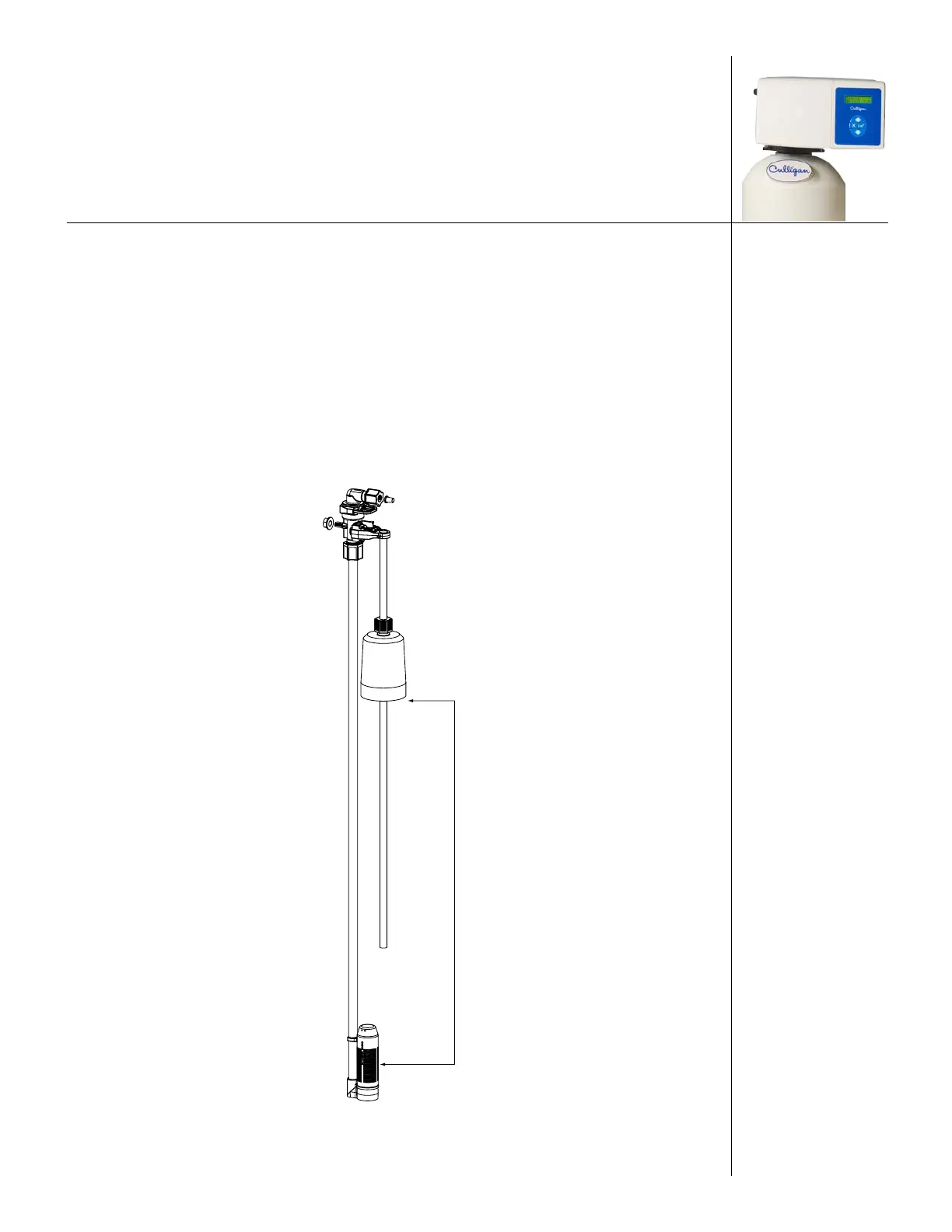

Figure 18. Brine valve “A” dimension.
