Culligan MEDALLIST SERIES Service Manual

10 CULLIGAN MEDALLIST SERIES
™

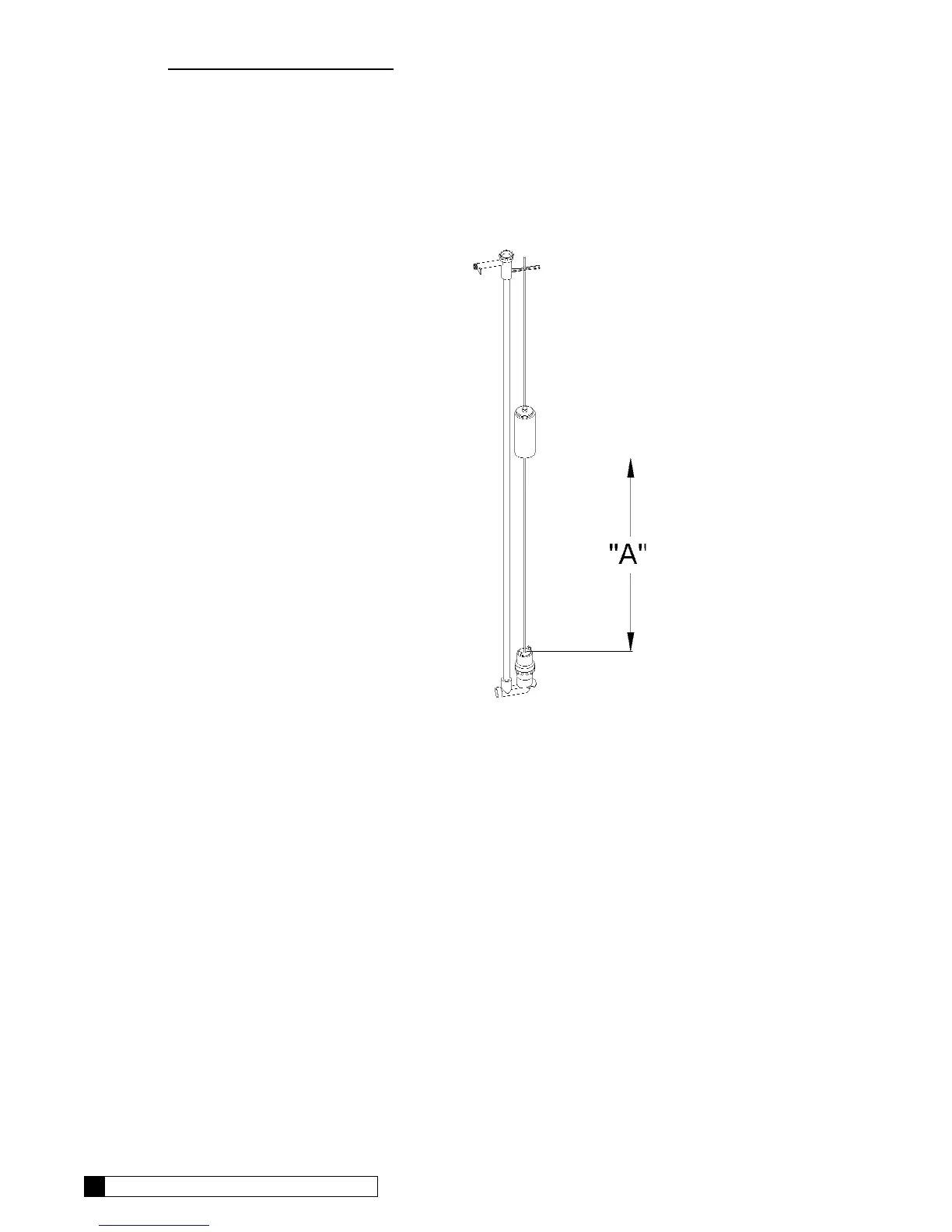

FIG. 2
BRINE VALVE "A" DIMENSION
The brine valve contains a oat-actuated safety shut-off device to prevent overow of the brine tank in the unlikely
case of an electrical or mechanical failure during the brine tank rell cycle.
It is recommended that the brine valve oat be used as intended, that is, as a secondary, safety shut off. Remember,
the timer mechanism provides the primary rell shut-off. To use the oat as a safety shut-off, refer to Table 4 for
the salt dosage and brine tank size being used. The "A" dimension is the distance between the lter screen and the
bottom of the oat (Figure 2) when the oat stem is in its fully raised position; adjust the oat and rubber grommets
accordingly.

Culligan MEDALLIST SERIES Specifications

General

Type	Water Softener
Flow Rate	Up to 12 gallons per minute
Resin Type	High-capacity resin
Dimensions	Varies by model
Weight	Varies by model
Tank Material	Fiberglass
