Culligan MEDALLIST SERIES Service Manual

12 CULLIGAN MEDALLIST SERIES
™
off
SETTING THE MICROPROCESSOR
The microprocessor senses when it is installed as a Soft-Minder
®
control. Adding or removing any connection to
the board will automatically reset the microprocessor to the factory settings.
seconds and then show the current status. Toggle between
“OFF” (Timeclock backup is off) and “ON” (Timeclock
backup
is on) with the “+” or “-” key.
Note: Changing this setting will not change any of the
programmed values and will load the default Timeclock
Backup value of 3 days. Programming step 7 will be activated
when this is set to On.
Note: This option will only be available when the owmeter is
plugged into the control
5 English or Metric

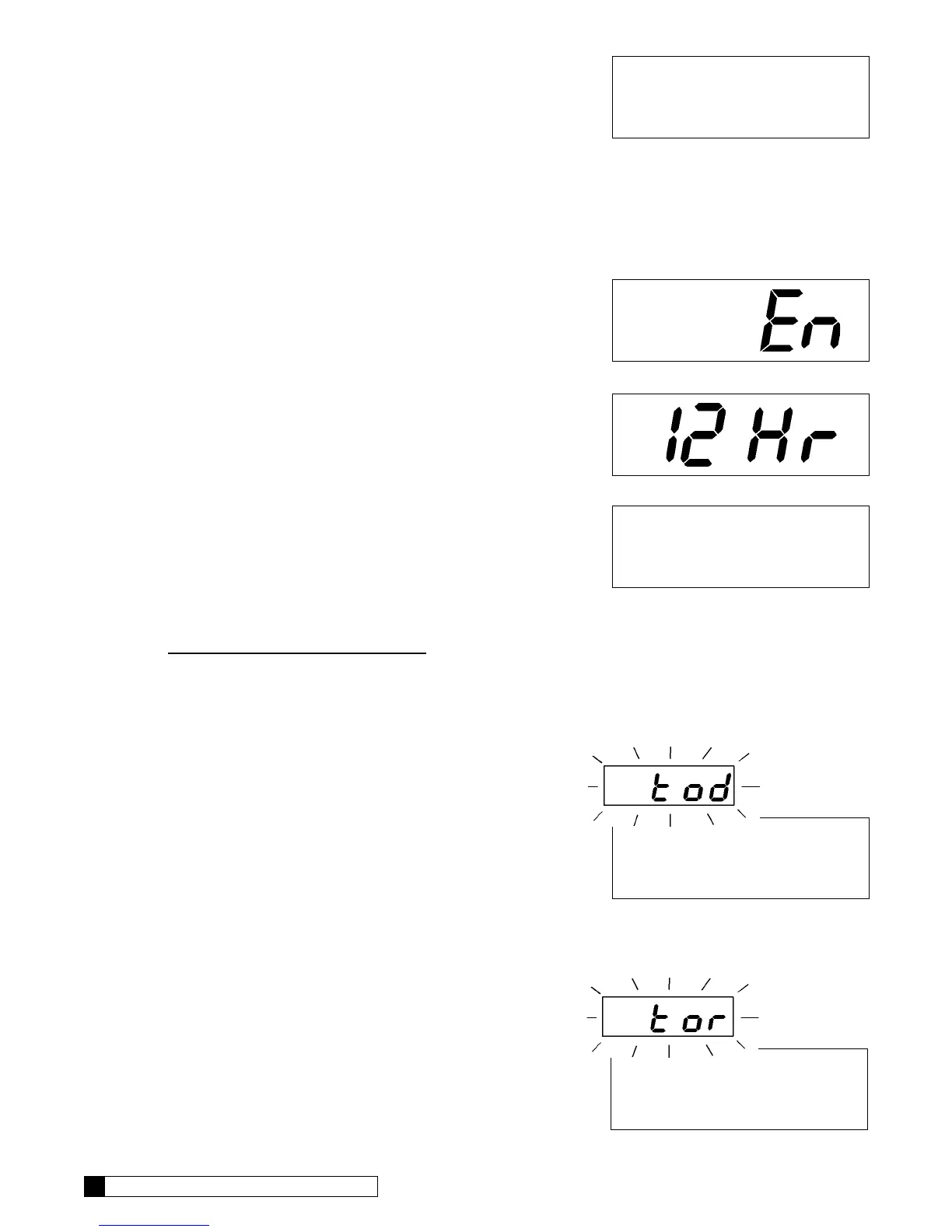

Press the “STATUS” key. The display will blink “dIP5” for 3
seconds and then show the current status. Toggle between
“En” (English units) and “MET” (Metric units) with the “+” or
“-” key.
6. 12 or 24 Hour Clock
Press the “STATUS” key. The display will blink “dIP6” for 3
seconds and then show the current status. Toggle between
“12 Hr” (12 hour clock) and “24 Hr” (24 hour clock) with the “+”
or “-” key.
7. 3/4" or 1" Meter
Press the “STATUS” key. The display will blink “dIP7” for 3
seconds.
Do not change setting from “3-4”
Note: The 3/4" meter setting is to be used with the Medallist
Series softener. The 1" meter setting is for future models.
3-4
Step 1 – Programming Time of Day
Press the “STATUS” key.
The display will blink “tod” for 3 seconds and then change to time
of day with the “minutes” digits blinking.
Adjust the “minutes” digits with the “+” or “-” keys.
Press the “REGEN” key to blink the “hours” digits.
Adjust the “hours” digits with the “+” or “-” keys.
Press the “REGEN” key to cycle back to “minutes”
Note: The “hours” setting scrolls through 1-12 AM and 1-12 PM.
Make sure the proper AM or PM indicator is shown when setting
the time.
Step 2 – Programming Regeneration Time
Press the “Status” key after setting the time of day.
The display will blink “tor” for 3 seconds and then change to the
time setting with the “ones” digit blinking.
Adjust regeneration time as time of day above.
Note: This option will not show if the “dIP 2” option is set to im-
mediate.
12:00
PM
2:00
AM
