PROGRAMMING 13
10
Step 3 – Programming Salt Dosage
Press the “Status” key after programming regeneration time.

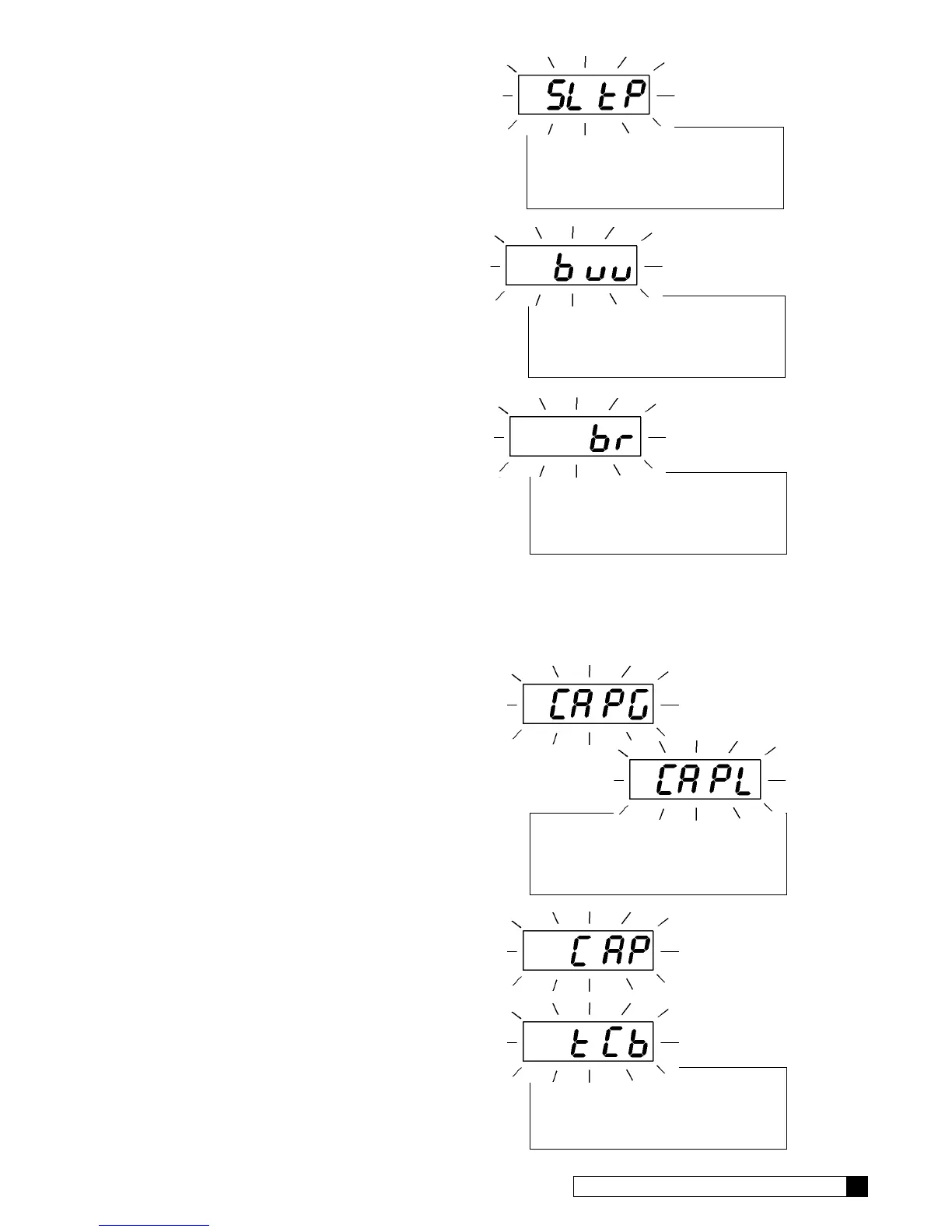

The display will blink “SLtP” if set to English or “SLtG” if set to
Metric for 3 seconds and then display the salt dosage.
Adjust the setting with the “+” or “-” key (3-24 lbs.)(1-10 kgs.)
Note: This option will not show if the control is set to Filter mode.
Step 4 – Programming Backwash Time
Press the “Status” key after programming salt dosage.
The display will blink “bw” for 3 seconds and then display the back-
wash time in minutes.
Adjust the setting with “+” or “-” key. (1-40 minutes)
Step 5 – Programming Brine Draw/Slow Rinse Time
Press the “Status” key after programming the backwash time.
The display will blink “br” for 3 seconds and then display the brine
draw/slow rinse time in minutes.
Adjust the setting with the “+” or “-” key. (35-99 minutes). See Table
5 for suggested brine draw/slow rinse times.
Note: This option will not show if the control is set to Filter mode.
Step 6 – Programming Gallons (Liters) or Days to Regeneration
Meter Mode —
Press the “Status” key after programming the brine draw/slow rinse
time.
The display will blink “CAPG” (“CAPL”) for 3 seconds and then
display the gallons or liters set point.
Adjust the setting with the “+” or “-” key. (10-9990 Gallons)
(40-37000 Liters)
Note: The programmed value must be multiplied by 10 to obtain the
actual setting. For example, if 87 is shown in the display, the control
will regenerate after 870 gallons have passed through the meter.
Timeclock Mode —
Press the “Status” key after programming the brine draw/slow rinse
time.
The display will blink “CAP” for 3 seconds and then display the
number of days between regenerations.
Adjust the setting with the “+” or “-” key. (1-42 days)
Step 7 – Programming Time Clock Backup
Press the “Status” key after programming the capacity.
The display will blink “tCb” for 3 seconds and then display the
backup number of days between regenerations.
Adjust the setting with the “+” or “-” key. (1-42 days)
Note: This option will only show if a meter is plugged into the control
and the timeclock backup option is turned on.
7 1
87
28
10
OR
