Culligan MEDALLIST SERIES Service Manual

14 CULLIGAN MEDALLIST SERIES
™

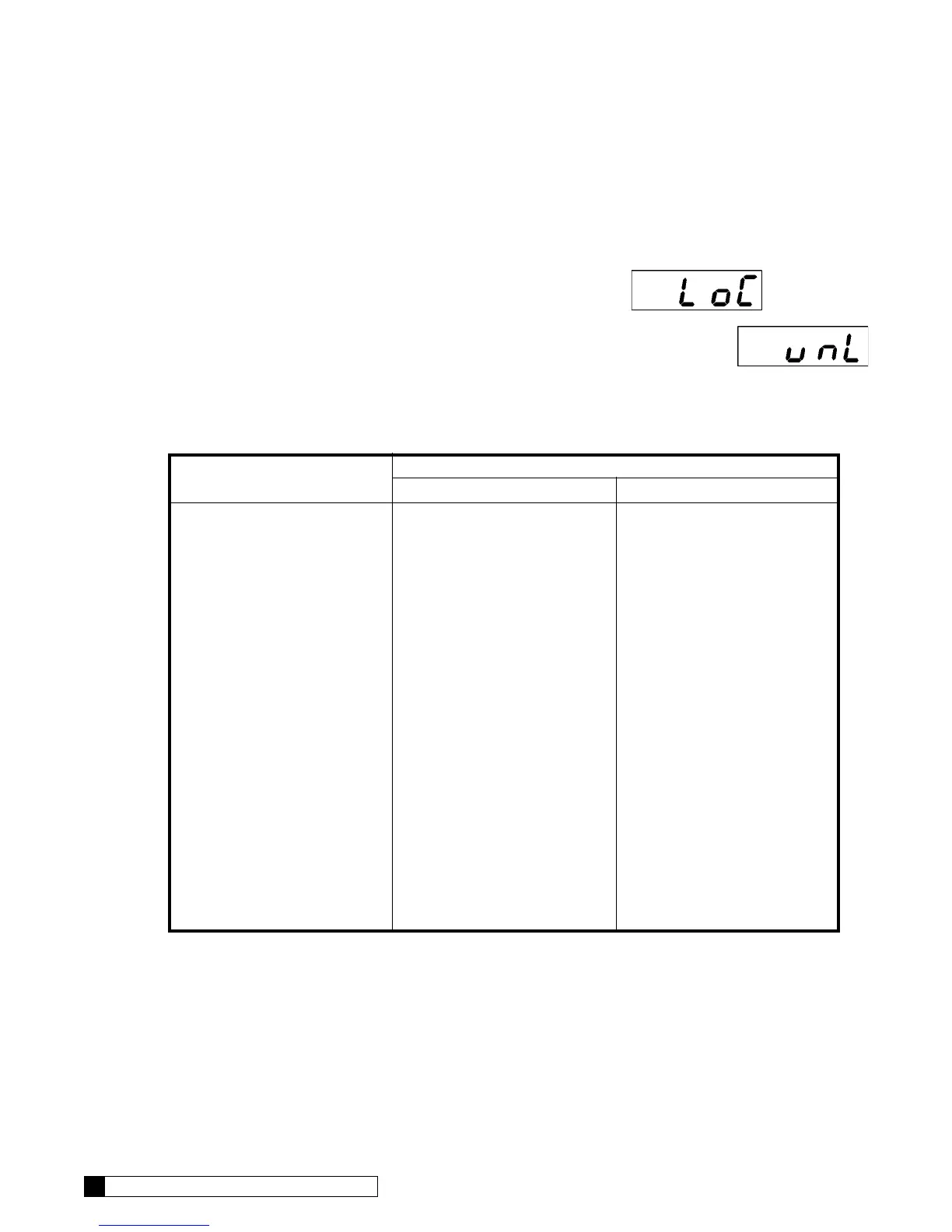

TABLE 6 - Suggested Brine Draw/Slow Rinse Times
BrineDraw/SlowRinseTime(Minutes)
 SaltDosage 8"Tank  10"Tank
3 53 —
4 55 —
5 57 40
6 59 42
7 62 44
8 65 46
9 68 48
10 71 50
11 74 52
12 76 53
13 78 55
14 80 56
15 82 58
16 — 59
17 — 61
18 — 62
19 — 64
20 — 65
21 — 67
22 — 68
23 — 70
24 — 71
Note: Values are for 50 psi pressure. Minutes should be adjusted for lower and higher pressures to
ensure that the brine is fully rinsed out.
Exiting Program Mode
From Step 6 (or step 7 if it is active) press the “Status” key.
The display will go blank.
Press the “Status” key again to exit programming.
Note: The control will exit the programming mode if no key press activ-
ity takes place within one minute.
Locking the Programmed Menu
Press and hold the “+” key for 3 seconds while in the service mode.
The display will show the status of the lock feature. (“LoC” or “unL”)
Adjust with the “+” or “-“ key.
Press the “STATUS” key to return to the service mode.
Note: While the programmed menu is locked (“LoC”) all of the pro-
gramming menu items will display, however only the time of day and
time of regeneration can be changed.
Note: If programming times out, values will not be saved. The “Status”
key must be pressed to save values.

Culligan MEDALLIST SERIES Specifications

General

Type	Water Softener
Flow Rate	Up to 12 gallons per minute
Resin Type	High-capacity resin
Dimensions	Varies by model
Weight	Varies by model
Tank Material	Fiberglass
