8. Wiring Diagrams

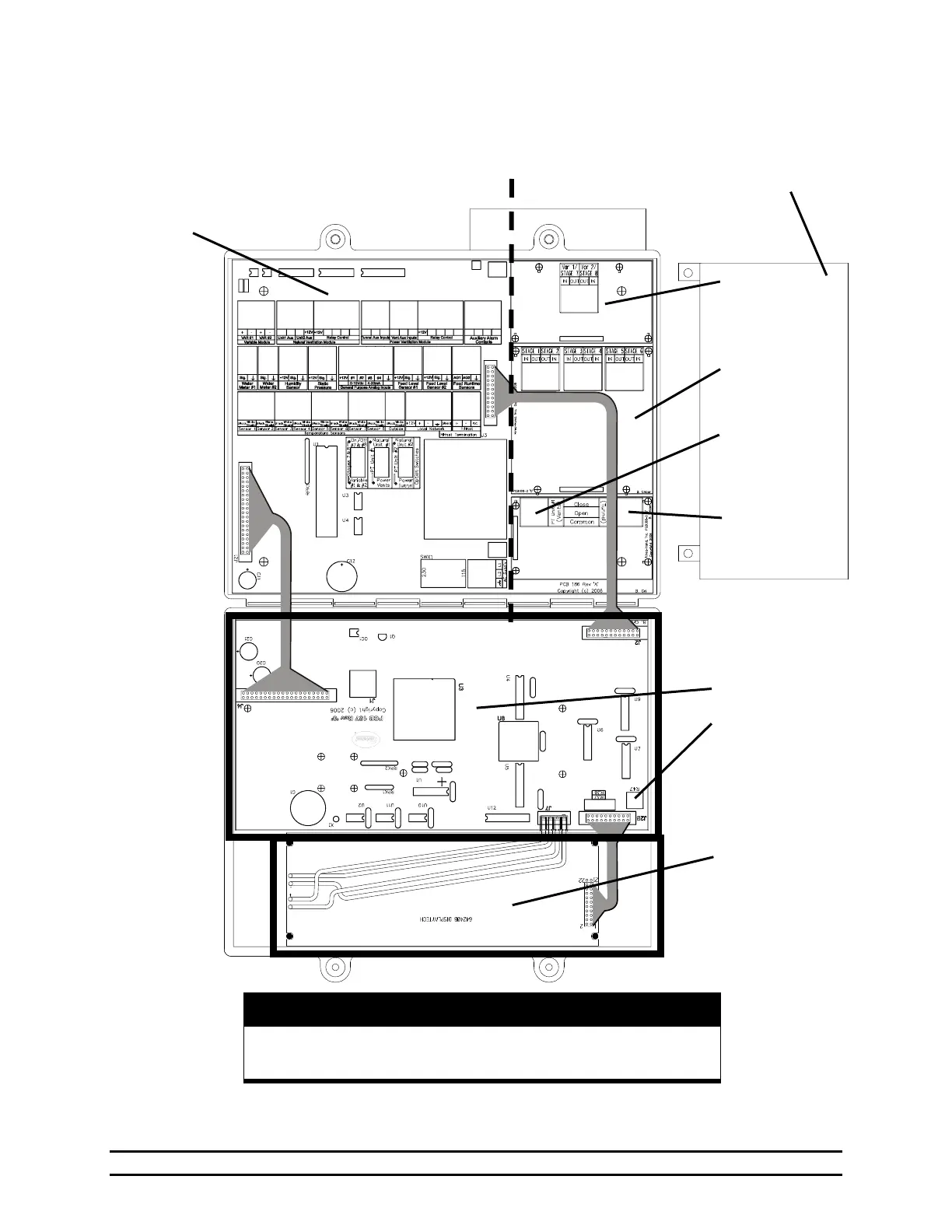

8.1 Inside the Evolution 1200 Enclosure
WARNING!
Keep All Low Voltage Wires Such As Sensors, Network, &
Backup, Curtain Aux Switches Separate From AC Wires!
Bottom View of Enclosure
Inside Cover View of Front Panel
PCB 186
PCB 188-3
Ventilation Inlets
Relays & Connections
or Natural Unit #1
(Refer to Section 8.2).
PCB 187
Main Display
LOW
VOLTAGE
WIRES
HIGH
VOLTAGE
WIRES
PCB 188-1
Stage 7&8 or
Variable 1&2 Output
Connections (Refer to
Section 8.2).
PCB 188-2
Stages 1-6 Stage
Relays & Output
Connections
PCB 188-3
Tunnel Inlets Relays
& Connections or
Natural Unit #2
(Refer to Section 8.2).
HIGH VOLTAGE
Electrical Shield
(Removed for Clarity)
Main Display
Contrast Control
(Refer to Section 5.3).
