Cumberland Evolution 1200 Series - Connecting Water Meter to Evolution 1200

Part No. 4801-5331 Rev 2-2015 Evolution 1200 47 of 65
ABB
B
G
R
4
3
2
1
0
9
8
7
6
5
Sig. GND
Water
ABB
B
G
R
4
3
2
1
0
9
8
7
6
5
Sig. GND
Water

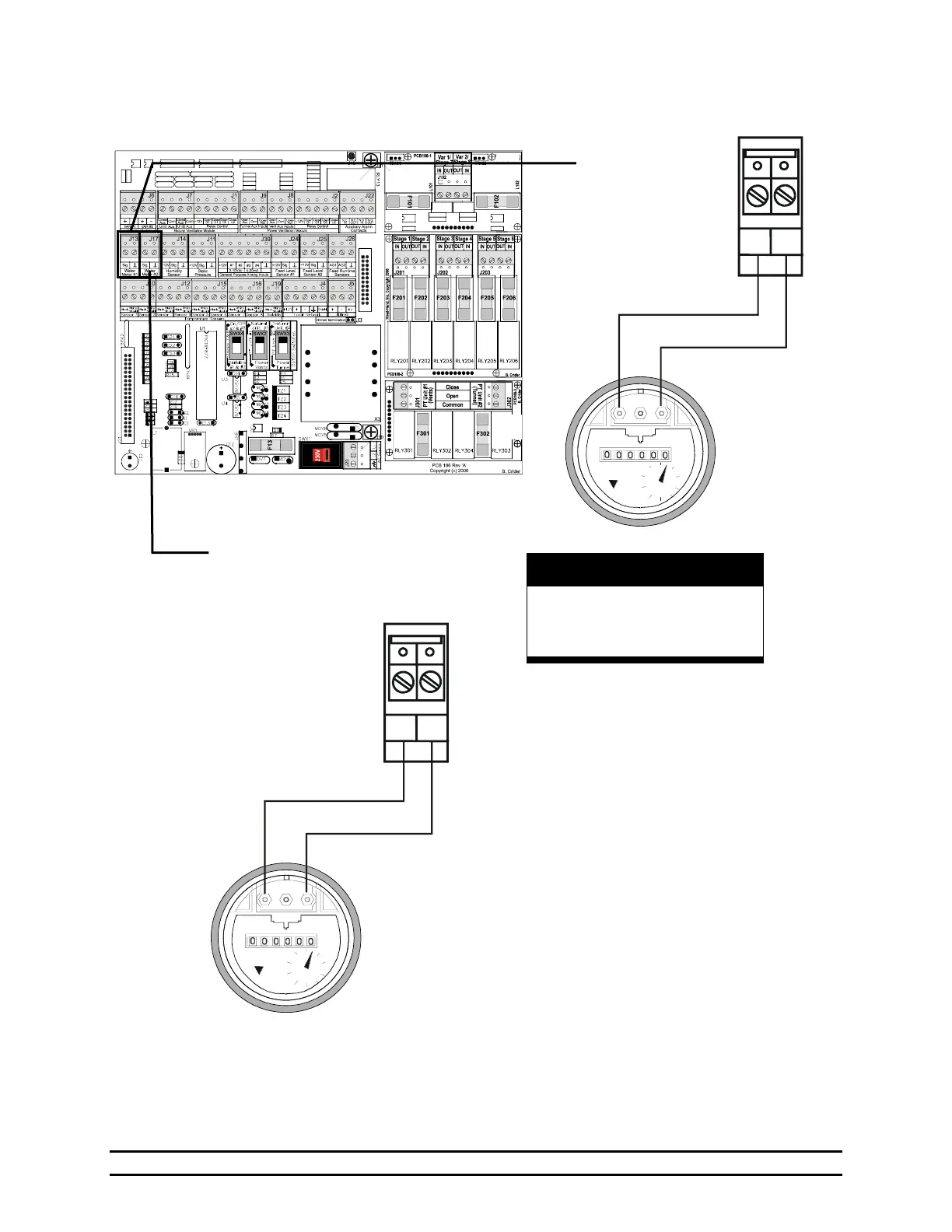

8.8 Connecting Water Meter to Evolution 1200
Inset A
Water
Meter #1
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
Inset B
Water
Meter #2
PCB 186
Inset A
Inset B
