Cumberland Evolution 1200 Series - Connecting the Powertrak to the Evolution 1200

Part No. 4801-5331 Rev 2-2015 Evolution 1200 48 of 65
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NEUT.
LOWER
GND.
HOT
OUT
CLOSE
IN
OPEN
IN
COM
UPPER

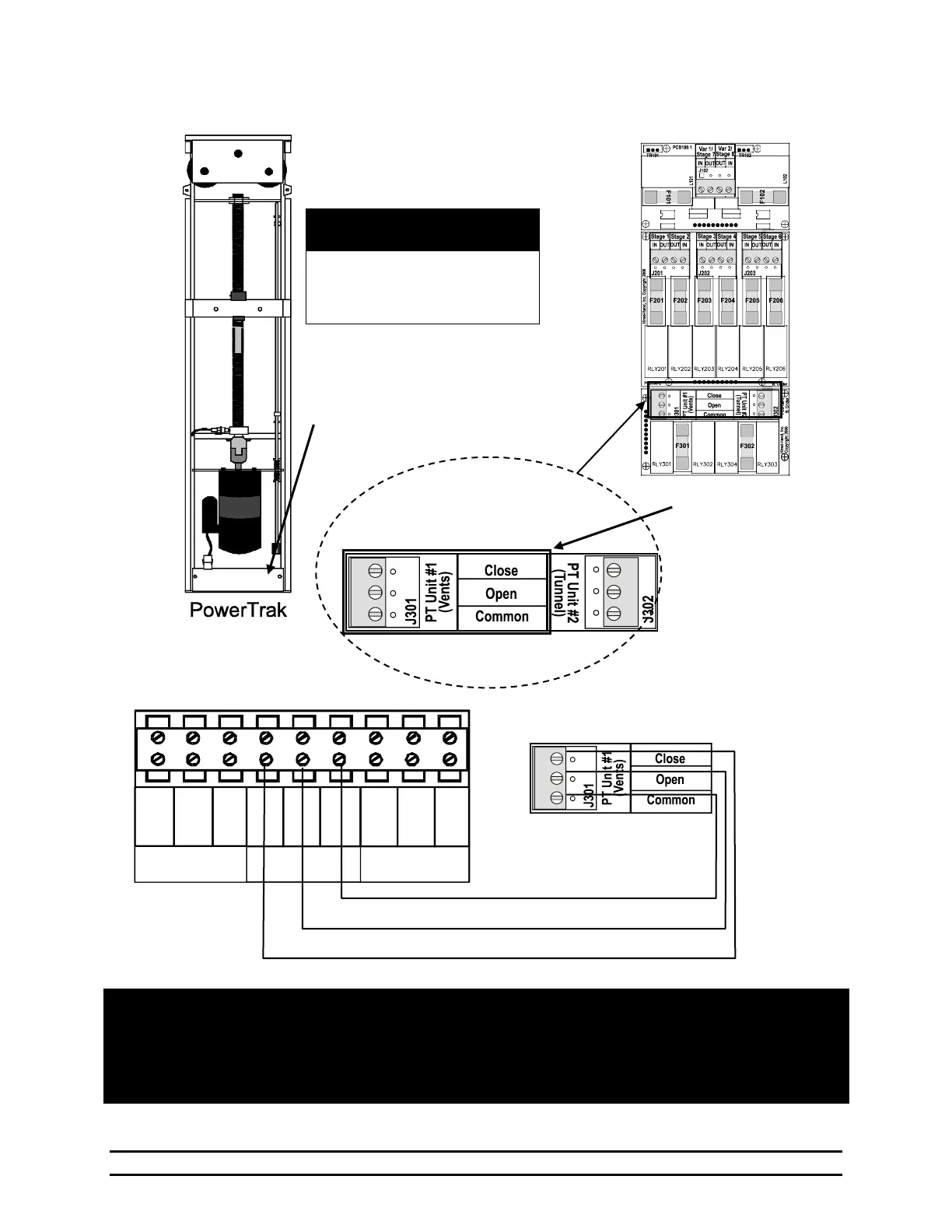

8.9 Connecting the PowerTrak to the Evolution 1200
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected to "OPEN" and "CLOSE"
terminals.
NOTE: Only 1 Power Trak can be connected to each Power Trak outlet. If Additional Power Traks are needed,
Then use of relay boxes is necessary to separate the load.
NOTE: All PowerTrak units will connect the same.
Inset A
Unit #1 Vents
Inset B
Inset B
Inset A
PCB – 188 Power Ventilation
WARNING!
Keep High Voltage (Or AC)
Separate From Low Voltage
Wires!
PCB 188
Open
Close
Com
