Cumberland Evolution 1200 Series - Connecting Local Network & Backup to the Evolution 1200

Part No. 4801-5331 Rev 2-2015 Evolution 1200 54 of 65

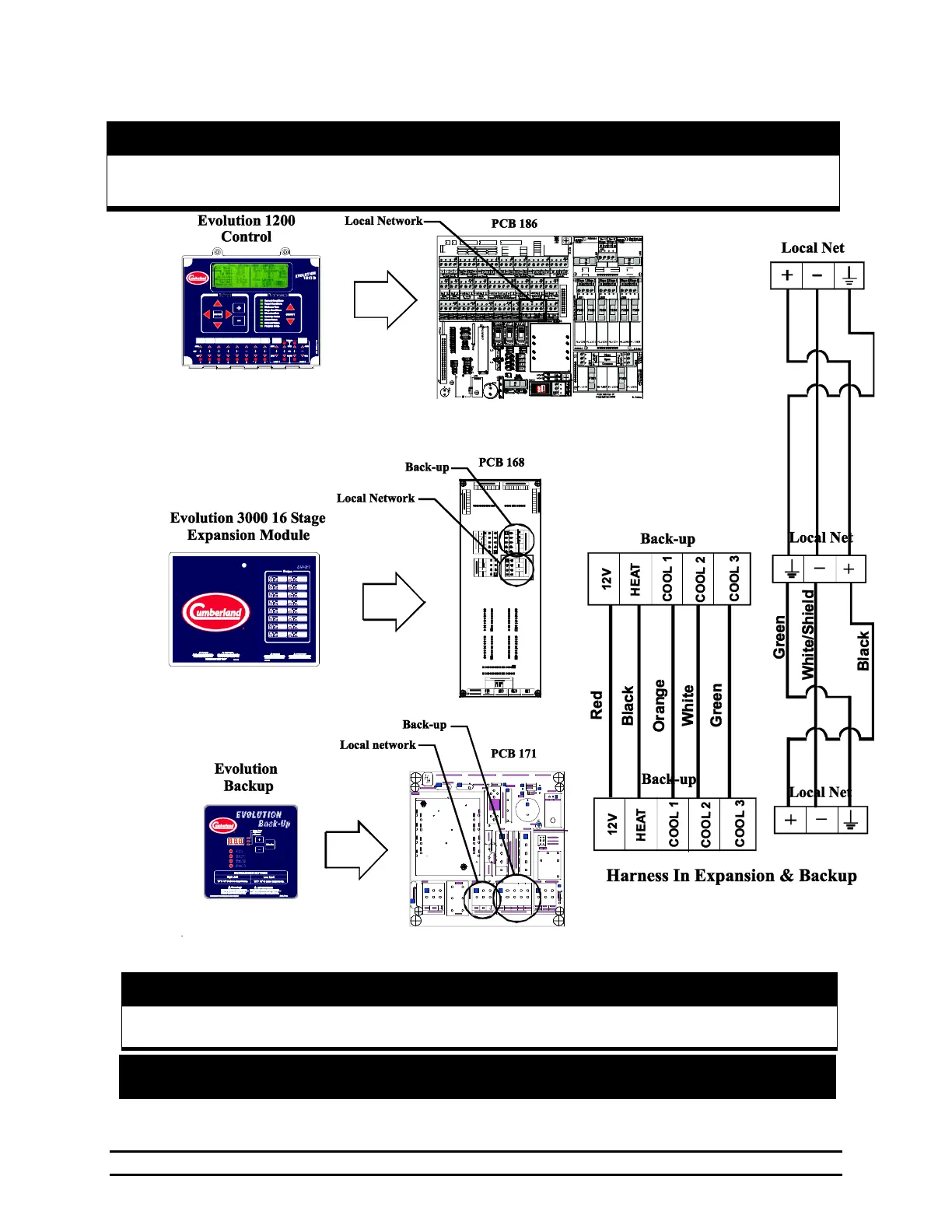

8.15 Connecting Local Network & Backup to the Evolution 1200
NOTE: Harness to connect Local Network and Back-up together are connected &
included in the Back-up and 16 Stage Expansion units.
Warning!
Tape Shield To Prevent Damage!
WARNING!
LOW VOLTAGE!
Keep Low Voltage Wires Separate From High Voltage Wires
