Cumberland Evolution 1200 Series - Connecting the Powertrak Power Auxiliary Switches to Evolution 1200

Part No. 4801-5331 Rev 2-2015 Evolution 1200 50 of 65

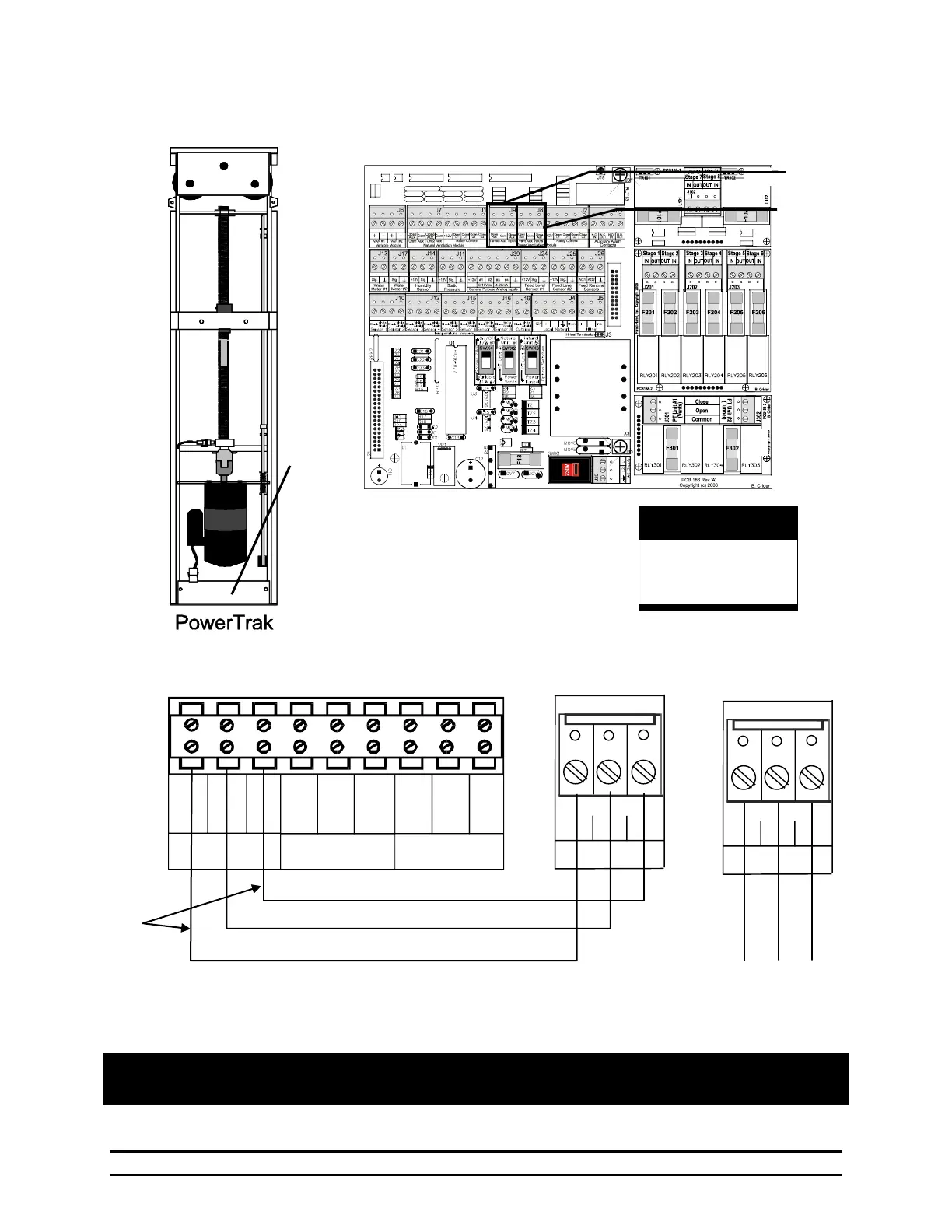

8.11 Connecting the PowerTrak Power Auxiliary Switches to Evolution 1200
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NEUT.
LOWER
GND.
HOT
OUT
CLOSE
IN
OPEN
IN
COM
UPPER
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected to
“Upper” and “Lower” terminals.
Tunnel Aux. Input
Open
AUX
Close
AUX
Com
Inset A
Tunnel Auxiliary
Input
See Note
below
Inset C
Inset C
Vent Aux. Input
Open
AUX
Close
AUX
Com
Inset B
Vent Auxiliary
Input
NOTE: Vent auxiliary
connects the same as
tunnel auxiliary.
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
PCB 186
Inset A
Inset B
